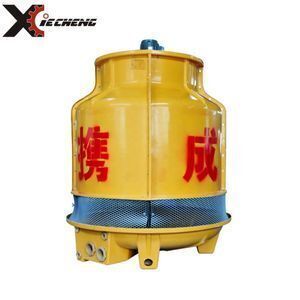

Closed Circuit Loop Type Industrial small cooling tower

Supplier: Jiangmen Xiecheng Machinery Co.,Ltd.
Region: Guangdong, China
Contact: Ms Amy Zhau
Price: $999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Flow:	counter;	Usage:	mould cooling;
Material:	fiberglass;	Voltage:	380v/50hz/3p;
Radiating fin:	PVC/PP material;	Cooling Type:	Cross Flow;
Weight:	67kg;	Port:	Jiangmen/shenzhen/guangzhou;
Dimension(LWH):	1195*1595mm;	Packaging Detail:	no package;
Certification:	ISO;	Supply Ability:	500 Set/Sets per Month;
Condition:	New;	Brand Name:	Xiecheng;
Material:	FRP;	name:	cooling tower;
Power(W):	560;	Motor:	double pole;
Warranty:	1year;	Lifetime:	more than 5 years;
Warranty:	1 year;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
After-sales Service Provided:	Overseas third-party support available;	After-sales Service Provided:	Video technical support,Online support;
Applicable Industries:	Machinery Repair Shops;	Place of Origin:	Guangdong China;

Closed Circuit Loop Type Industrial small cooling tower

FEATURE

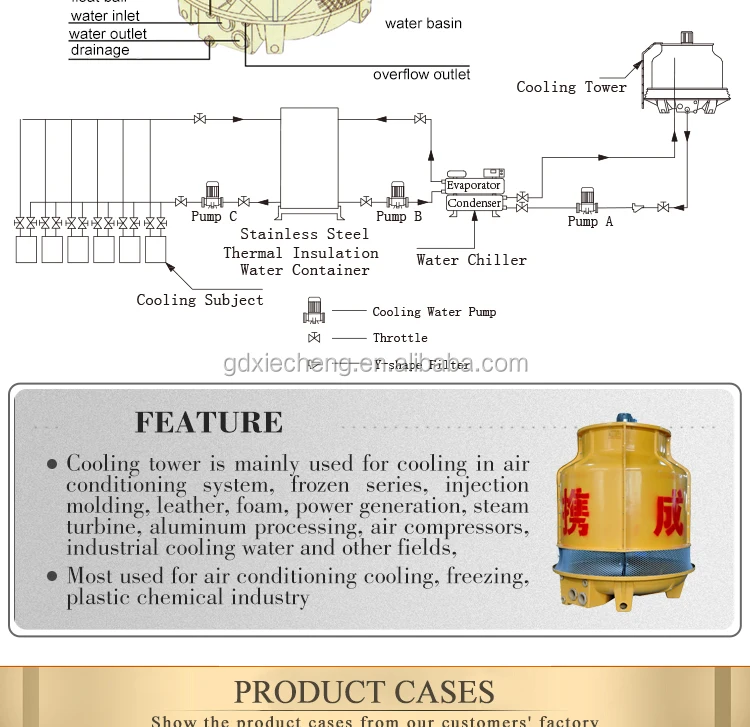

1,Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields;

2,most used for air conditioning cooling, freezing, plastic chemical industry;

3, Closed circuit cooling tower have Attractive shape: Small dimension of shape, low height of tower, light weight of tower, and multiform layout in covering area.

WORKING PRINCIPLE

1,Working fluid (water, oil o other liquid) flowing inside of the coils, which is enwrapped by spray water on the outside. The heat of water is transferred by coil and become the saturated vapor when meet the water and air.

2, the heat is exhausted out of the tower by the tower by the top fan; water is collected back to the bottom tank and circulates continuously. The spray water is cooled down via PVC radiation fin in the process of circulation, and flow is the same direction with the fresh wind. The coil mainly takes sensible heat travel style.

3, the most benefit of this style is can avoid scale formation on the outside of the coil. And this will apply especially to dealing with high temperature fluid (e.g. 60°C) or the fluid need big temperature difference (e.g. 60°C to 32°C).

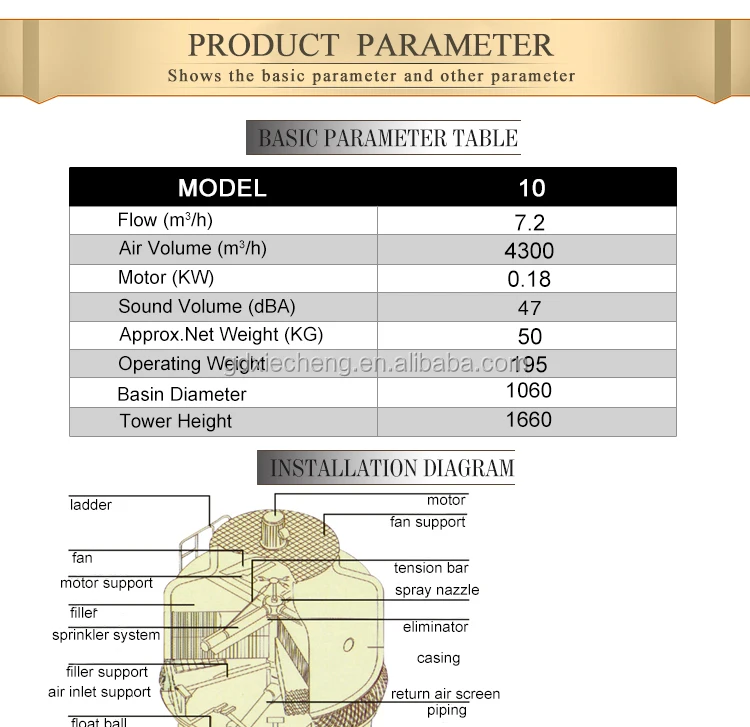

Model	Flow rate	Blowing rate	Motor	Noise	Net weight	Operating weight	Diameter	Height
XC-ST8	6.23	70	0.18	45.5	42	180	945	1385
XC-ST10	7.81	85	0.18	47	46	190	945	1535
XC-ST15	11.7	140	0.37	48	54	290	1195	1420
XC-ST20	15.6	160	0.56	50	67	300	1195	1595
XC-ST25	19.5	200	0.75	52	98	500	1400	1825
XC-ST30	23.4	230	0.75	54	116	530	1650	1710
XC-ST40	31.2	280	1.5	56.5	130	550	1650	1780
XC-ST50	39.2	330	1.5	57.5	190	975	1830	1840
XC-ST60	46.8	420	1.5	57	240	1250	2100	1960
XC-ST80	62.6	450	1.5	59	260	1280	2100	2040
XC-ST100	78.1	700	2.25	60	500	1600	2900	2375
XC-ST125	97.6	830	2.25	60	540	1640	2900	2555
XC-ST150	117	950	2.25	60	580	1680	2900	2555
XC-ST175	137	1150	3.75	60	810	1910	3310	3165
XC-ST200	156	1250	3.75	60	830	1930	3310	3165
