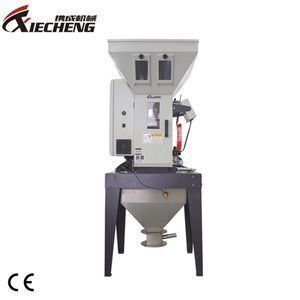

plastic resin & additives automatic gravimetric dosing blenders mixer machine

Supplier: Jiangmen Xiecheng Machinery Co.,Ltd.
Region: Guangdong, China
Contact: Ms Amy Zhau
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	300 Set/Sets per Month;	Certification:	CE;
Applicable Industries:	Manufacturing Plant;	Warranty:	1 year;
compress air:	5-6kg/Square centimetre;	After-sales Service Provided:	Online support,Video technical support;
After-sales Service Provided:	Overseas third-party support available;	hopper group number:	4 set;
Condition:	New;	Power(W):	200;
Place of Origin:	Guangdong China;	Port:	jiangmen /shenzhen/guangzhou;
Maximum batch quantity:	1.5kg;	Local Service Location:	Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Malaysia,Uzbekistan;
Voltage:	230V50Hz 1Phase;	Showroom Location:	Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Uzbekistan,Malaysia;
Dimension(LWH):	customized;	Packaging Detail:	export wooden case package;
After Warranty Service:	Video technical support,Online support;	Weight (KG):	100 KG;
Brand Name:	XIECHENG;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Production Capacity:	80kg/hr;	Automatic Grade:	Automatic;
knife metering quanity:	4 piece;	Application:	plastic raw mixing;
screw metering quantity:	customized;	Weight:	customized;

Industrial blender gravimetric blender

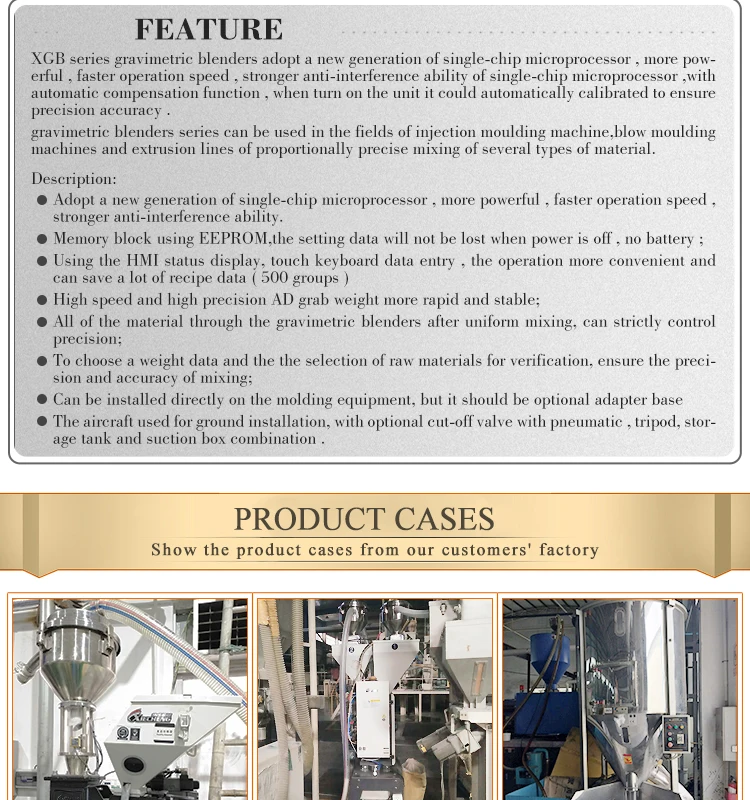

XGB series gravimetric blenders adopt a new generation of single-chip microprocessor , more powerful , faster operation speed , stronger anti-interference ability of single-chip microprocessor ,with automatic compensation function , when turn on the unit it could automatically calibrated to ensure precision accuracy .
gravimetric blenders series can be used in the fields of injection moulding machine,blow moulding machines and extrusion lines of proportionally precise mixing of several types of material.

Description:

1, adopt a new generation of single-chip microprocessor , more powerful , faster operation speed , stronger anti-interference ability.

2, Memory block using EEPROM,the setting data will not be lost when power is off , no battery ;

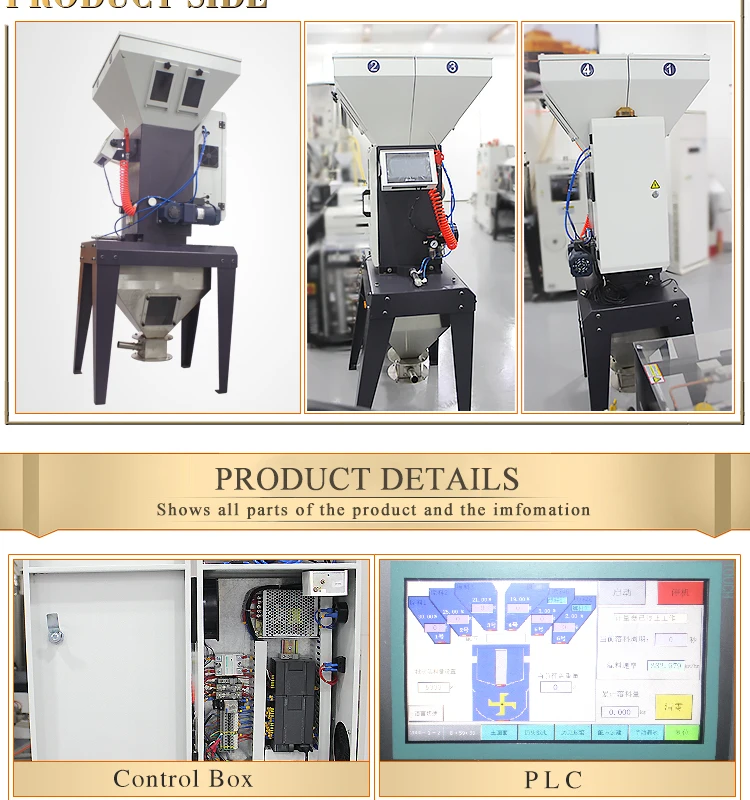

3,Using the HMI status display, touch keyboard data entry , the operation more convenient and can save a lot of recipe data ( 500 groups )

4,High speed and high precision AD grab weight more rapid and stable;

5,All of the material through the gravimetric blenders after uniform mixing, can strictly control precision;

6,To choose a weight data and the the selection of raw materials for verification, ensure the precision and accuracy of mixing;

7,Can be installed directly on the molding equipment, but it should be optional adapter base

8,The aircraft used for ground installation, with optional cut-off valve with pneumatic , tripod, storage tank and suction box combination .

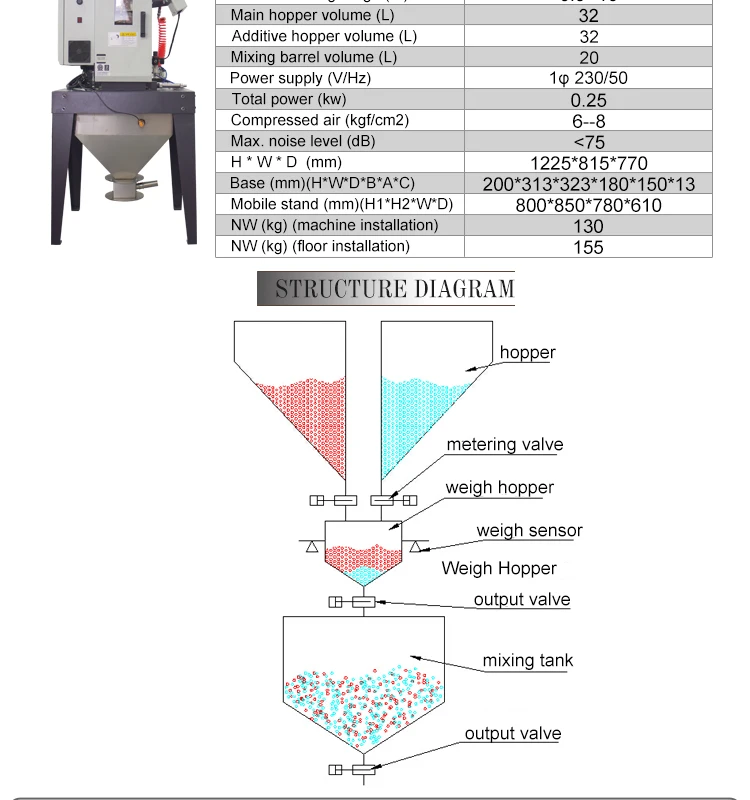

Model	XGB-40-													XGB-80-
	4	4-1R	4-2R	4-3R	3		3-1R	3-2R	2		2-1R	4			4-1R	4-2R	4-3R	3		3-1R	3-2R	2		2-1R
Group number	4					3				2			4						3				2
Knife metering quantity	4	3	2	1	3		2	1	2		1	4			3	2	1	3		2	1	2		1
Screw metering quantity	–	3	2	1	–		2	1	–		1	–			3	2	1	–		2	1	–		1
Maxmum batch quantity (kg)	0.6													1.5
Compress Air (kg/m²)	5–6													5–6
Mixing motor power (kw)	0.09													0.2
Maximum output (kg/hr)	40	40	35	30	50		50	45	60		55	80			80	65	50	90		90	70	140		120
Machine voltage specification	1,230V,50H
