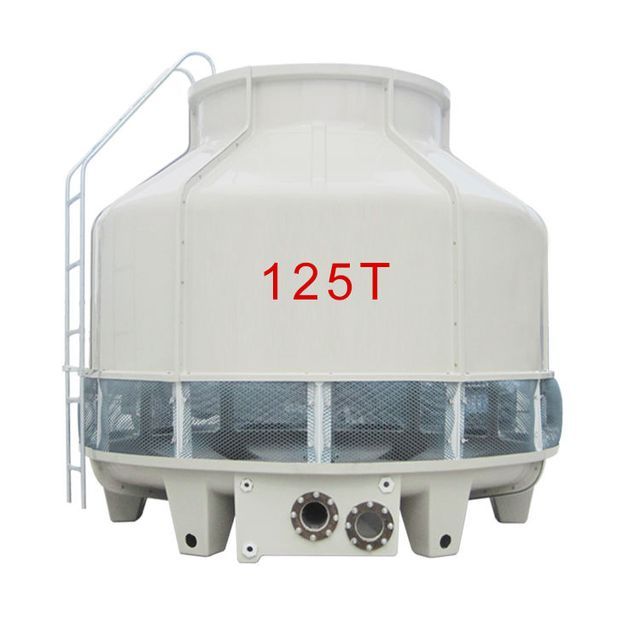

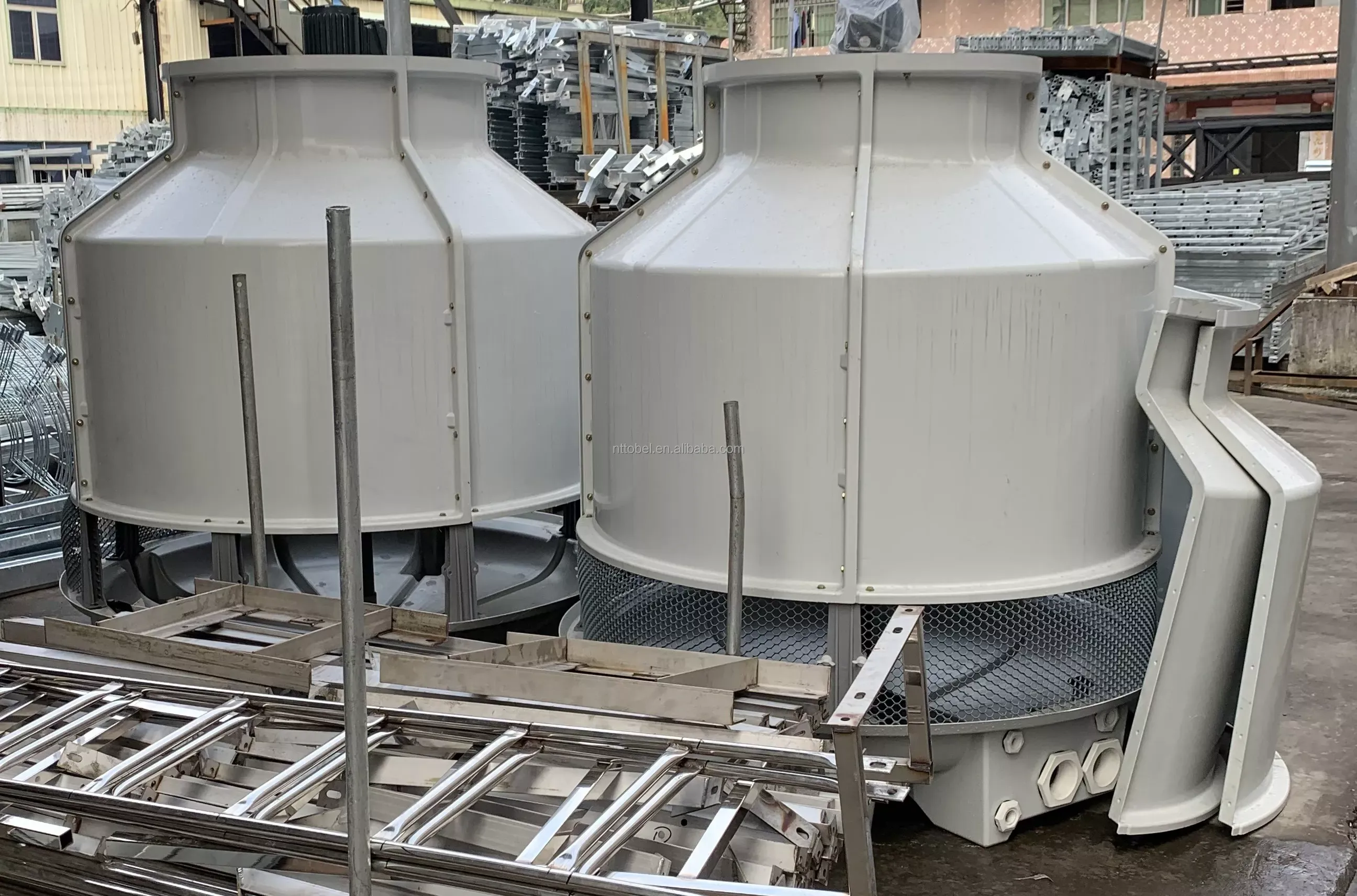

125 tons open cooling tower heat exchange facility

Click here to contact

Product details

Voltage:	380V/50Hz/three-phase	weight:	725 kg
Showroom location:	not any	Applicable industries:	Clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage plants, farms, construction, energy and mining
port:	Shanghai Port	brand:	Tobel
Core components:	Engines, bearings, motors, pressure vessels, gears, pumps	Video outbound inspection:	if
Supply capacity:	1000 sets per month	Material:	FRP
Marketing Type:	normal product	Mechanical test report:	if
Health status:	new	strength:	2.2 kW
water flow:	97.5 cubic meters per hour	payment terms:	L/C, T/T
Core component warranty:	1 year	Cooling type:	countercurrent

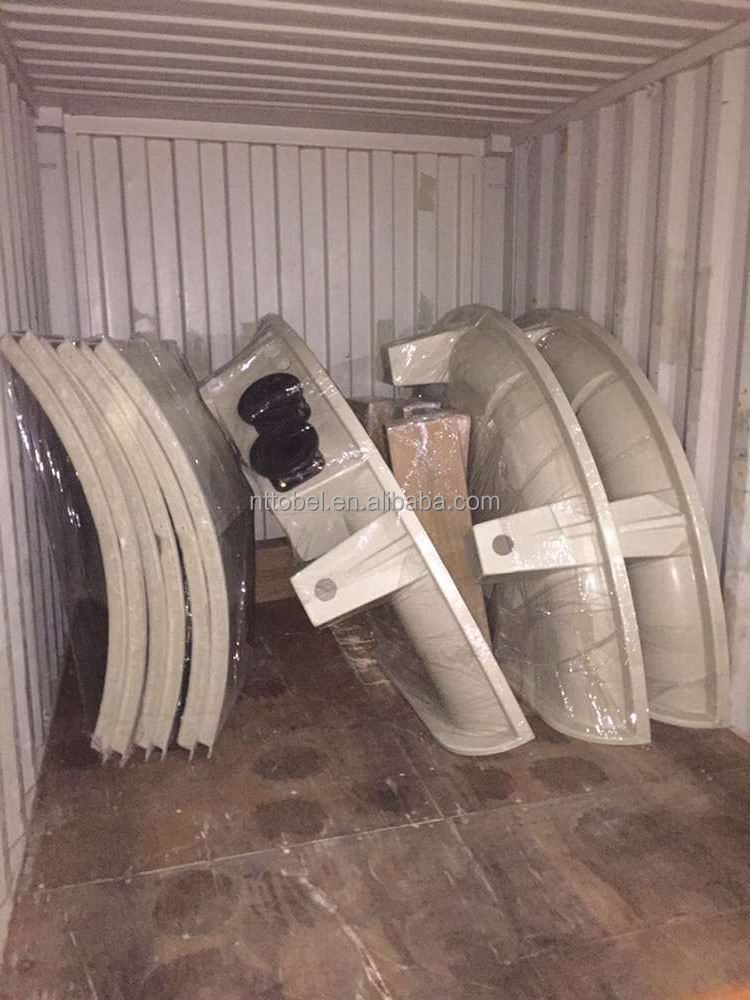

Packaging Details:	Carton or plywood.	Name:	125TON cooling tower
Dimensions (LWH):	2910X2910X2960	Origin:	Jiangsu, China
Main selling points:	heat exchange facility	Warranty:	1 year, 1 year
Certification:	ISO9001	After-sales service provided:	Does not provide overseas services

Product Description

Specification

Model	Water flow(m3/h)	height (mm)	Diameter (mm)	head loss (kPa)	air flow (coordinate measuring machine)	Motor power (KW)
TBL-8T	6.23	1380	Chapter 945	13	70	0.18
TBL-10T	7.81	1530	Chapter 945	13	85	0.18
TBL15T	11.7	1415	1195	13	140	0.37
TBL-20T	15.62	1590	1195	14	160	0.55
TBL-25T	19.51	1820	1400	16	200	0.75
TBL-30T	23.4	1705	1650	16	230	0.75
TBL-40T	31.21	Chapter 1775	1650	16	280	1.5
TBL-50T	39.2	1835	1830	number 17	330	1.5
TBL-60T	46.8	1955	2145	number 17	Chapter 420	1.5
TBL-80T	62.5	2035	2145	18	450	1.5
TBL-100T	78.1	2370	2900	twenty one	700	2.2
TBL-125T	97.5	2555	2900	twenty three	Chapter 830	2.2
TBL-150T	117	2555	2900	twenty three	950	2.2
TBL-175T	136.8	2850	3110	30	150	4
TBL-200T	156.22	2850	3110	30	1250	4
TBL-225T	175.5	3580	3110	33	1500	5.5
TBL-250T	195	3580	4120	33	1750	5.5
TBL-300T	234	3680	4730	34	2000	7.5
TBL-350T	273.2	3680	4730	34	2200	7.5
TBL-400T	312.1	3840	5600	36	2400	11
TBL-500T	392.4	3840	5600	36	2600	15
