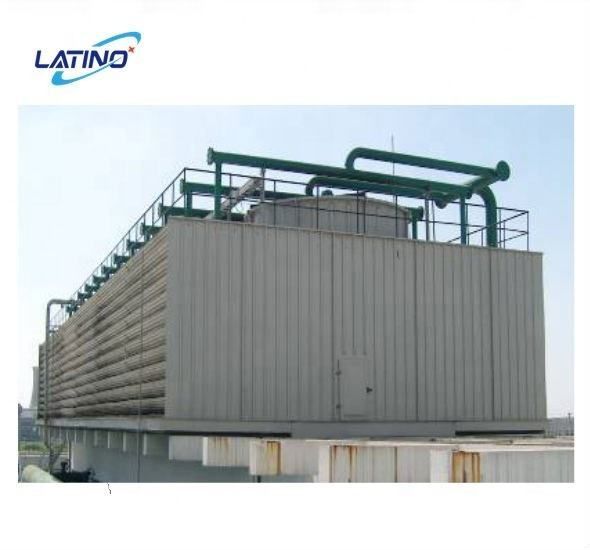

FRP/steel structure square cooling tower

Supplier: Tianjin Latino Environmental Technology Co., Ltd.
Region: Tianjin, China
Contact: Mr LATINO FENG
Price: $9500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

delivery time:	15-20 working days	maintain:	Ladder + access door
Health status:	new	Package preview:
product material:	fiberglass	Video outbound inspection:	if
Post-warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Applicable industries:	Hotels, clothing stores, building materials stores, machinery repair shops, food and beverage factories, farms, home use, food stores, print shops, construction engineering, energy and mining
Material:	Metal	Local service locations:	not any
pack:	tray	Warranty:	1 year
Sales unit:	Single product	Marketing type:	normal product
Core component warranty:	1 year	Core components:	PLC
Showroom location:	not any	Cooling type:	Cross flow/counter flow
Packaging details:	Carton + wooden pallet	Single piece packaging size:	50X50X50 cm
Certification:	International Organization for Standardization	Main selling points:	Sustainable
After-sales service provided:	Free spare parts, video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, online support	Mechanical test report:	if
Key words:	Cooling Tower	Place of origin:	China
Gross weight of single piece:	3.000kg	Payment:	wire transfer
product name:	FRP/steel structure square cooling tower

FRP/steel structure square cooling tower

FRP/steel structure square cooling towers are widely used in electric power, petroleum, chemical industry, fertilizer, smelting and other industries. The cooling water volume range is 800 m3/h - 4000 m3/h. According to the customer's requirements, we also provide high-temperature type and sewage type, and can be designed into different shapes to match the customer's on-site location.

01- Technical data sheet

Model	water flow	engine	aspect	Pump head	weight
LRCM-DD	M3/H	kilowatt	mm	MH20	Kilogram
100	100	3.7	200528802850	3.6	850
125	125	3.7	241031802850	3.6	1030
150	150	3.7	251033802850	3.6	1120
175	175	3.7	281033802850	3.6	1200
200	200	5.5	291041802950	3.6	1540
225	225	5.5	281054803000	3.6	1860
250	250	7.5	281054803400	4.0	2000
300	300	7.5	332060803800	4.4	2300
350	350	7.5	332060804600	5.2	2420
100C2	200	3.7*2	401028802850	3.6	1600
125C2	250	3.7*2	482031802850	3.6	1960
150C2	300	3.7*2	502033802850	3.6	2140
175C2	350	3.7*2	562033802950	3.6	2300
200C2	400	5.5*2	582041802950	3.6	2980
225C2	450	5.5*2	562054803000	3.6	3580
250C2	500	7.5*2	562054803400	4.0	3840
300C2	600	7.5*2	664060803800	4.4	4420
350C2	700	7.5*2	664060804600	5.2	4640

02-The limited value of water analysis

scope	Lotion	Recycled water	scope	Lotion	Recycled water
pH value	6-8	6-8	Chloric acid IOD (CL-)ppm	Below 50	Below 200
Conductivity	Below 200	Below 500	Sulfate ionppm	Below 50	Below 200
total hardness	Below 50	Below 200	Silicic acid ppm	Below 30	Below 50
Marcheness	Below 50	Below 100	Ferric iron (Fe) ppm	0.3 or less	Below 1.0

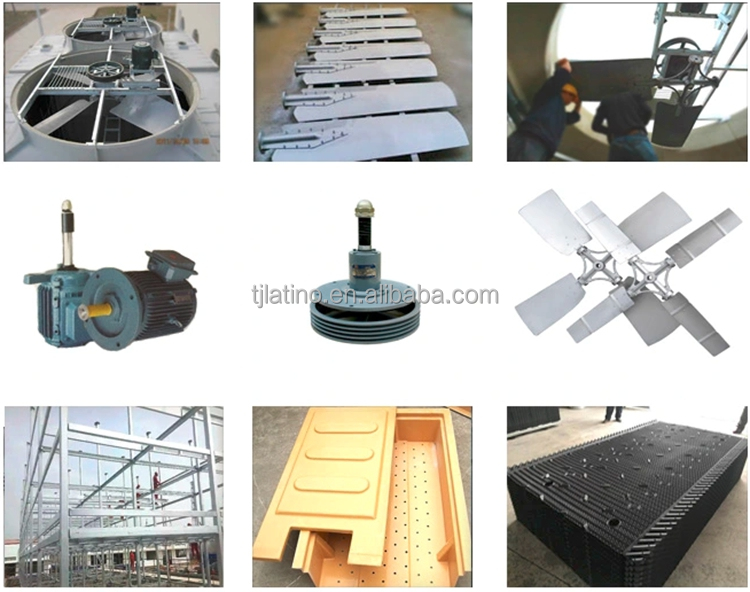

03-Cooling tower parts description

Enclosure and basin

Fiberglass reinforced polyester (FRP) is produced using water-resistant resin and high-quality fiberglass mat. With good moisturizing properties, high gel strength and high strength, the gel coat is sprayed on the FRP parts through a machine and thermoformed.

Fan and drive system

All cooling tower fans are balanced with adjustable pitch blades for smooth and quiet operation. Cooling tower fan materials are available in ABS, ordinary standard aluminum alloy, fiberglass or stainless steel. Small capacity cooling towers use direct drive low noise fans. Larger capacity fans are equipped with belt drive reducers or gearboxes.

water supply system

The high-coefficient rotating nozzle made of plastic or aluminum alloy can reduce the pressure lost by friction and evenly distribute water to achieve maximum thermal cooling performance.

cooling tower packing

Made of high-quality, performance-improved PVC material, it has high cooling efficiency, corrosion resistance, and meets UL V-0 standards. The filling surface of the cooling tower is corrugated to increase the spacing between the fillers to ensure that the fillers are not blocked and overcome water quality problems. Special materials can be selected when the inlet water temperature is high.

cooling tower frame

The cooling tower frame is made of hot-dip galvanized steel (HDGS) or fiberglass, making the cooling tower rust-free, sturdy and durable, and has a long service life.

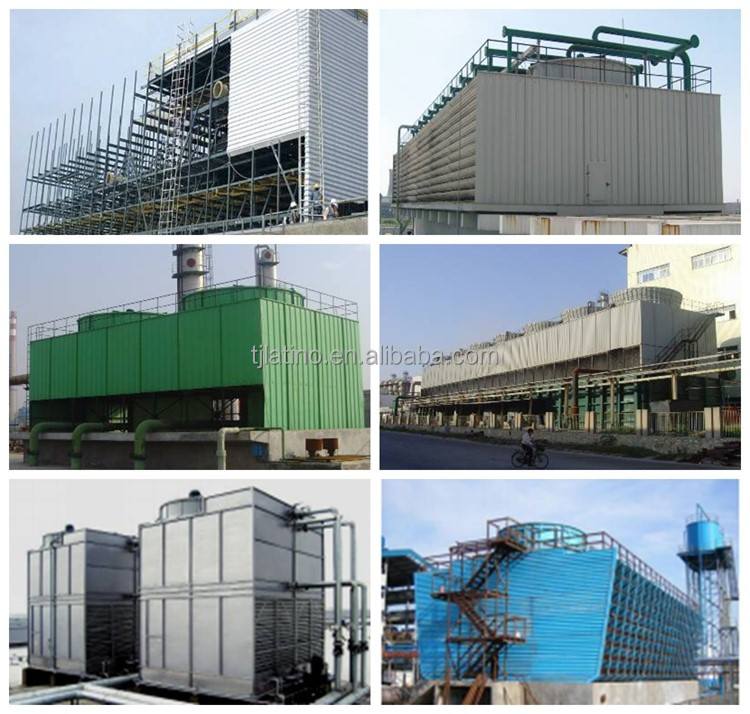

04-Product display

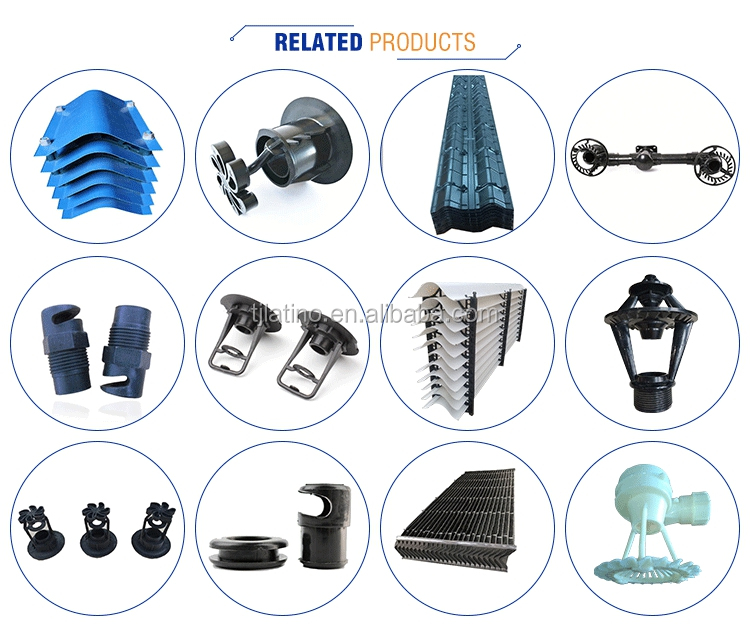

LATINO has an experienced quality and project implementation team to support the procurement activities of overseas customers; the company's main products are cooling tower components, such as film fillers, water eliminators and spray systems, UPVC distribution pipes, FPR winding splash-proof pipes, FRP Profile parts, fiberglass grilles, fan sets, belt clamps, etc.; our products have passed CTI certification and have their own patents.
