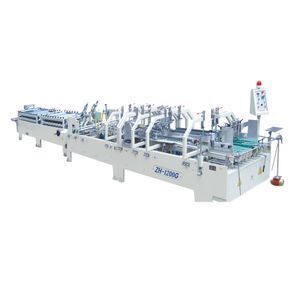

ZH-1100D Automatic Box Folding and Gluing Machine

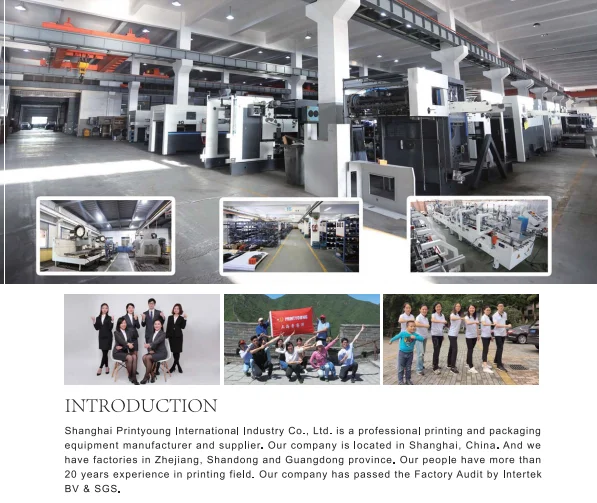

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Driven Type:	Electric;	Port:	Shanghai/Ningbo;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Warranty:	1 Year;
Condition:	New;	Application:	Apparel,Beverage,Commodity,Food,Machinery & Hardware,Medical,Textiles;
Packaging Material:	Paper;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Zhejiang China;	Brand Name:	PRINTYOUNG;
Voltage:	380V;	Payment Terms:	T/T;
Glue:	water solvable;	Supply Ability:	1 Set/Sets per Week;
Name:	ZH-1200G Automatic Box Folding and Gluing Machine;	Paperboard:	200-600gsm;
Certification:	CE;	Line speed:	280m/min adjustable;
Applicable Industries:	Printing Shops;	Weight:	3000kg;
Type:	Boxing Machine;	Dimension(LWH):	1050013001300mm;

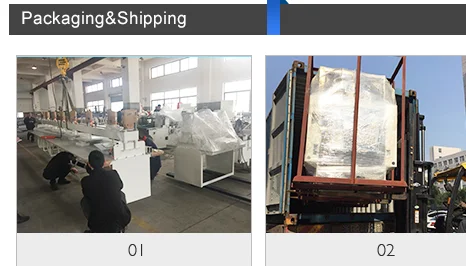

Packaging Detail:	WOODEN CASE each ZH-1200G Automatic Box Folding and Gluing Machine;	Box forming:	either side fold, and bottom fold;
Packaging Type:	Cartons;	Auto Counting Range:	0-999999 number with batching facility.;
Automatic Grade:	Automatic;

Product Description

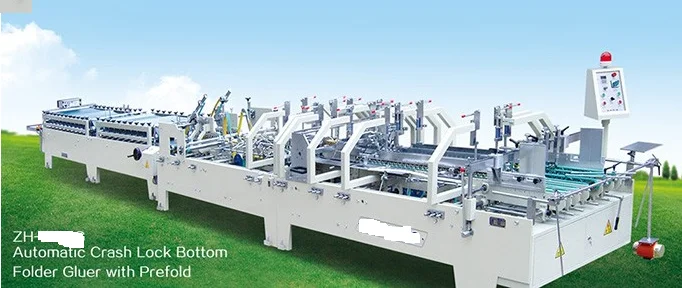

ZH-1200G Automatic Box Folding and Gluing Machine

ZH-1200G Automatic Box Folding and Gluing Machine is specially designed for large straight line box, large pre-fold box and large crash lock bottom box. Its feeding width can be up to 1000mm. Larger sized folding section will increase the folding and gluing accuracy, and thus decrease the trumpet mouth box forming on the older generation model. Upper belt of ZH1200G can be adjusted separately, and thus for E corrugated box, the trumpet mouth box forming phenomena will also be decreased. Its motor can be separately independently and makes the collecting effect better. It is ideal equipment for large box packing factories.

FEATURES:

1.	Line speed	280/min, Continuous adjustment.
2.	Usage paper	200600g/ Paperboard
3.	Box forming	Either side fold, and bottom fold
4.	Fold method	1st and 3rd folds 90°,2nd and 4th folds 180°
5.	Paper feeding	Automatic feeding
6.	Binder	Dissovle the type
7.	Electric	6kw 380v
8.	Weight	3000kg
9.	Dimension	10500×1300×1300(mm)

MAIN TECHNICAL DATAS

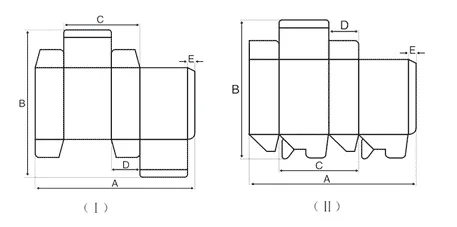

Box type	(A Max)	(A Min)	(B Max)	(B Min)	(C Max)	(C Min)	(D Min)	(D Min)
Straight line box()	1000	160	700	90	450	100	12	10
Pre-fold box()	1000	220	700	90	450	100	17	10
Crash-lock Bottom box()	1000	200	700	90	450	100	70	10
