Automatic Tank Welder/Tank Seam Wlding Machine/Automatic Girth Seam Welding Machine
-
Supplier: Wincoo Engineering Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Jackie Nie -
Price: $5000.00 /unit -
Min. Order: 1 unit
| Weight: | Customized; | Supply Ability: | 230 Set/Sets per Year; |
| Packaging Detail: | Container; | Dimensions: | Customized; |
| Condition: | New; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Voltage: | 380V/50HZ; | Usage: | Welding; |
| Welding Mode: | TIG MIG MAG SAW PAW; | Power(W): | 1.5kw; |
| Port: | Shanghai; | Certification: | ISO9001; |
| Welding Diameter: | 50-800mm; | Warranty: | 12 Months; |
| Payment Terms: | L/C,D/A,T/T,Western Union; | Brand Name: | WINCOO; |
| Forming Time: | 1s-10s Adjustable; |

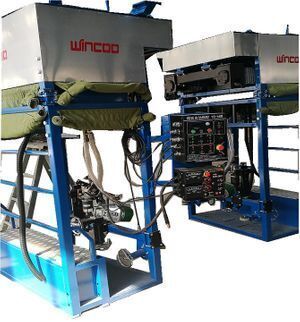

We offers the Automatic Submerged Arc Horizontal Welder for tank fabrication applications. Unlike current girth welder on the market, the MSHW(AGW)series coes stanard with a Dual Drive System. This self-propellde submerged arc welding system can reduce field storage tank welding time as high as 25%. Weld defects are greatly reduced, saving tank erection costs. The Horizontal Welder is applicable for top-to-bottom or bottom-to-top construction single or double wall storage tanks for inside and outside welding. There are four standard units, however our design allows us to offer custom built units for non-standard applications.
Specification
Min Tank Diameter | 4.5M |
Plate Width | 1.4-3.2M |
Plate Thickness | 8-45MM |
Construction Method | Top to Bottom& Bottom to Top |
Welding Speed | 300-500mm/Min |
Moving Speed | 2650mm/Min |
Product Model
Product | Model/ | Application/ |
Single sided girth welder | MSHW-I/Z | Storage tanks |
Double sided girth welder | MSHW-II |
|
Jack-up Girth welder | MSHW-I/D | Jack Up tanks |
Light girth welder/ | MSHW-L | Tower |
Girth welder for LNG/LPG | MSHW-LNG | LNG&LPG Tanks |
-
