Orbital welding machine/pipe welding machine

Supplier: Wincoo Engineering Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jackie Nie
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions:	1000X1000X900mm;	Tube Diameter:	more than130mm;
Condition:	New;	Payment Terms:	L/C,D/P,T/T;
After-sales Service Provided:	Engineers available to service machinery overseas;	Voltage:	36V;
Place of Origin:	Shanghai China;	Warranty:	1 Year;
Application:	Welding Equipment;	Brand Name:	WINCOO;
Certification:	ISO;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Supply Ability:	500 Set/Sets per Year;	Packaging Detail:	EXPORT PACKAGE;
Usage:	Pipe Welding;	Applicable Industries:	Construction works ;
Weight:	98KG;	Port:	SHANGHAI;
Power(W):	150W;

All positon automatic pipeline welding machine

Ø Suitable pipe: more than 130mm

Ø Pipe wall thickness: 4-50mm

Ø Suitable for : C.S,S.S,A.S, Low temperature steel(S.S is with special rail)

Ø Suitable seam welding: pipe to pipe,pipe to elbow, pipe to flange

Ø Drive system; stepping motor wheels and Gear/worm transferring

Ø Control mode: Button to add and subtract speed;

Ø Adjustment manner:electrical circuitry control

Ø Oscillating system: the company's proprietary technology products, / swing stepper motor;

Ø Control system: the company's proprietary technology products, the digital control

Item	Data	Data
Power Source
Brand		Kimppe Hiarc M500A
Power source Voltage	3,50/60hz	380V(-10% to +15%)
Rated power	60% ED	24.5KVA
Rated power	100% ED	17KVA
Current Supply	Maximum	37A
Current Supply	Valid value	29A
Outlet,at 40degree		500A/39.0V
Outlet,at 40degree		390A/33.5V
Fuse		35A
open-circuit voltage		60-70V
Power factor 60%		0.92
Power 100%		87%
Welding range		13-50V
Size		716385485mm
electromagnetic compatibility	A
Weight		41kg
Protection grade		ip23s
Gas heating connection		36v/150W

working principle

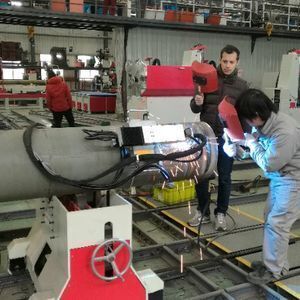

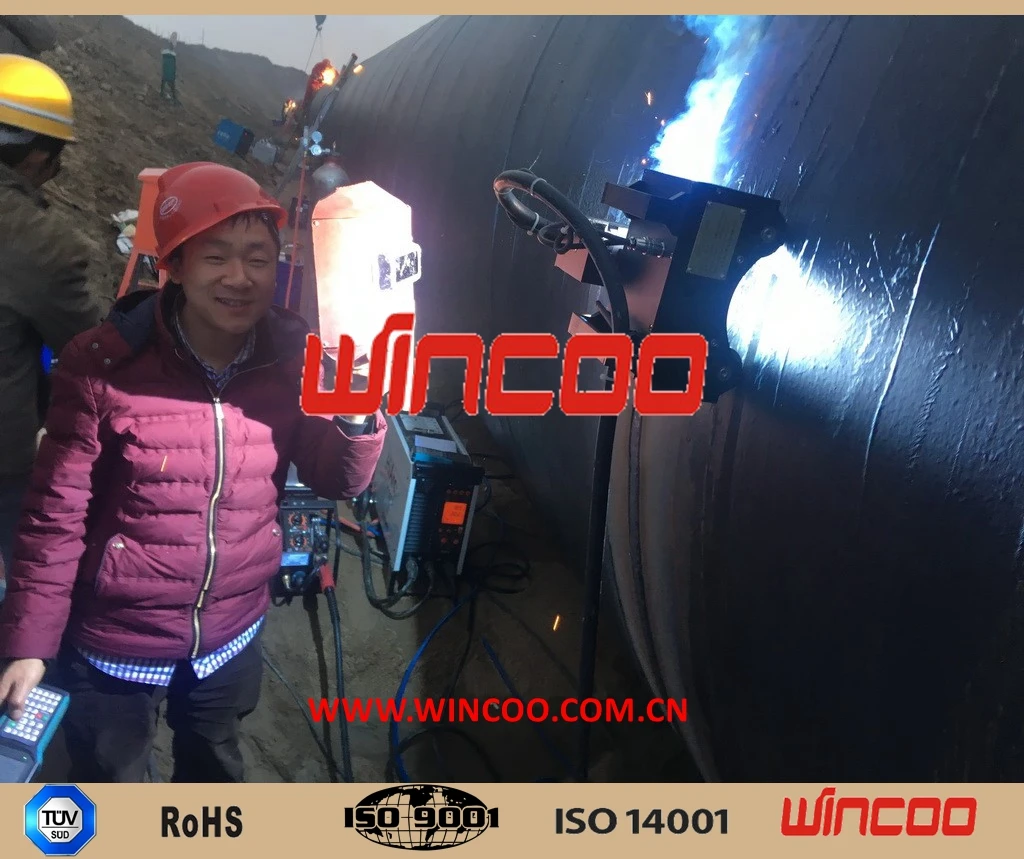

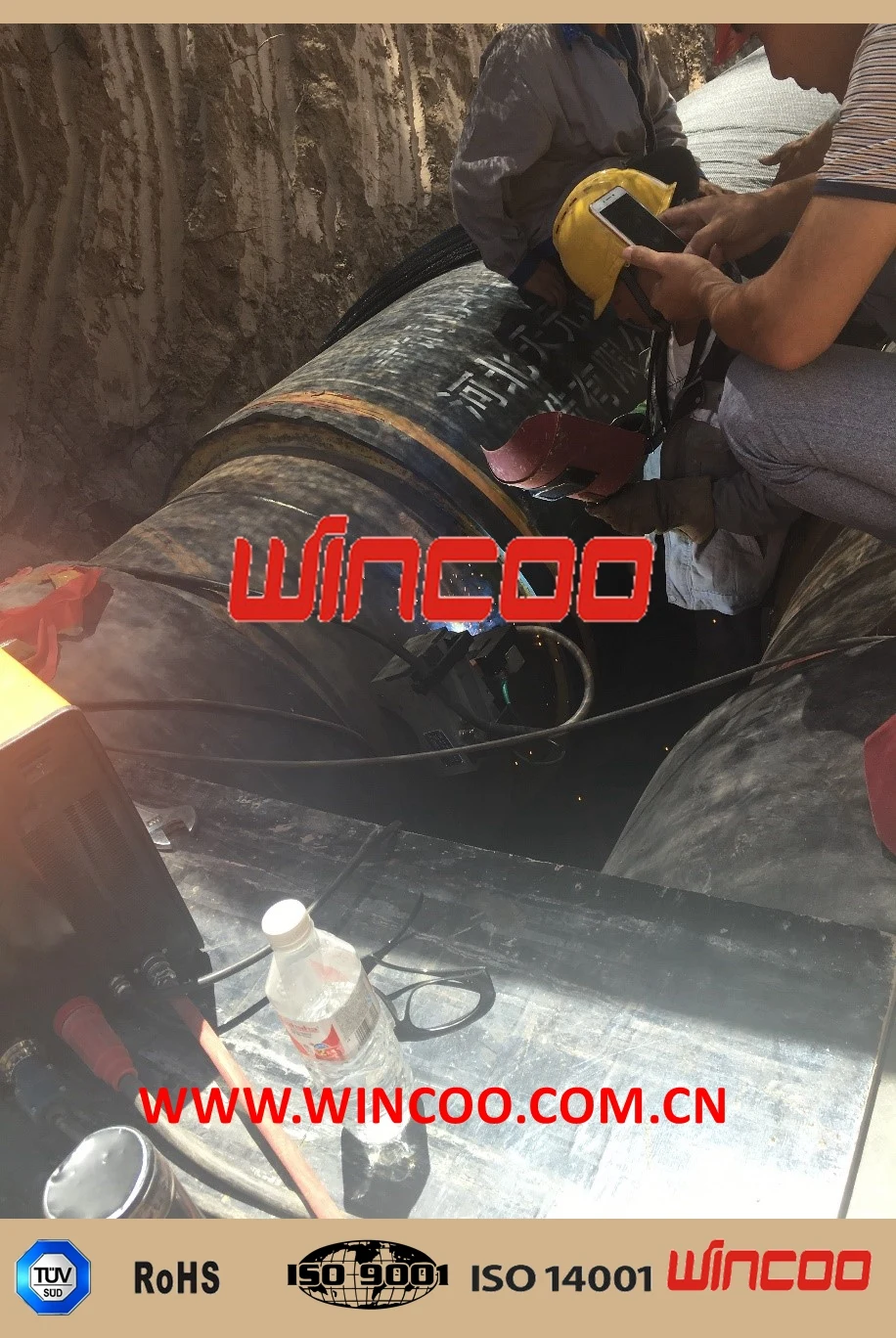

Using pipe fixed, welding carriage walking to reach all position automatic pipe welding, welding process with high efficiency and low cost of CO2 gas shielded welding. Summary of structure and instructions

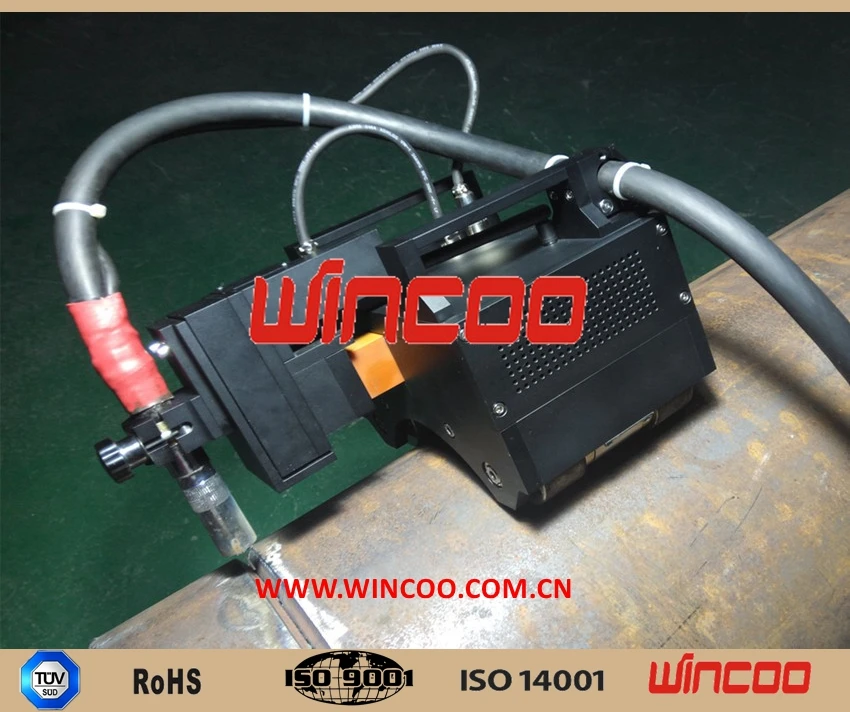

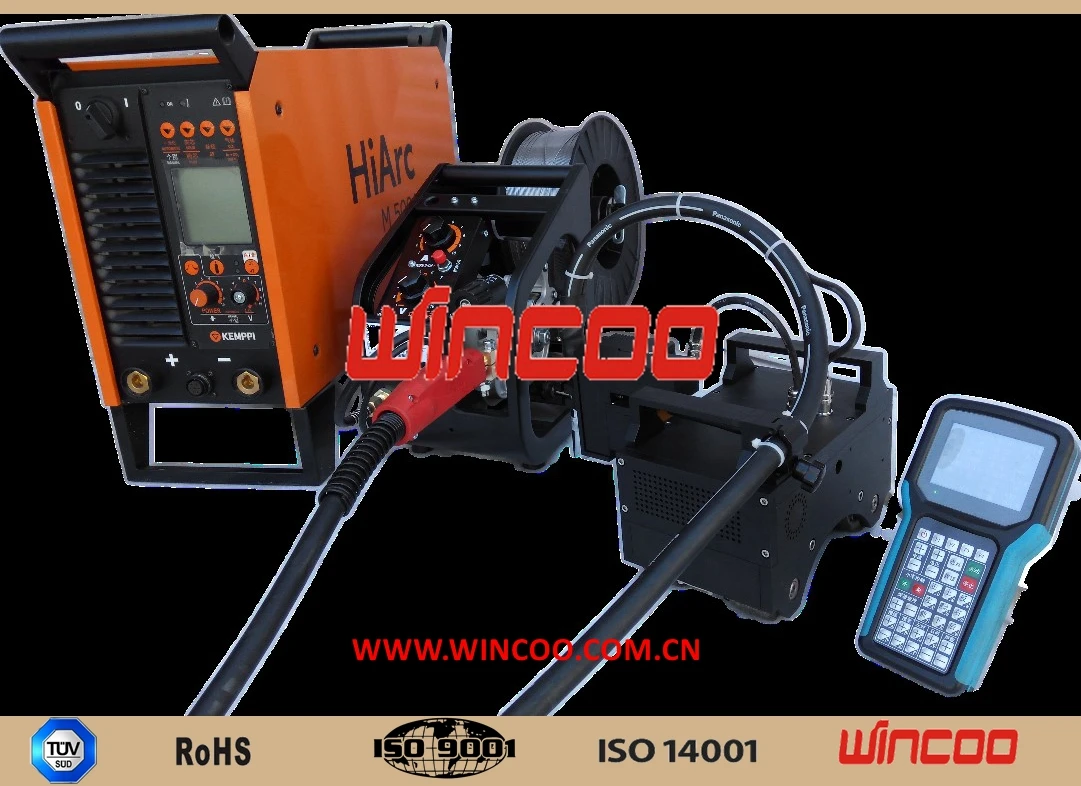

Pipeline all position automatic welding machine is consisted of welding control system , welding carriage with torch, welding power source, wire feeding device and accessories.
