PPR pipe hot melt machine
-
Supplier: Shijiazhuang Shentong Plastic Industry Co., Ltd. -
Region: Hebei, China -
Contact: Ms aishu yuan -
Price: $20.00 / 15 - 59 sets
$13.41 / >=60 sets -
Min. Order: 15 sets
| frequency: | 50 Hz | Package preview: | |
| temperature control: | 260℃ | Local service locations: | Egypt, Canada |
| Core components: | engine | Marketing type: | 2020 new products |
| rated power: | 800 watts | Rated voltage: | 220v+/-10% |
| Health status: | new | port: | Tianjin |
| Place of origin: | Hebei china | payment terms: | Letter of credit, wire transfer, Western Union |
| Pipe diameter: | 20-63mm | Post-warranty service: | Video technical support, online support |
| application: | welded pipe | Mechanical test report: | if |
| Weight (kg): | 5kg | Video outbound inspection: | if |
| Packaging details: | plastic box | usage: | PP, PPB, PERT, PE |
| After-sales service provided: | Engineers can repair machinery overseas, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical support | brand: | Fawcett, Fawcett |
| Showroom location: | Egypt, Canada | aspect: | 45*50*65 |
| Voltage: | 110V 220V | product name: | PPR pipe hot melt machine |
| Applicable industries: | Hotels, clothing stores, building materials stores, machine repair shops, manufacturing plants, food and beverage plants, farms, restaurants, household, retail, food stores, print shops, construction projects, energy and mining, food and beverage stores, advertising agencies | weight: | 3.5kg |
| Certification: | ISO9001 | Main selling points: | Well-known brand PLC |
| Applicable: | Welded PPR PE pipe fittings | strength: | 600 watts |
| Warranty: | 5 years, 3 years | Supply capacity: | 100000 sets per day - |
| Core component warranty: | 5 years |

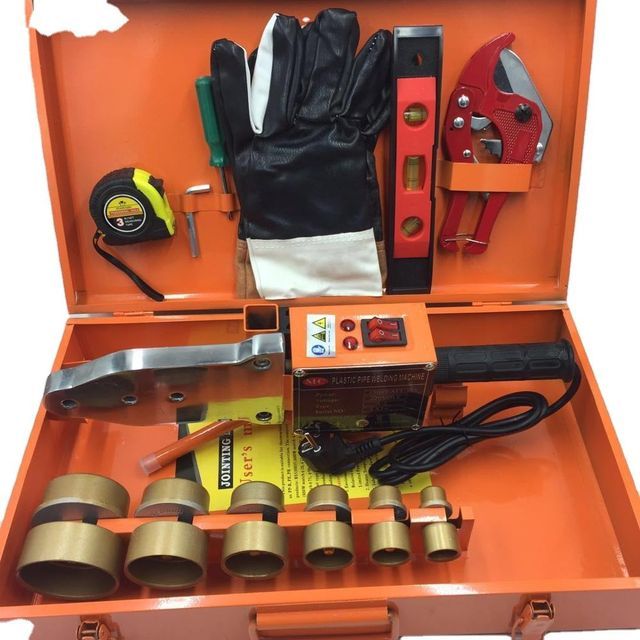

PPR pipe hot melt machine
PPR pipe hot melt machine
Rated power: 800w
Rated voltage: 220v+/-10%
Frequency: 50*60Hz
Working temperature: 0-300℃
Working range: 20-63mm

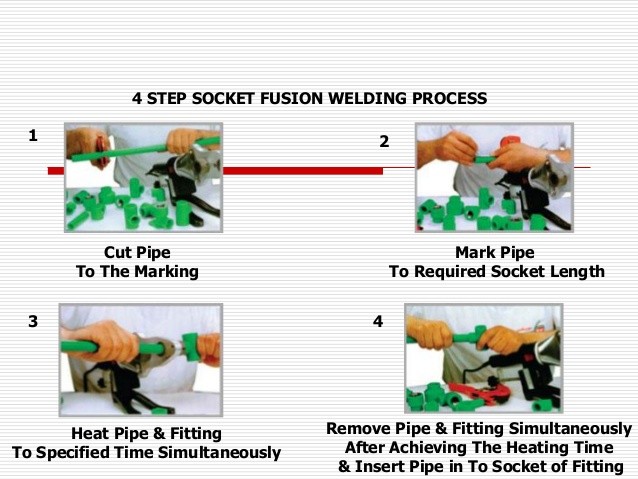

Connection process:
- Prepare pipe lengths using a standard pipe cutter;
- Heat the pipe ends. Special heating tool (250 degrees Celsius) - 5 to 50 seconds, depending on pipe thickness;
- Connect the pipe to the required fittings. Allow welding time from 4 to 10 seconds depending on pipe thickness.
|
Glass fiber PP-R pipe |
|
|
Dimensions (mm) |
DN20 25 32 40 50 63 75 90 110 |
|
structure |
Three layers: PPR-fiberglass-PPR |
|
Material |
Atactic polypropylene and fiberglass |
|
Low thermal conductivity |
0.25w/mk, 1/1500 of brass tube, 1/250 of steel tube |
|
Vicat softening temperature |
>131.5°c |
|
Low thermal expansion coefficient |
0.16mm/(m·k) |
|
Low coefficient of friction |
0.007 |
|
Pressure Level |
2.0Mpa, 2.5Mpa |
|
temperature |
(-40)°c ~ +110°c |
|
Oxygen permeability coefficient |
0 |
|
Chemical |
UV resistant; Smooth inner and outer walls; |
|
No bubbles, rough; no scaling, antibacterial; |
|
|
healthy |
Harmless, non-toxic and hygienic |
|
Service life |
more than 50 years |
|
Certification |
ISO9001:2000 ISO14001 CE |
|
Portable, easy to transport and carry. |
|
|
The installation is simple and reliable, and the construction cost is low. |
|
|
Suitable for surface and concealed installation. |
|
-
