315mm pe pipe /hdpe pipe butt fusion welding machine

Product details
Port:Shanghai /ningbo port;Key Selling Points:Low Maintenance Cost;
Supply Ability:500 Set/Sets per Month;pe welding machine Working Voltage:220/240V , 50/60HZ , single phase;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Aliexpress;Certification:ISO , CE ,;
Video outgoing-inspection:Provided;Warranty of core components:2 years;
Core Components:Engine;Weight (KG):250;
Marketing Type:Hot Product 2019;Heating plate power:3.5KW;
Warranty:1 Year;Condition:New;
Brand Name:FOSITE;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Showroom Location:Italy,Philippines,Pakistan,Thailand,Malaysia;Local Service Location:Germany,Indonesia,Australia,Argentina,South Korea,Romania;
Pressures Adjustable Ranges:0-6.3Mpa;Temp.deviation in surface (170-250 ℃:≤±7℃;
Hdpe pipe welding machine size:90,110,125,140,160,180,200,225,250,280,315;Place of Origin:Hebei China;
Heating plate Max. Temperature:270℃;welding machine Hydraulic unit power:0.75KW;
butt fusion machine Planing tool power:1.1KW;Usage:weldig pe pipe and fittings;
After-sales Service Provided:Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;Packaging Detail:wooden case;
Dimensions:90-315mm;Power (kW):5.35;
Machinery Test Report:Provided;Applicable Industries:Building Material Shops;
Input Voltage:220V;Current:50Hz;
Total G.W:250KG;

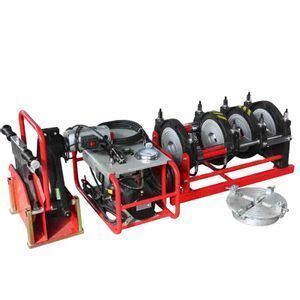

315mm pe pipe /hdpe pipe butt fusion welding machine





1 Type: hydraulic & manual

2 Certificate : ISO CE

3 OEM : Available

4 App: PE,PP and PVDF





Company Information

 Shijiazhuang shentong plastic Industry is one of China manufacturerof butt

welding equipment and accessories used for butt fusion of thermoplastic pipe.

 Butt Fusion Welding Machine is the name given to the process of heat fusion

 by hot plate butt welding of PE,PP,PVDF materials.







Product Description

 Application

Suitable for butt welding of plastic pipes and / or fittings made of PE,PP, and PVDF in worksite or workshop.

Features

Removable PTFE coated heating plate with separate temperature control system.

Electrical planning tool;

Be made of lightweight and high strength material; simple structure, small and delicate user friendly;

Low starting pressure ensures reliable welding quality of small pipes;

Separate two-channel timer shows time in soaking and cooling phases;

High-accurate and shockproof pressure meter in indicates clear readings.

Technical specifications

u Welding ranges: plastic pipes:90mm-315mm

(90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm)

u Ranges of application: PE,PP and PVDF

u Working voltage: ~220V ±10%,50Hz

Total power: 4.95 kW, including: planning tool:1.1 kW, heating plate:3.1 kW, hydraulic unit motor: 0.75 kW;

u PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.

u Environment temperature: -10° ~ 45°

u Electronic count-down timer for heating and cooling time.

Whole machine consists of basic frame, heating plate, planning tool, hydraulic  unit and  support (for planning tool & heating plate)





Choose reason



honor qualification



Packaging & Shipping









Our Services


All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)

International warranty: 24months.

Any parts broken or does not work under normal operating,we are free to provide.

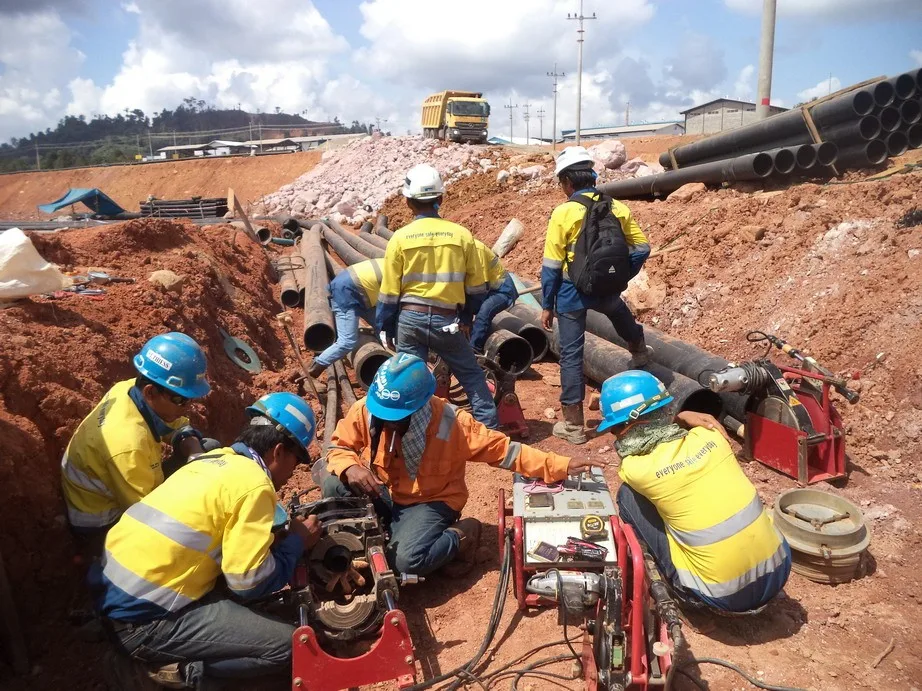

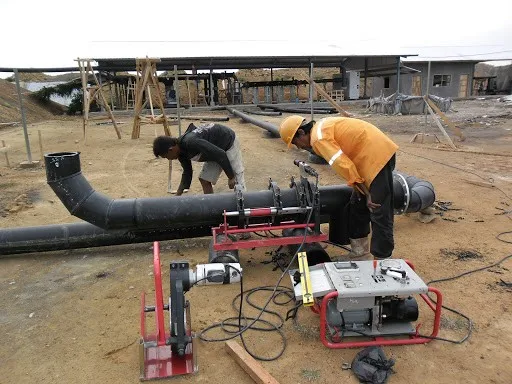

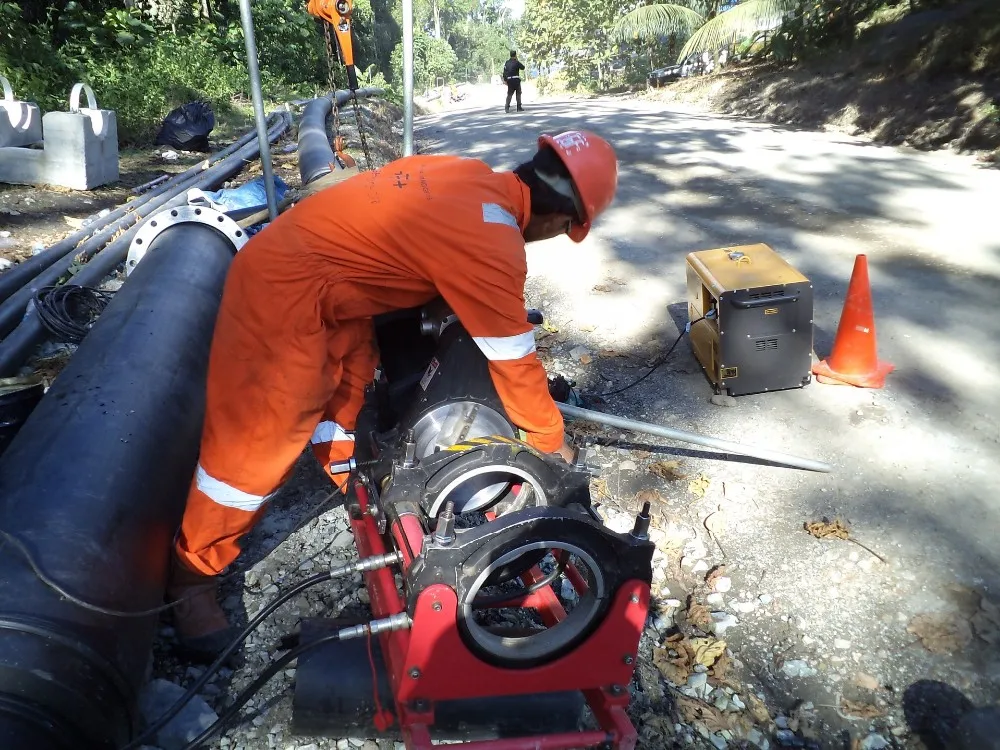

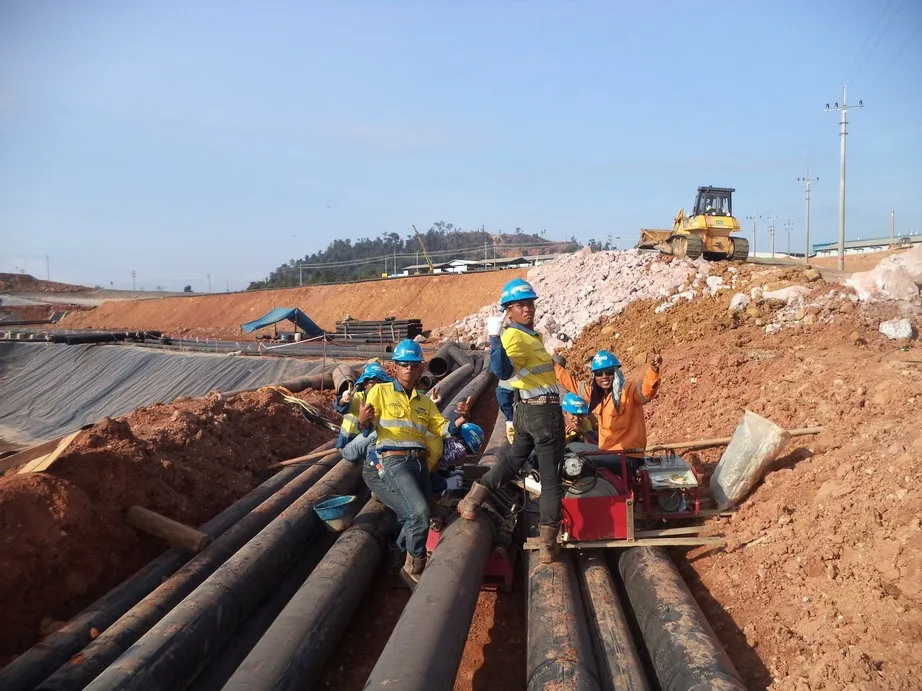

Customers operation :
