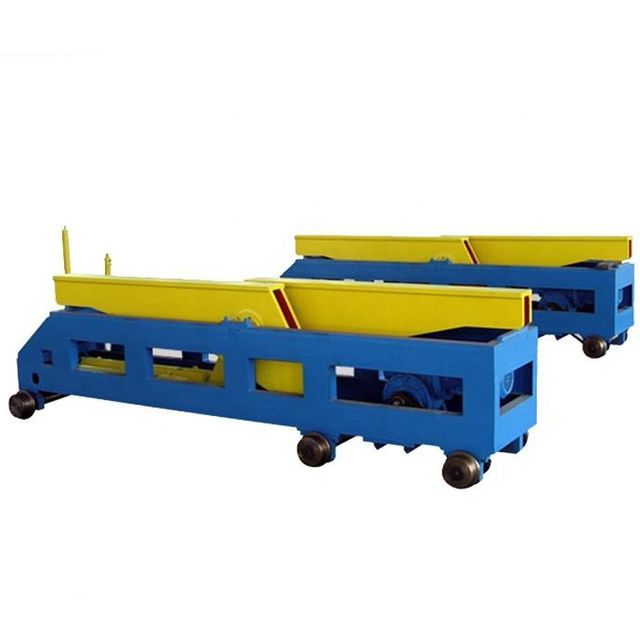

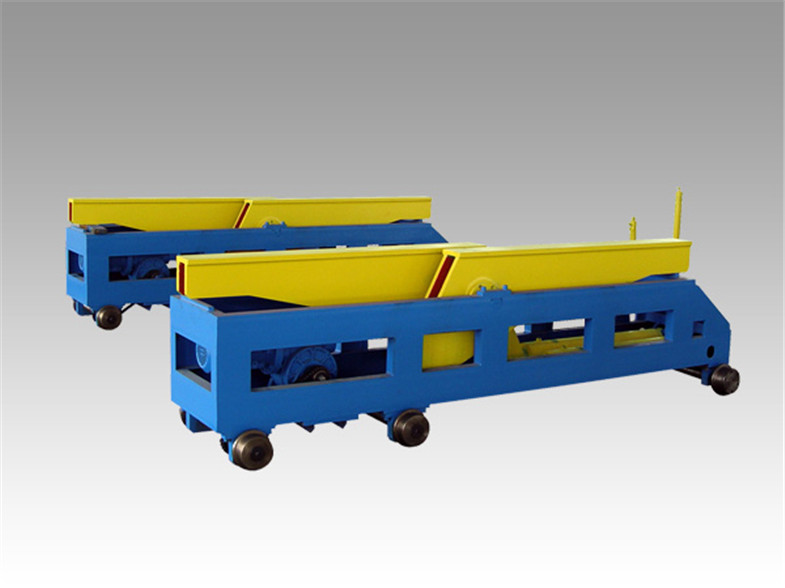

Steel structure 90 degree, 180 degree hydraulic turning machine and H-shaped steel turning machine
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
Product Description
This equipment is mainly used to turn the workpiece 90° or 180° during the production of H-shaped steel. It is a special equipment for turning and moving, and is widely used for welding turning, straightening turning and manual welding.
It can also be used in other applications. We also welcome special requests.
size information
Model | FZ180 | |
Applicable workpiece weight (t) | ≤20 tons | |
Traveling motor power (kW) | 1.5 | |
Traveling speed (m/min) | 5 | |
Turning cylinder diameter (mm) | φ150 | |
Maximum pressure of hydraulic system (MPa) | 16 | |
Guide rail center distance (mm) | 700 or according to actual situation | |
The above are our company's standard models and parameters, which can be designed and manufactured as required. | ||
Model | FZ90 | |
Applicable H-shaped steel flange width (mm) | 200-800 | |
Applicable H-shaped steel web height (mm) | 200-2000mm | |
Applicable workpiece weight (t) | ≤20T | |
Turning cylinder diameter (mm) | φ125 | |
Maximum pressure of hydraulic system (MPa) | 14 | |
The above are our company's standard models and parameters, which can be designed and manufactured as required. | ||
Model | FZ60 | |
Tilt angle (O) | 0-60℃ | |
Turning workpiece weight (t) | 20 tons/group | |
Turning cylinder diameter (mm) | φ125 | |
Maximum pressure of hydraulic system (MPa) | 16 | |
The above are our company's standard models and parameters, which can be designed and manufactured as required. | ||

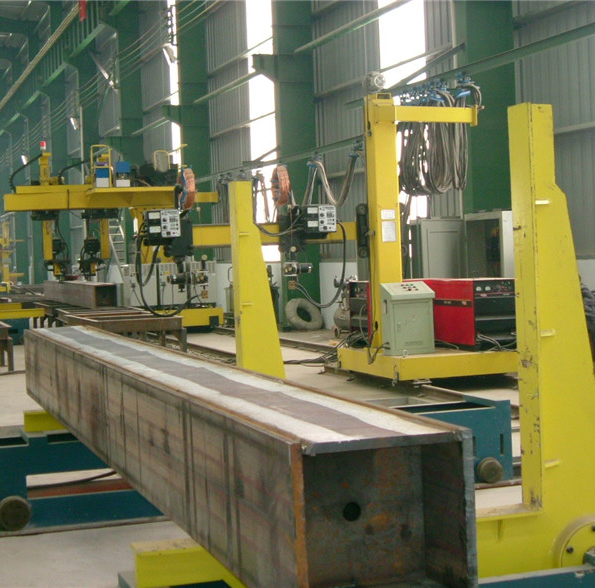

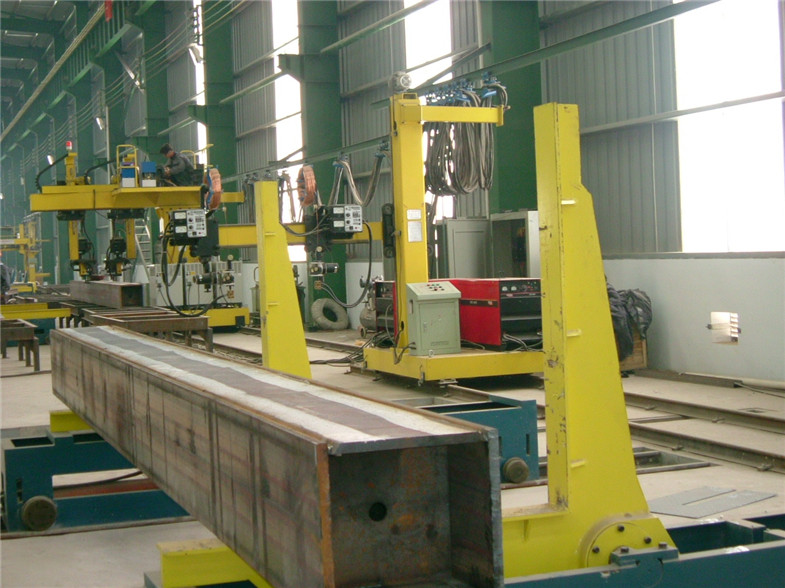

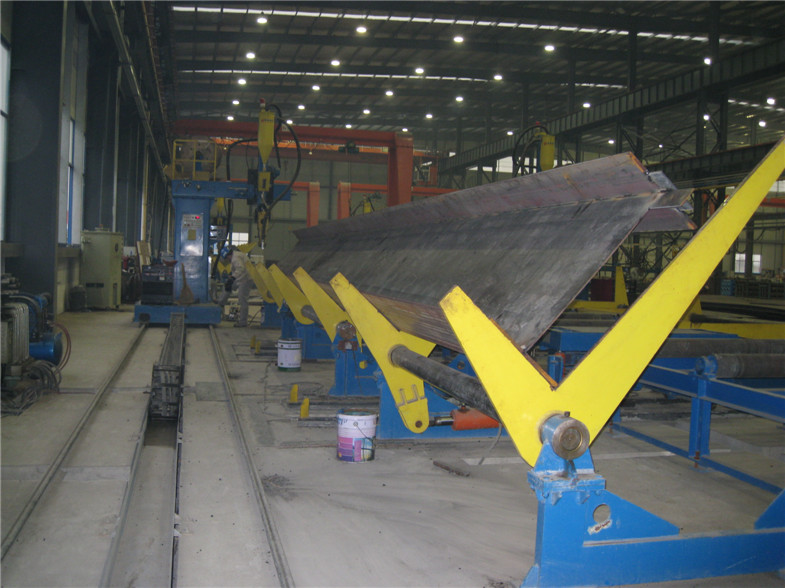

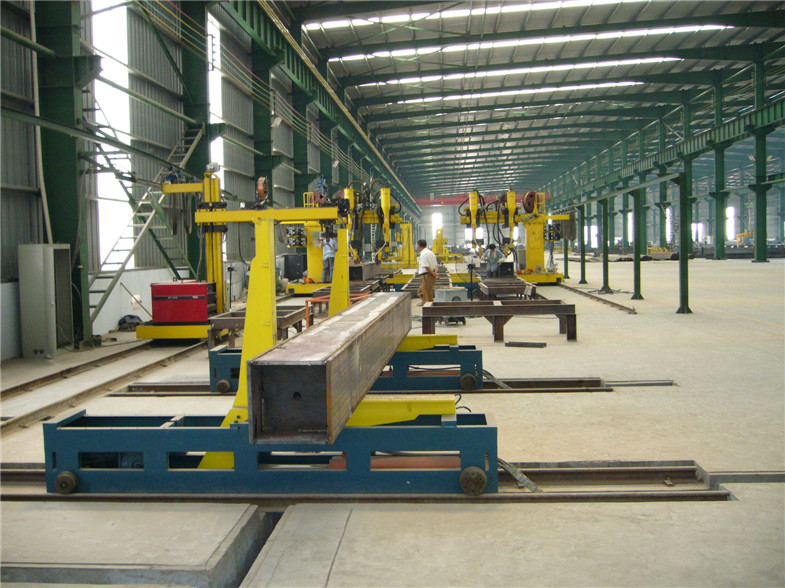

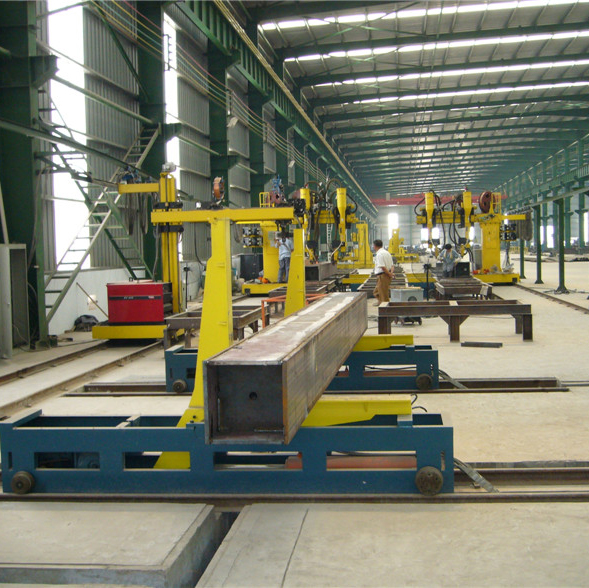

Detailed pictures
