Completion Tool High Performance Fully Dissolvable Frac Plug

Supplier: Chongqing Weiyun Technology Development Co., Ltd.
Region: Chongqing, China
Contact: Mr YX Liu
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

OD:	95mm - 146mm;	Port:	Chongqing;
Working pressure:	70Mpa/10,000psi;	application:	shale gas exploration, horizontal well and high deviated well;

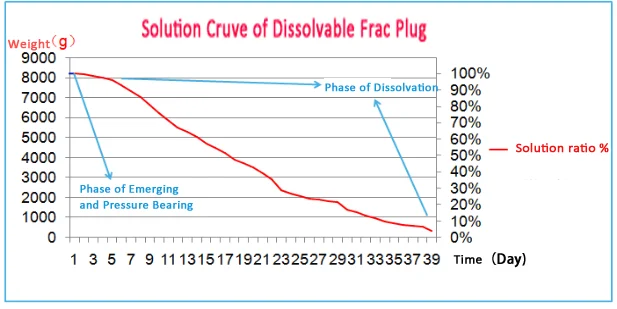

Packaging Detail:	Plywood carton for air freight and ocean freight;	Degradation time:	15-25days;
Materials:	soluble material, polymer degradable material,high strength ceramic;	Payment Terms:	L/C,T/T,Western Union;
Setting:	hydraulic pressure;	Type:	downhole tool;
Type:	dissolvable bridge plug;	Working temperature:	60/80/100/120/150℃;
Delivery Detail:	10-20 Days;	Supply Ability:	1000 Piece/Pieces per Month;

Completion Tool High Performance Fully Dissolvable Frac Plug

Product Description

Water solubility dissolvable frac plug is a total new block-off downhole tool developed from conventional bridge plug. It organically mixes the patent soluble material, polymer degradable material and high strength ceramic technology, thus gets an outstanding performance of mechanism, solubility and degradation for the multi-staged fracture operation in the oil and gas well.

The body of dissolvable frac plug applies miscellaneous soluble metal materials, as well as that the rubber applies polymer degradable material; The dissolvable packer has 70Mpa pressure strength. According to different working condition, the dissolvable packer has tailored formula for different solubility time in order that releasing the reservoir block of horizontal well and highly deviated well automatically.

WINGOIL has developed four series dissolvable bridge plugs upon working temperature (60-80℃,80-100℃,100-120℃,120-150℃), the outer diameter of bridge plug is from 95mm to 146mm. All models are testified in oil and gas well operation with 100% success rate.

Characteristics

- Made of compound high strength soluble metals, guarantee the material strength under high temperature.
- Customized formula and the solubility time is flexible.
- Special high strength compound slips(max. Strength 1250Mpa), it is stable to long 15 days.
- Special cracking technology
- Good compatibility and inheritance, unnecessary to change existing strings structure, no risks resulted from drilling out and reduce the damage of casings.
