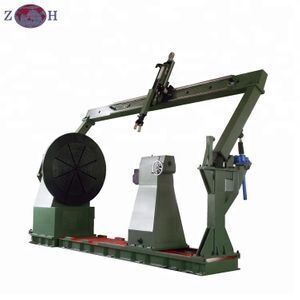

Heavy-duty Transformer Coil Winding machine with Flexible Compacting Device for transformer coils more than 5Tons

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $55000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max. coil OD:	1500~3000mm;	Max. spindle torque:	8000~40000Nm;
Packaging Detail:	Heavy-duty transformer coil winding machine with flexible compacting device will be packed by sea worthy wooden case.;	Suitable coil weight:	5T ~ 35T;
Place of Origin:	Shandong China;	Supply Ability:	60 Set/Sets per Year;
Brand Name:	Zhenhuan;	Model Number:	WRJ;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Chuck diameter:	can be customerized;
Port:	Shandong;

Heavy-duty Transformer Coil Winding Machine with Compating Device

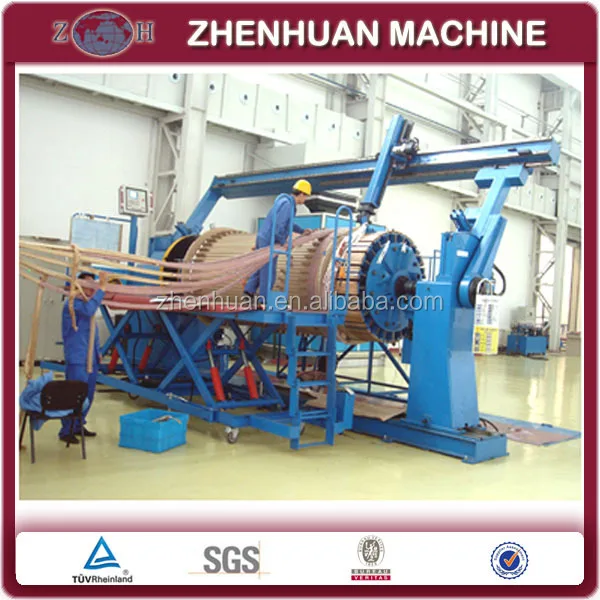

I Description of heavy-duty transformer coil winding machine:

This machine is used for winding coils of big capacity transformers and reactors.

This machine adopts big power AC inverter motor. One sensor is mounted on the tail terminal which can check coil turns and tap positions accurately and display them on touch screen (HMI).

This machine is equipped with winding axial and radial compacting device and so the wounded windings will be more compact and even, and thus assures the quality of winding coils.

|transformer coil winding machine| transformer coil winding machine|transformer coil winding machine|

II Buildup of heavy-duty transformer coil winding machine:

|transformer coil winding machine| transformer coil winding machine|transformer coil winding machine|

It is comprised of main spindle box, tailstock, rail, conductor vertical pressing device, conductor separating device, axial & radial compacting device, electric control system.

|transformer coil winding machine| transformer coil winding machine|transformer coil winding machine|

III Main technical data of heavy-duty transformer coil winding machine:

Parameters	WRJ-5	WRJ-10	WRJ-15	WRJ-20	WRJ-25	WRJ-35
Max. load (T)	5	10	15	20	25	35
Max. coil diameter (mm)	1500	1800	2000	2800	2800	3000
Chuck diameter (mm)	750	1000	1400	1800	1800	2000
Distance between chuck and tail (mm)	3000	3000	3500	4600	4600	4600
Height of main spindle (mm)	1200	1400	1600	1800	1800	1800
Stroke of tail stock (mm)	2000	2000	2000	2600	2600	2600
Turning range of compacting device	35°
Stroke of compacting head (mm)	500	750	750	750	1040	1040
Speed of main spindle (r/min)	0~10	0~10	0~10	0~10	0~10	0~7
Max. vertical compacting force (kgf)	120	160	160	160	160	160
Max. horizontal compacting force (kgf)	250	300	300	300	300	300
Max. torque (N.m)	8000	15000	2000	25000	30000	40000

|transformer coil winding machine| transformer coil winding machine|transformer coil winding machine|

We, Nantong Zhenhuan Machine, has been in machine business for more than 14 years. We have certified by BV, TUV and SGS. We can provide you transformer coil winding machines and other transformer making machines.

Please visit our website http://zhenhuan.en.alibaba.com for more Zhenhuan Machines.
