LGK30EP Air Plasma Cutting Machine
- 160.00 piece
| Supply Ability: | 10000 Piece/Pieces per Week; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
| Dimensions: | 375*155*295mm; | Rated Current: | 10-30A; |
| Inverter: | Mosfet; | Color: | Carmine or other; |
| Power(W): | 3500; | Arc-starting: | Touch; |
| Delivery Detail: | 20 days; | Insulation Class: | F; |
| Cutting thickness: | 10mm; | Power Factor: | 0.93; |
| Efficiency: | 85%; | Usage: | Be able to cut Carbon steel and all kinds of metal easily; |
| Packaging Detail: | Carton, Pallets; | Condition: | New; |
| Port: | Fuzhou; | Weight: | 9Kg; |
| Input Voltage: | AC.(single phase)220V~240V; | Brand Name: | TEK; |
| Certification: | CE ISO9002; | Model Number: | LGK30EP; |
| After-sales Service Provided: | Overseas third-party support available; | Protection Class: | IP21; |
| Place of Origin: | Fujian China; | Rated Output Volt: | 96V; |

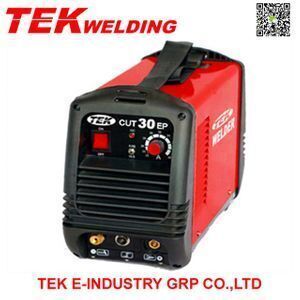

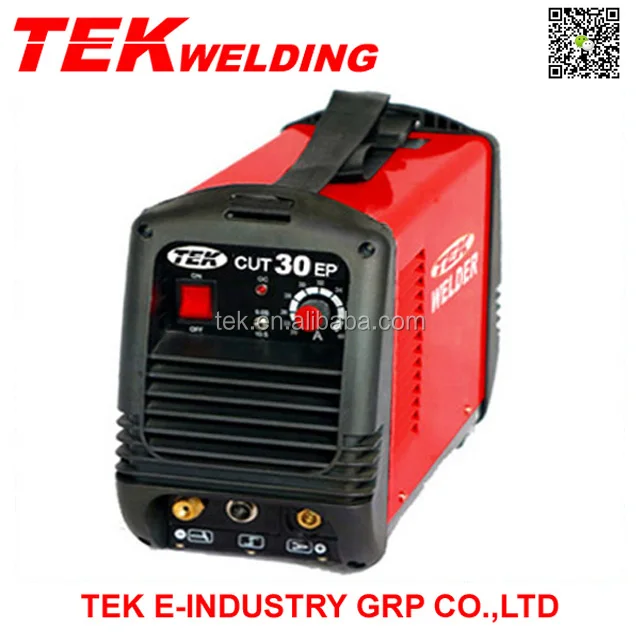

LGK30EP Air Plasma Cutting Machine
1. Suitable for sheet over 0.8mm
2. Cost saving and efficiency improving
3. With wire machine, and easy and considerable for operation
4. High welding speed, high arcing success rate
5. Continuous and discontinuous welding function
6. Automatic voltage pulsation compensation capability
7. Suitable for carbon steel, alloy steel, soft steel, etc, and various wire
8. Little spatter, uniform welding pool, good welding shape.
TECHNICAL SPECIFICATIONS |
|
MODEL | LGK30EP |
Input power voltage frequency | AC.(single phase)220V~240V±15%50Hz/60Hz |
Rated input power capacity | 3.5KVA |
No-load voltage | 230V |
Current range | 10-30A |
Rated output voltage | 96V |
Rated duty cycle | 60% |
Efficiency | 85% |
Power factor | 0.93 |
Insulation class | F |
Protection class | IP21 |
Arc-starting | Touch |
Weight | 9.0Kg |
Overall dimension | 375×155×295mm |
Cutting thickness | 10mm |
Air plasma cutting machine with built-in compressor
