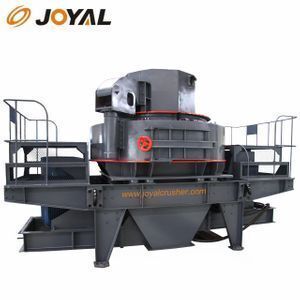

China Good Price Sand Making Machine/Mine Quarry Crusher/ VSI Crusher

Product details
Factory Visit:Welcomed Warmly;Key Selling Points:stone crusher;
Certification:ISO9001:2008;Warranty:lifelong;
Weight:7.8t-25.6t;Condition:New;
After-sales Service Provided:Online support;Applicable Industries:Construction works ,Energy & Mining;
Packaging Detail:export standard, nude pack, or as customers' request;After-sale service:Timely Solutions;
Place of Origin:Shanghai China;Quality:High Level;
Payment Terms:L/C,D/A,D/P,T/T,MoneyGram;Name:China Best Price Sand Making Machine/Mine Quarry Crusher/ VSI Crusher;
Voltage:380V;Keyword:sand crusher;
Spare parts supply:Anytime;Warranty:1 Year;
Supply Ability:100 Set/Sets per Month;Test&Installation:Pofessional Engineer Assigned;
Brand Name:JOYAL;Port:Shanghai,Tianjin,Qingdao;
After-sales Service Provided:Engineers available to service machinery overseas;Power(W):110000-400000;
Max feeding size:50mm;Dimension(L*W*H):5000*2700*3300mm;
Product Description

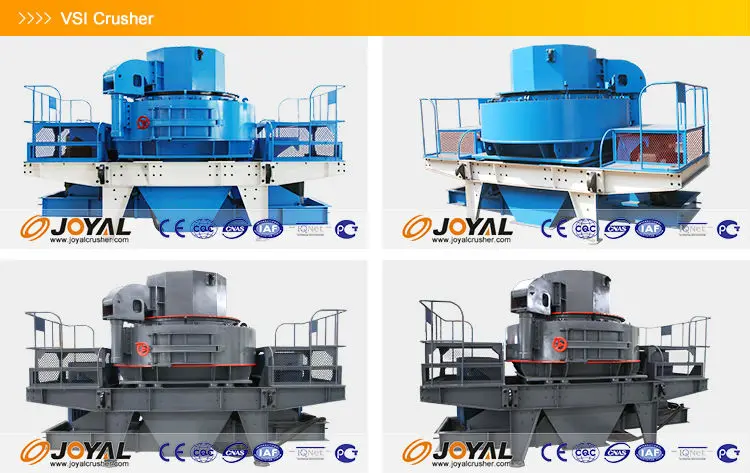

 Introduction of  China Sand Making Machine/Mine Quarry Crusher/ VSI Crusher
shanghai sang making machine is improved on the basis of Germany high technology, which is highly-efficient and superior in performance. The JOYAL VSI Crusher (sand making machine) is widely used to produce sand and stone for highway, high-speed railway, city project, hydropow





Features of China Sand Making Machine/Mine Quarry Crusher/ VSI Crusher

1. the oil needed is supplied by two oil pumps, and the machine stops automatically if there is no oil; the motor can be heated automatically in winter to ensure the normal working of the machine.
2. Hydraulic lifting system to check and replace the spare parts, thus it’s very easy and simple to maintain.
3. the bearing is of SKF and TIMKEN brand to ensure the normal working of the machine.
4. unique vibrating alarm device: if the machine works abnormally, the alarm will sound to stop the machine, thus protecting the whole machine.
5. Special feeding structure; rock on rock, and rock on iron to make the stones crushed and reshaped.
6. Unique dustproof seal system to prevent the dust getting into the spare parts.
7. unique design of material bumping angle reduces the friction between raw material and spare parts, extending the working life of spare parts and cut the cost.



Working Principle of China Sand Making Machine/Mine Quarry Crusher/ VSI Crusher

1. Central feeding:Raw materials fall down into the feeding hopper, then enters the impellor through central entrance inlet, thus the material being accelerated by the high-speed impellor and being thrown out at the speed of 60-75m/s. It is crushed when hitting the impact plate, and the end products comes out from the discharging outlet.
2. Ring feeding:Raw materials fall down into the feeding hopper, and the materials are divided into two parts by a special plate. Some materials enter the impellor through the center of the plate and the other part of materials falls down from outside of the plate. The materials thrown out earlier crush the materials down from outside, thus the materials crushed and re-crushed.





 Technical data

ModelVSI-7611VSI-8518VSI-9526VSI-1140
Capacity
(t/h)
Center and Sides Feeding120-180200-260300-380450-520
Center Feeding60-90100-130150-190225-260
Max. Feeding Size (mm)Soft Material35404550
Hard Material30354045
Rotation Speed(rpm)1700-18901520-16901360-15101180-1310
Double Motor Power (kw)110180264400
Overall Dimension
L×W×H (mm)
3700×2150×21004140×2280×24254560×2447×27785000×2700×3300
Weight (t)7.810.31625.6
Vibrating SensorInspection Range: 0.1-20mm/s Continual Adjustment
Hydraulic Oil PumpMotor Power of Double Oil Pump(Kw)2×0.31kw
Overall Dimension
L×W×H (mm)
820×520×1270
Power of Oil Tank Heater2KW
