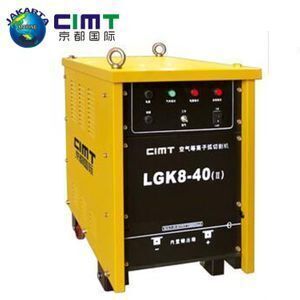

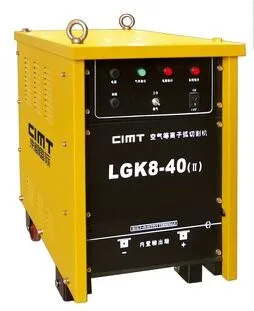

Singapore portable LGK series air-cut plasma power source used in CNC cutting machine with low price
- 500.00 set
| Certification: | CCC; | Dimension(L*W*H): | 650*400*700; |
| Rated Power: | 11kw; | Warranty: | One Year; |
| Place of Origin: | Jiangsu China; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Weight: | 100kg; | Name: | Cnc Plasma Cutting Machine; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Model Number: | LGK8; |
| Brand Name: | CIMT; | Condition: | New; |
| Color: | Customizable; | Delivery Detail: | Shipped in 30 days after payment; |
| Supply Ability: | 10000 Set/Sets per Year; | Packaging Detail: | standard seaworthy package for plasma cutting machine; |
| Voltage: | 380V; | Cutting material: | Metal .alloy Metal .aluminum; |
| Port: | shanghai; |
QUALITY AND SERVICE ARE OUR LIFE
GOODS DESCRIPTION
1.Suitable for cutting all metal meterial such as carbon steel, stainless steel, aluminium, copper, titanium,nickel,composite metal and cast iron,etc.
2.Reliable and quick arc starting,fast cutting speed,narrow and smooth cutting seam,small defromation of work piece
3.Compressed air as cutting air supply,which is no pollution,economic and low cost
4.Simple circuit,easy maintenance
5.After pickling, parkerizing,powder coat,paint coating the case of machine,which provides the case firm,anticorrosion and no shed.

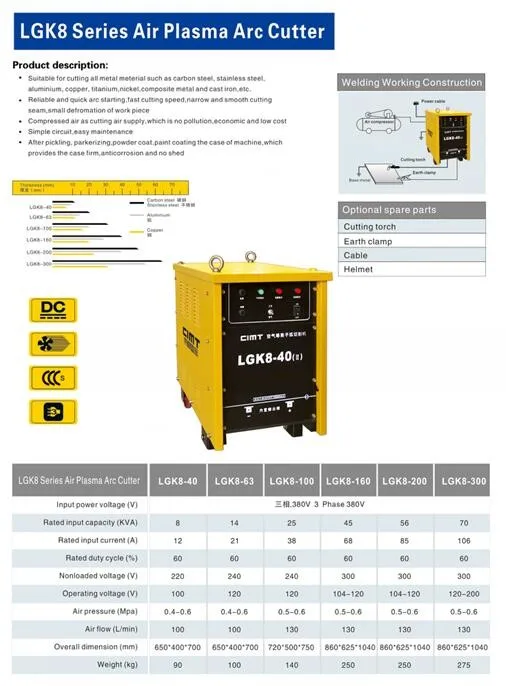

TECHNICAL PARAMETERS
| Model | LGK8-40 | LGK8-63 | LGK8-100 | LGK8-160 | LGK8-200 | LGK8-300 |
Input power voltage (V) | 3 phase,380V | |||||
Rated input capacity (KVA) | 8 | 14 | 25 | 45 | 56 | 70 |
Rated input current (A) | 12 | 21 | 38 | 68 | 85 | 106 |
Rated duty cycle (%) | 60 | 60 | 60 | 60 | 60 | 60 |
Nonloaded voltage (V) | 220 | 240 | 240 | 300 | 300 | 300 |
Operating voltage (V) | 100 | 120 | 120 | 104-120 | 104-120 | 120-200 |
Air pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 |
Air flow (L/min) | 100 | 100 | 130 | 130 | 130 | 130 |
Overall dimension (mm) | 650×400 ×700 | 650×400 ×700 | 720×500 ×750 | 860×625 ×1040 | 860×625 ×1040 | 860×625 ×1040 |
Weight (kg) | 90 | 100 | 140 | 250 | 250 | 275 |
More details

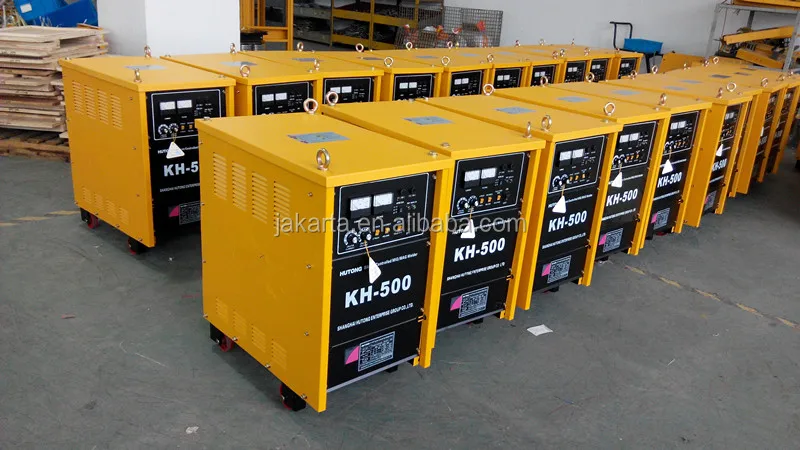

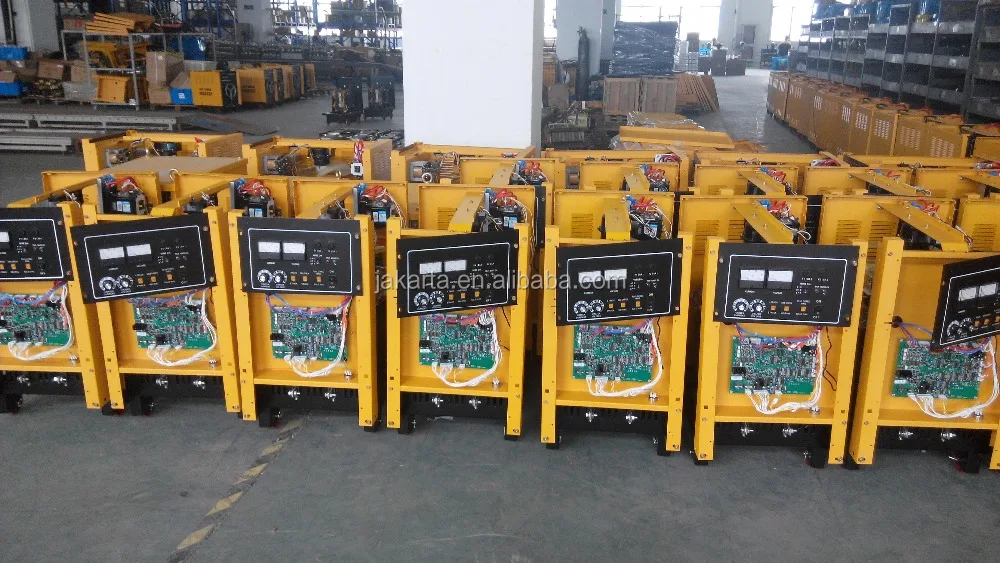

Production equipment
Testing device
OUR VISITORS
OUR AFTER SERVICE TEAM IN SOUTHEAST ASIA
