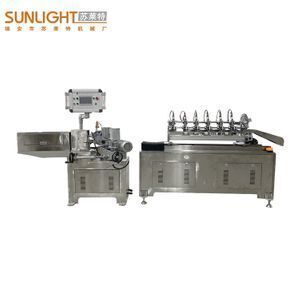

stainless 6 cutting knife paper straw making machine

Product details
After-sales Service Provided:Engineers available to service machinery overseas;Brand Name:sunlight;
Warranty:1 year;Place of Origin:Zhejiang China;
Condition:New;Dimension(L*W*H):3550*1100*1450mm;
Payment Terms:T/T;Supply Ability:1 Set/Sets per Day;
Weight:2100kgs;Port:ningbo;
Certification:FDA;Power(W):6.5kw;
Packaging Detail:strech film;Voltage:380v;
Product Description

Product Application

The machine is used for produce paper straw

Inner Diameter
4.3-12mm
Paper Roll
2-3 Plies
Thickness
0.25-1mm
Cutting Length
120-1070mm
Hub Wheel
Two Head
Way Of Fixing Shaft
Clamp
Production speed
10-55m/Min (20-30 degree summer 20-55m/min , 0-10 degree Winter 10-35m/min )
Way Of Cutting
58*38*1.5mm Circular Cutting Blade
Way Of Gluing
Single / Double Side
Blade
6 Groups
Paper Reel Stand
6 Plies Paper Reel Stand
Glue System
2 plies independent glue tank
Main Motor
1.5kwx2 CHINA KEJIN
Inverter
4kw Germany Siemens
Servo Motor
1kw Germany Siemens
Pneumatic Component
China Taiwan Airtac
low-voltage apparatus
Schneider
Control System
China ,by Sunlight Machinery
Linear Guide System
JAPAN THK
Operator
1-2 Persons 1-2
Main Part Dimension
3550*1100*1450mm
Overall Dimension
7500*4800*1500mm
Weight
2100kgs

Main Features

1,Adopt human-machine operation interface, more convenient for operation;

2,Aluminium Paper reeling stand , Slitting rolls are easily placed into reel stand

3,Surface Paper is Single side cotaing , middle layer paper is double glue coating

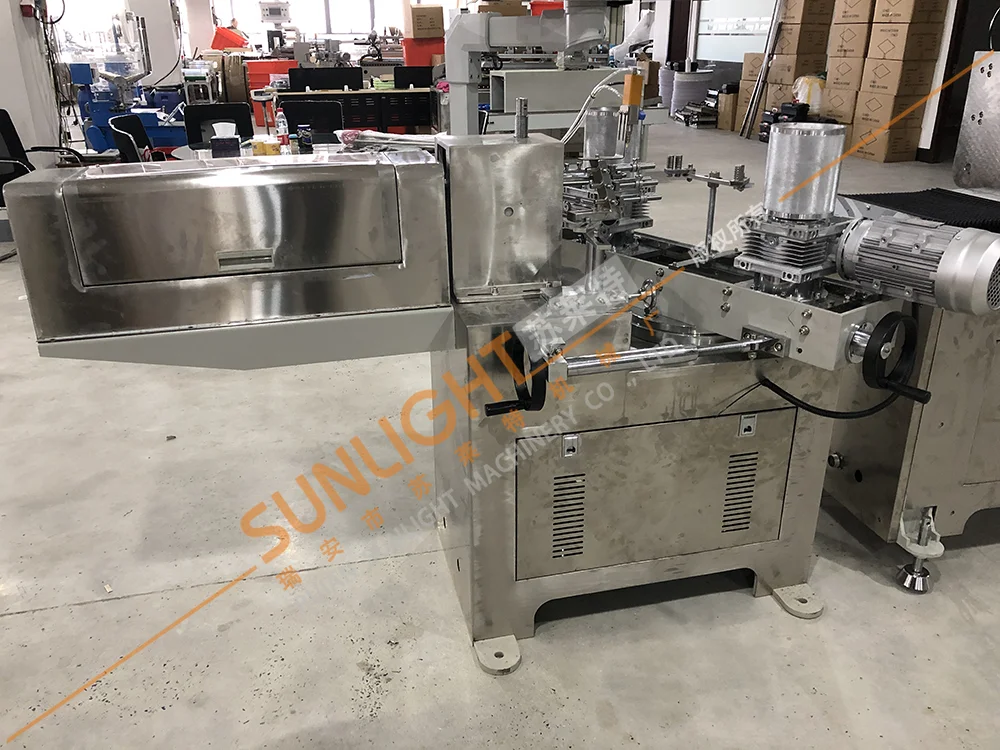

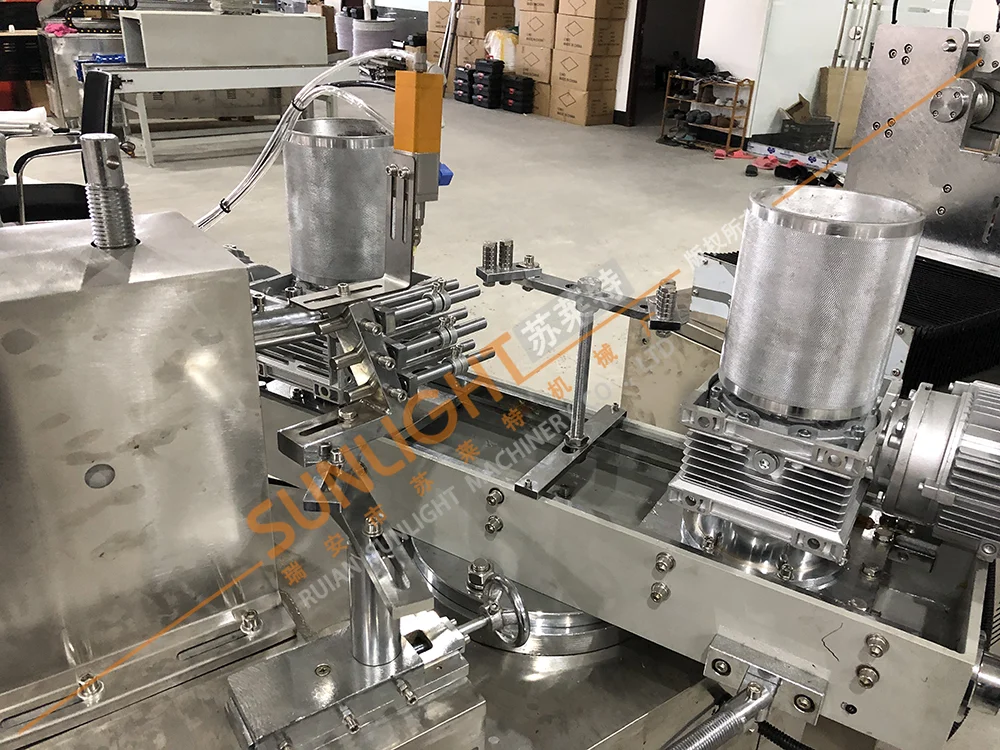

4,Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven)

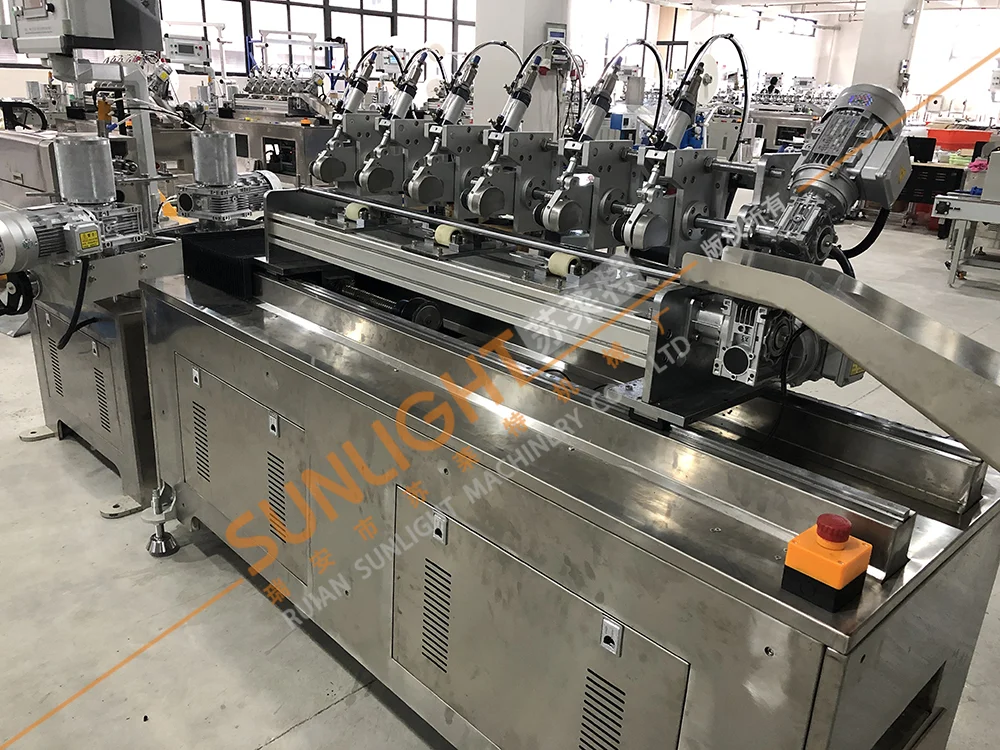

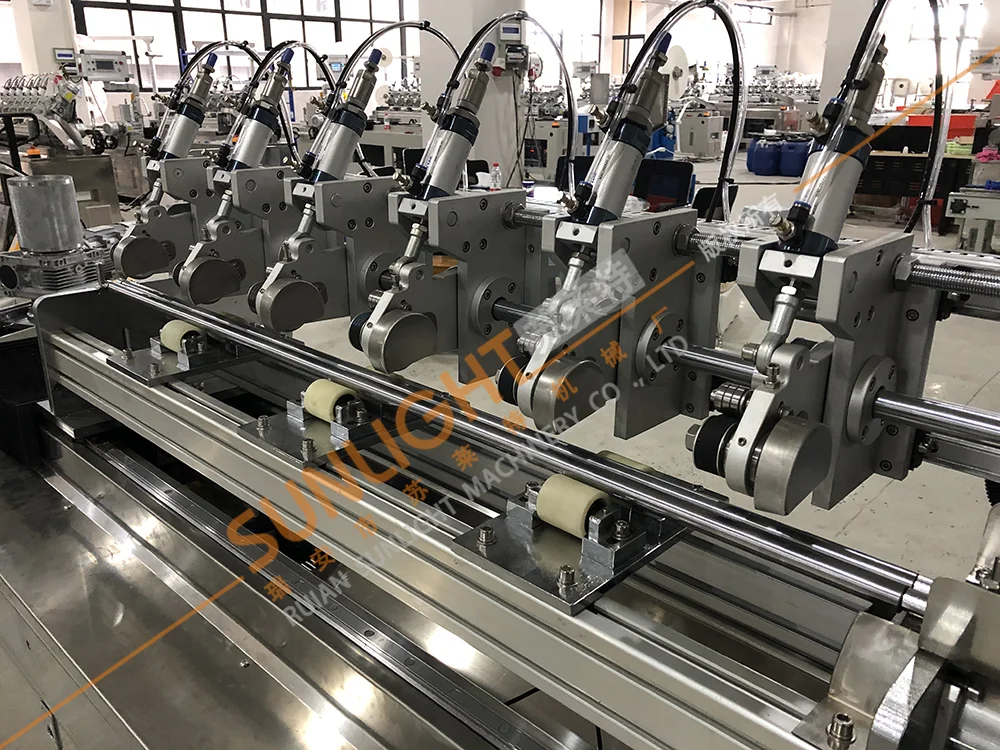

5,6 knife System in-line cutting unit controlled by encoder .,cutting final paper tube directly , Servo motor control cutting system.

6. Stainless steel body ,meet food grade production standards .

7 , Protection cover ,conform to ISO and 6S factory inspection standard

8,Automatic Stop when the paper break

9.Glue tank constant temperature system , Improve glue stability.

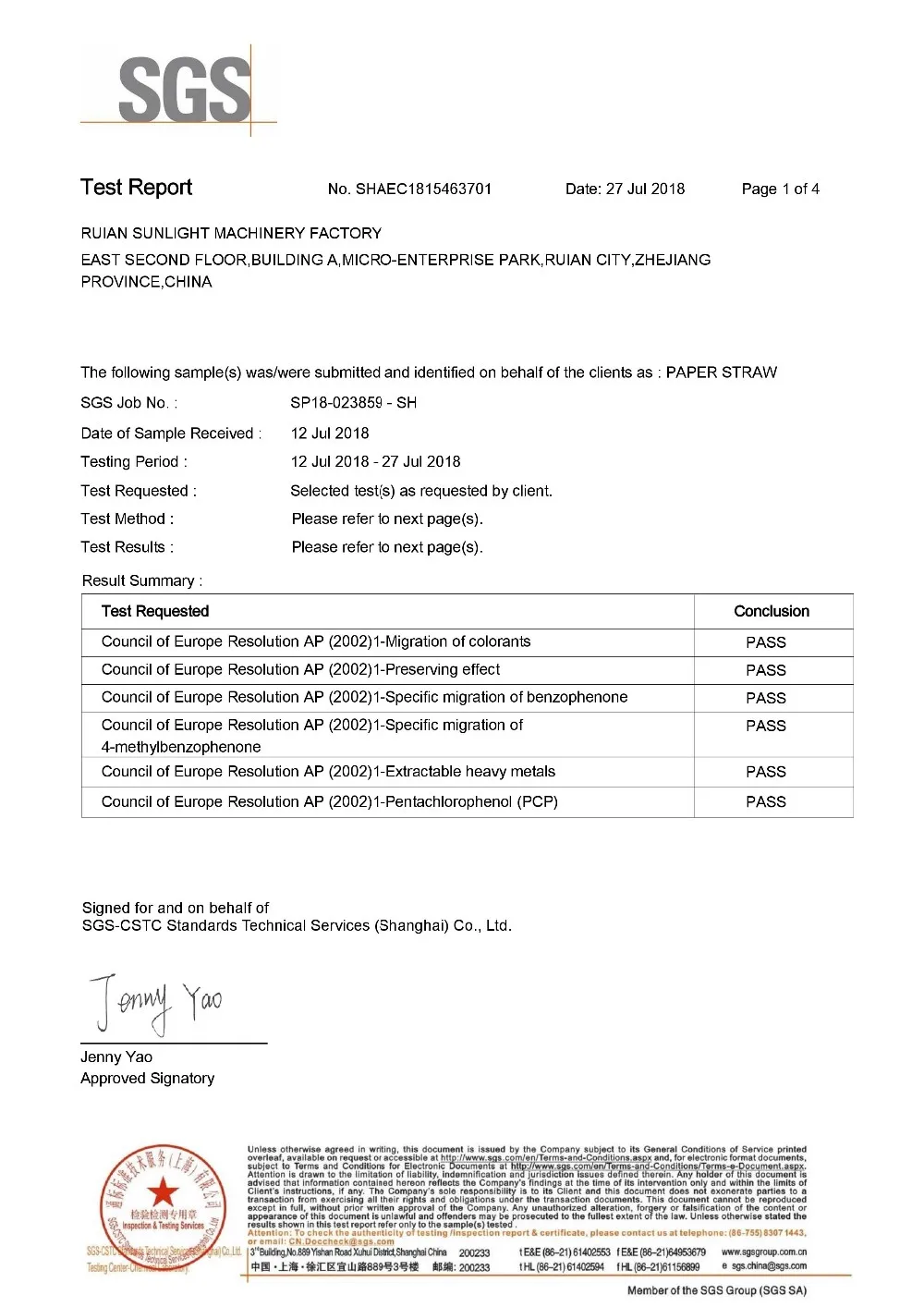

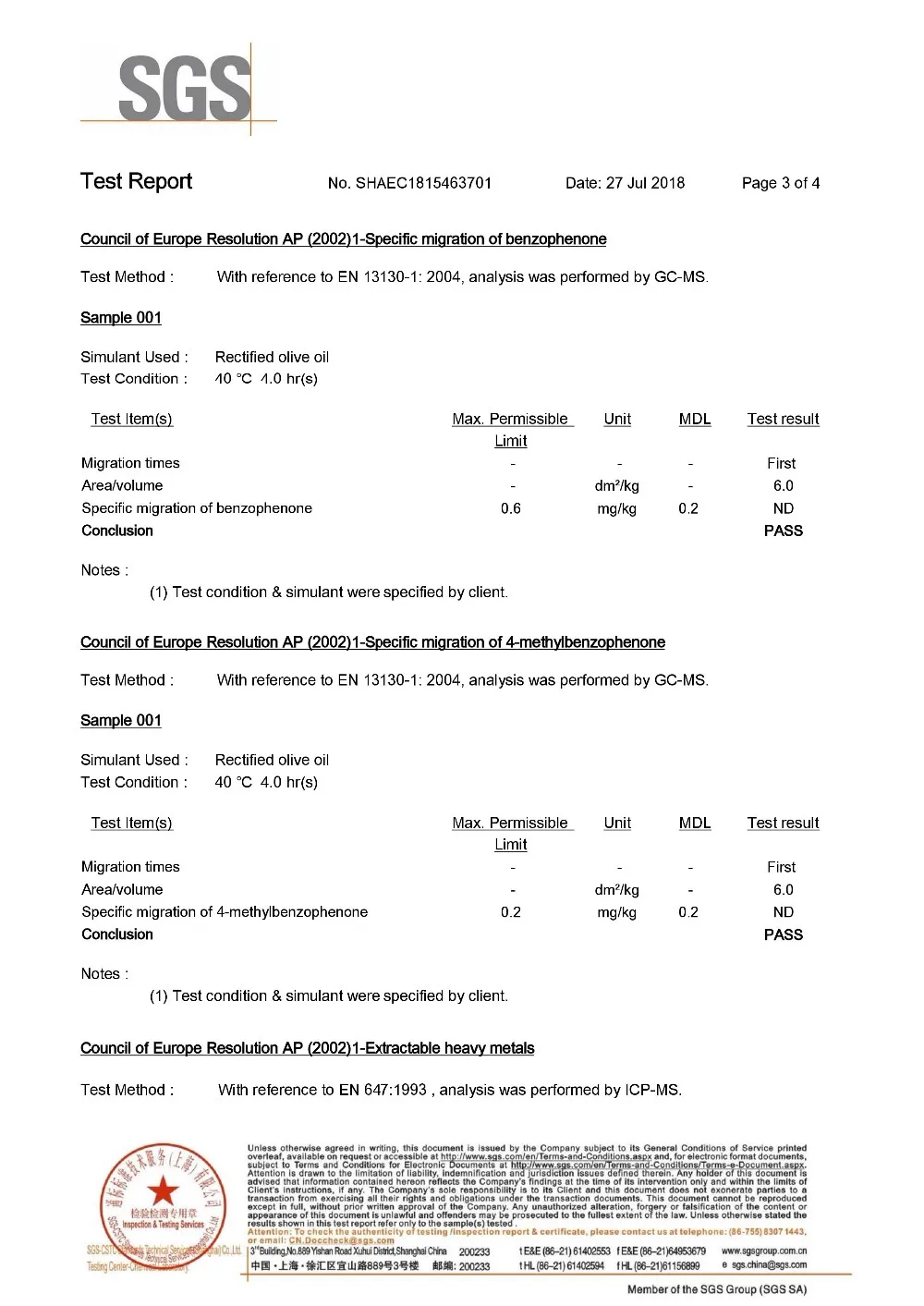

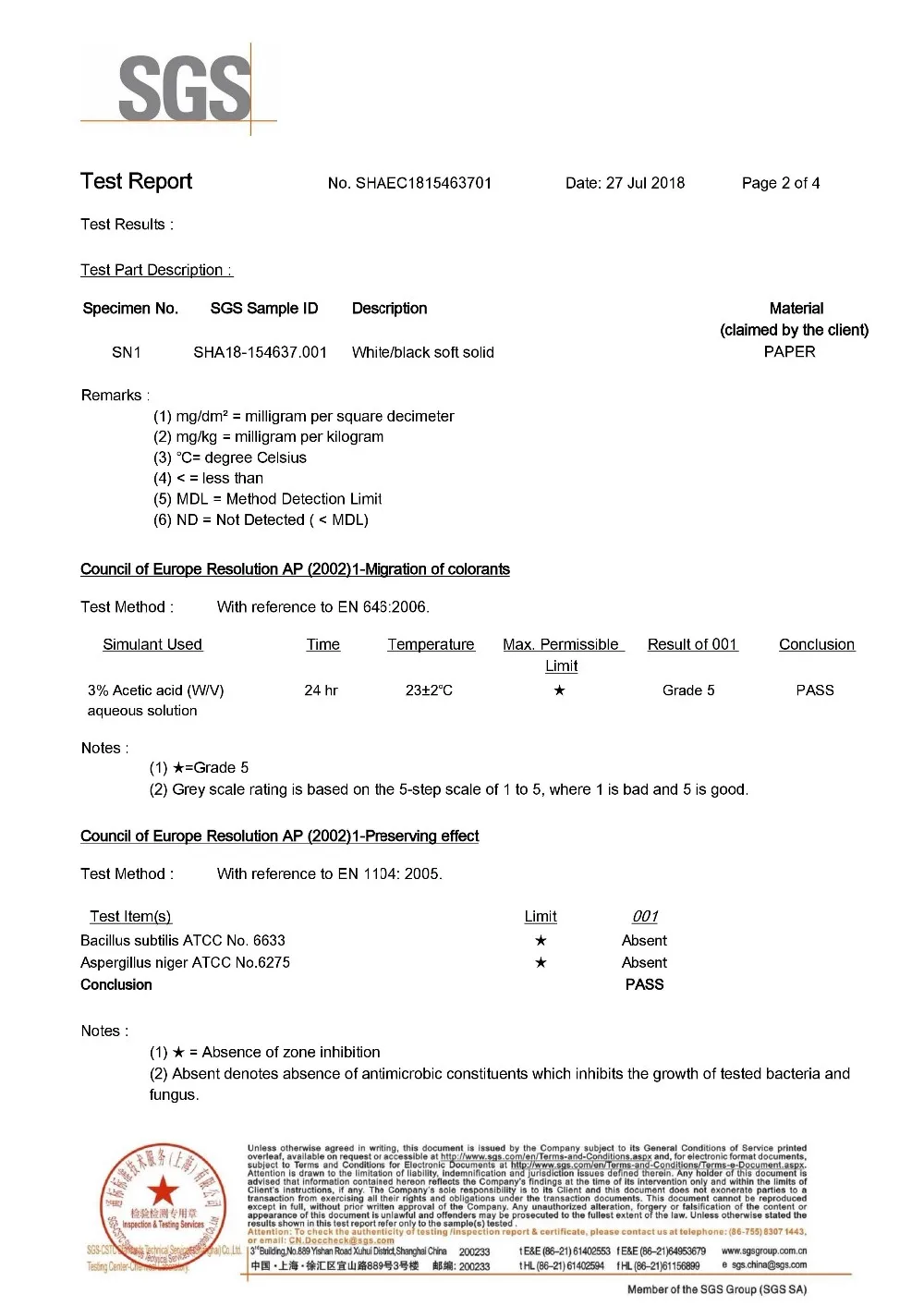

Certifications
Detailed Images

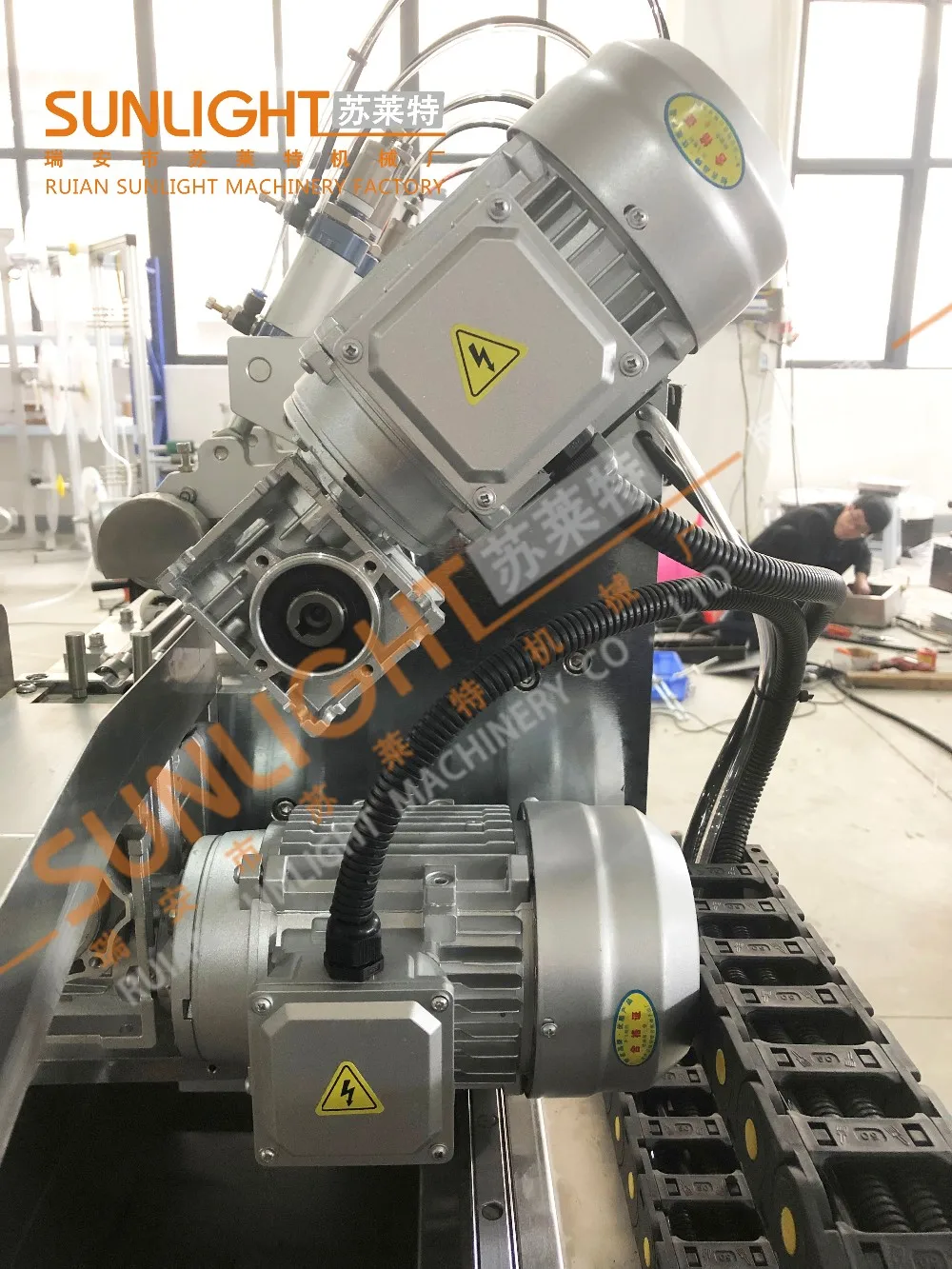

KEJIAN Main Motor

Name: main motor

Brand:kejian

Original: china

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

seimens servo motor

Name: servo motor
Brand: seimens
Original: Germany
World-famous servo motor and inverter, high precision position control ,high efficiency.

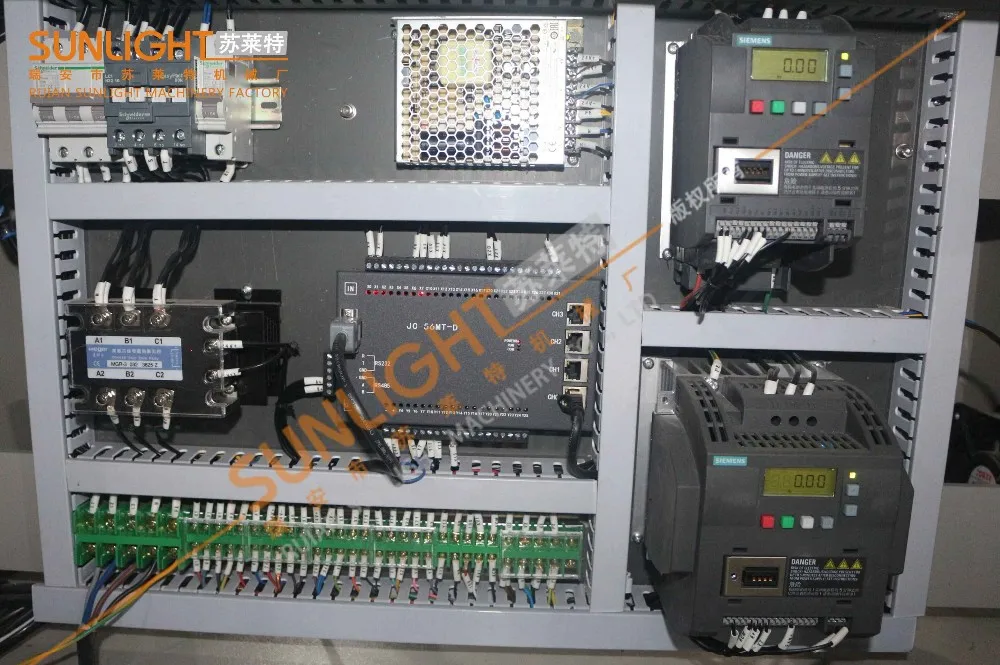

Seimens inverter use micro card to store the relevant program,it is more convinent for engineer doing debugging at the first.

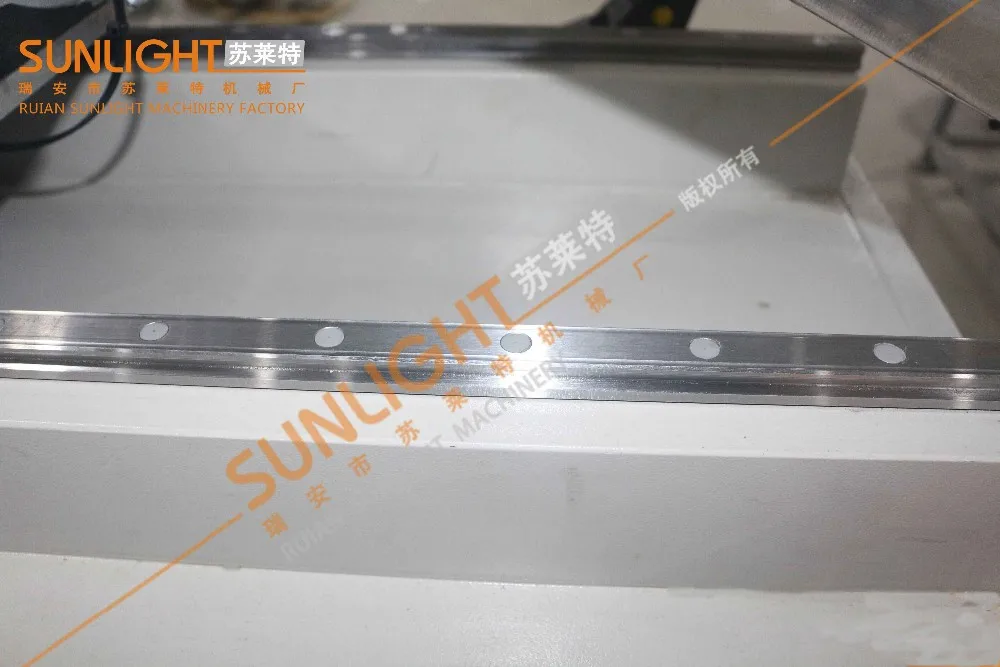

THK linear motion guide

Name: LINEAR GUIDE
Brand: THK
Original: JAPAN
THK is the world's leading supplier of precision linear motion guides,the products has long service life,operation smoothly, less maintenance needs

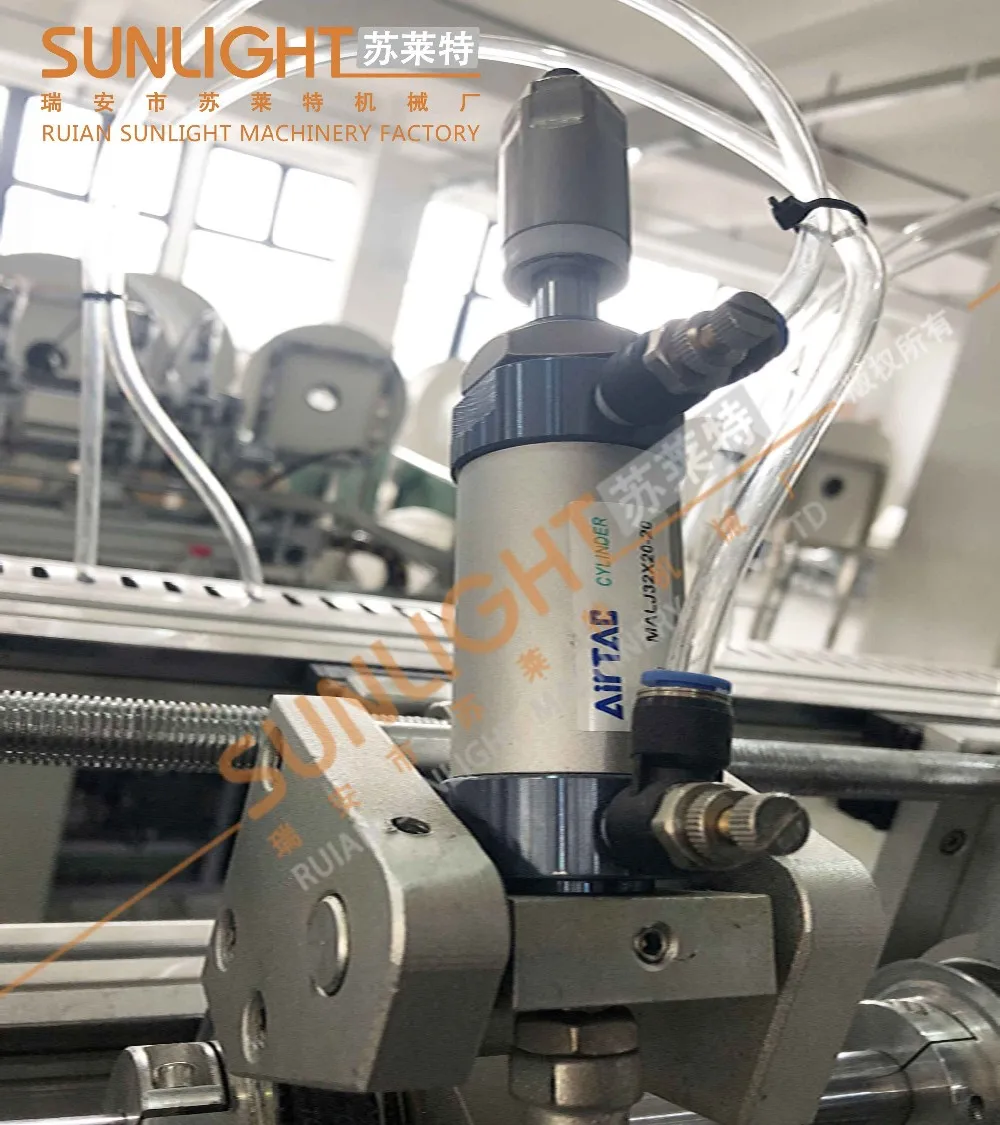

AIRTAC AIR CYLINDER

Name: air cylinder
Brand: airtac
Original: taiwan
Airtac air cylinder specialize in this field for many years, products has longer serive life than others.



one set paper straw machine need air source 2-3 map, air

consumption 70L per min.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

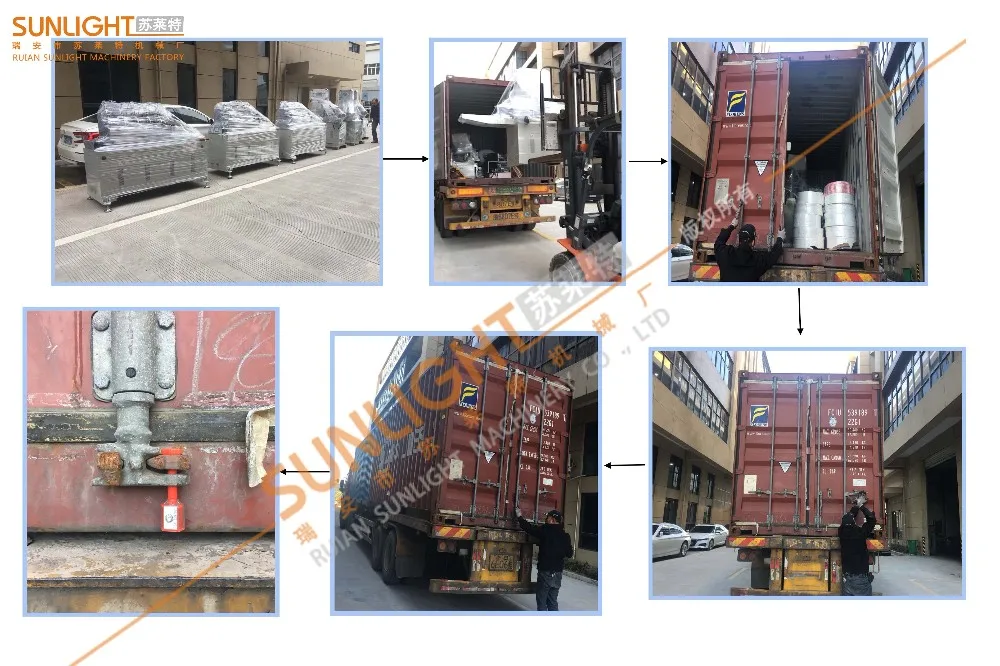

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

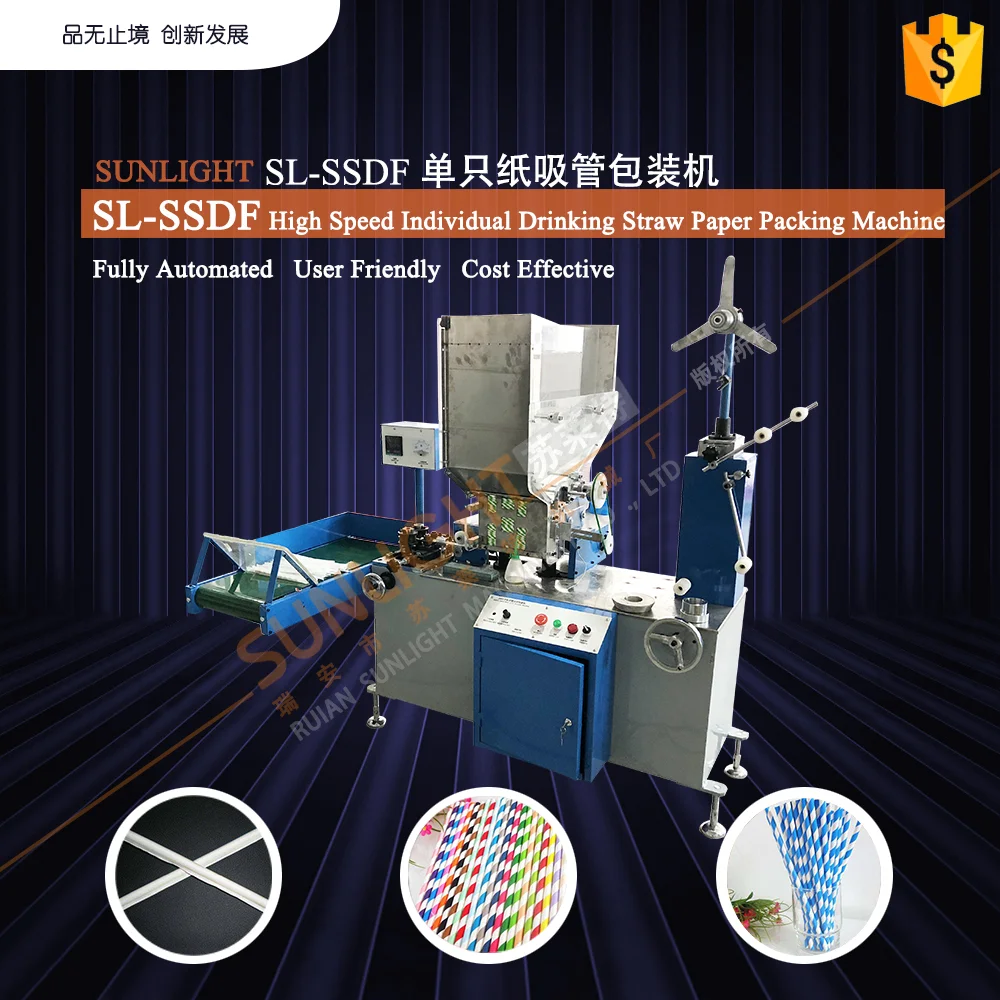

PAPER STRAW PACKING MACHINE

91.8% Response Rate

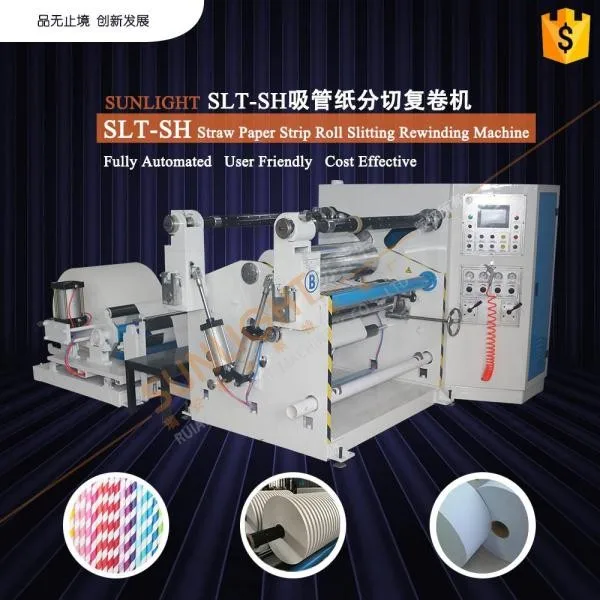

STRAW PAPER SLITTER REWINDER MACHINE
