power supply black 7.62mm pitch pcb barrier terminal block with cover

Supplier: Cixi Kaifeng Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Candy Yu
Price: $0.01 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Model Number:	HB-762M;
Conductor Size:	14-22AWG;	Type:	Barrier;
Number of Contacts:	2-24;	Payment Terms:	L/C,T/T;
Wire range:	14-22AWG 2.5m*m;	Pitch:	7.62mm;
Packaging Detail:	Tube ,tape and reel as inner packaging, carton box as outer packaging for power supply black 7.62mm pitch pcb barrier terminal block with cover;	Rated current:	15A(UL) 24A(IEC);
Insulation resistance:	500mΩ/DC500V;	Material:	PA66, UL94V-0;
Temp range:	-40°C~+105°C;	Product name:	power supply black 7.62mm pitch pcb barrier terminal block with cover;
Rated voltage:	300V(UL) 450V(IEC);	Brand Name:	DFT kaifeng;
Port:	any port of China;	Supply Ability:	100000 Piece/Pieces per Day 7.62mm pitch pcb barrier terminal block with cover;
Withstanding voltage:	AC2000V/1min;	Application:	pcb multiple functions;

Product Description

Product Name: power supply black 7.62mm pitch pcb barrier terminal block with cover

MATERIAL
Screw:	M3.5, steel, ni plated
Terminal:	0.7t brass, tin plated
Housing:	PA66, UL94V-0

ELECTRICAL
Rated Voltage:	300V(UL) 450V(IEC)
Rated Current:	15A(UL) 24A(IEC)
Insulation resistance:	500mΩ/DC500V
Withstanding voltage:	AC2000V/1min
Wire range:	14-22AWG 2.5m*m

MECHANICAL
Temp range:	-40°C~+105°C
Torque:	0.8N.m 7.02Lb.in

Transparent cover: PA66, UL94V-0, dust-protected

Screw: M3.5, steel, ni plated, anti-vibration

Weld leg: brass, tin plated, four prismatic

Housing: PA66,UL94V-0, high solidity

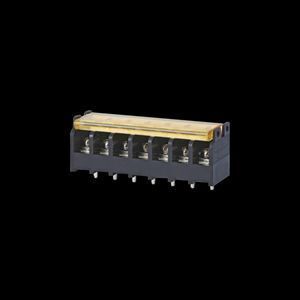

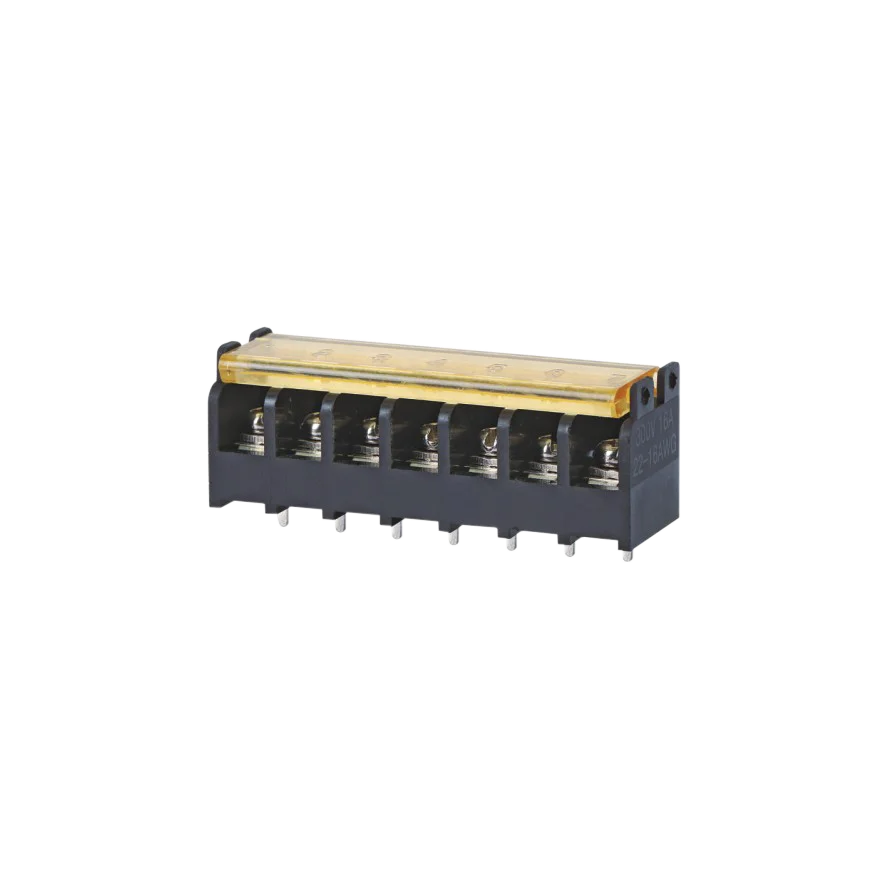

HB-762M(with cover)

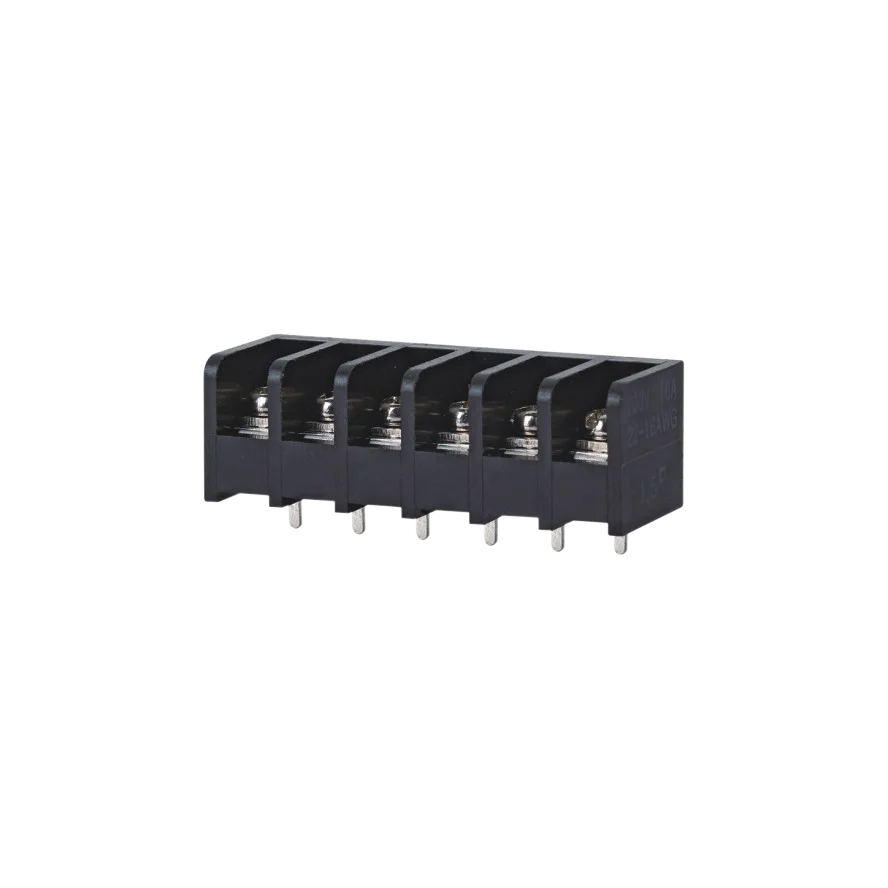

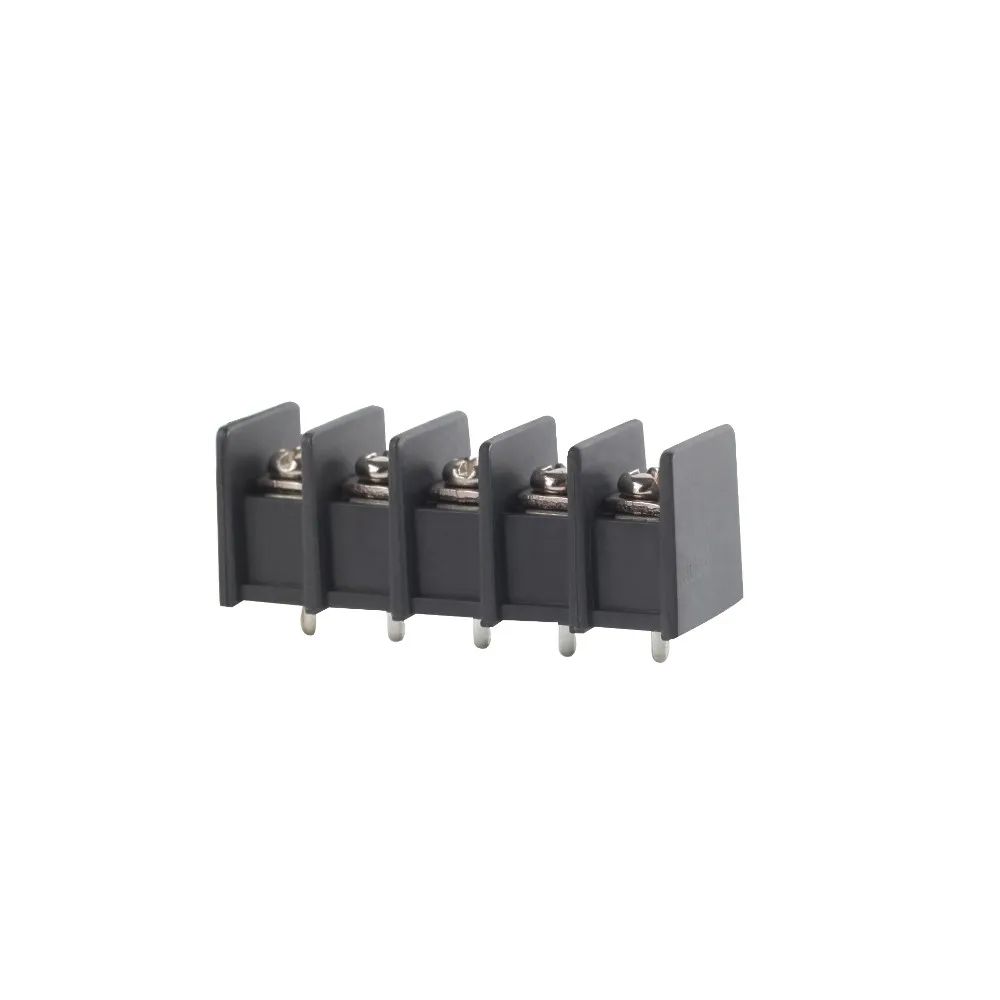

HB-762(with no cover)

Features

●Can be supplied in any number of positions
●Special wire protector design to ensure reliable wire clamping
●UL 94-0 grade fire retardant engineering plastic used for the housing
●Be capable of clamping a wide range of wire diameters

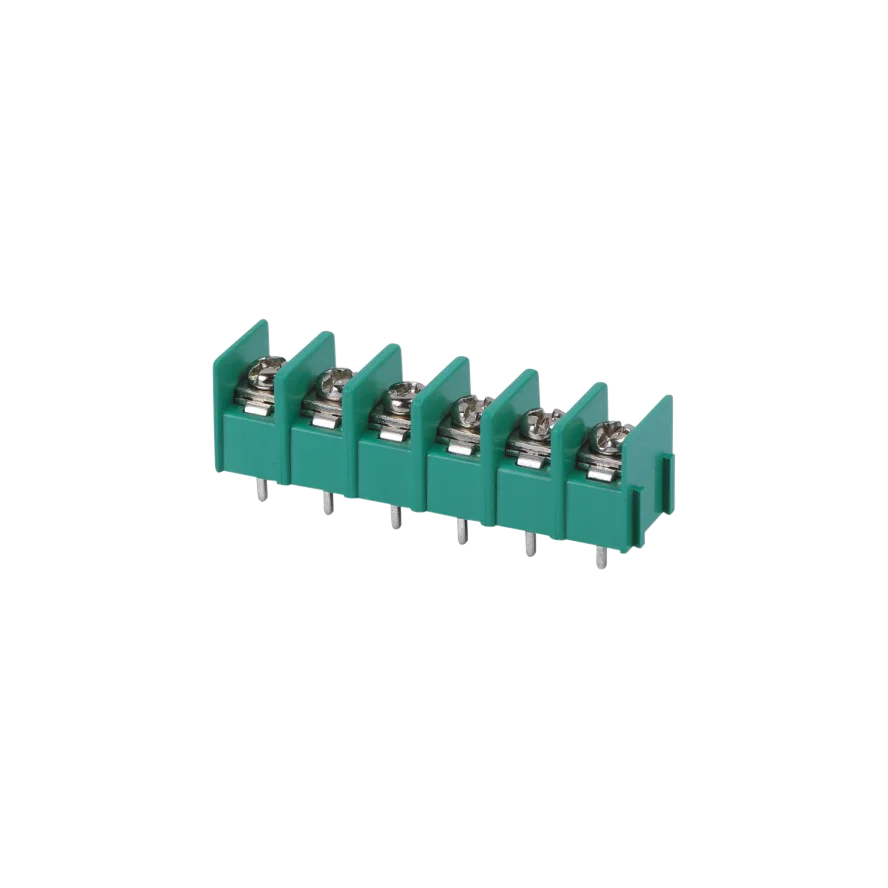

●Wide choice of pitch&terminal

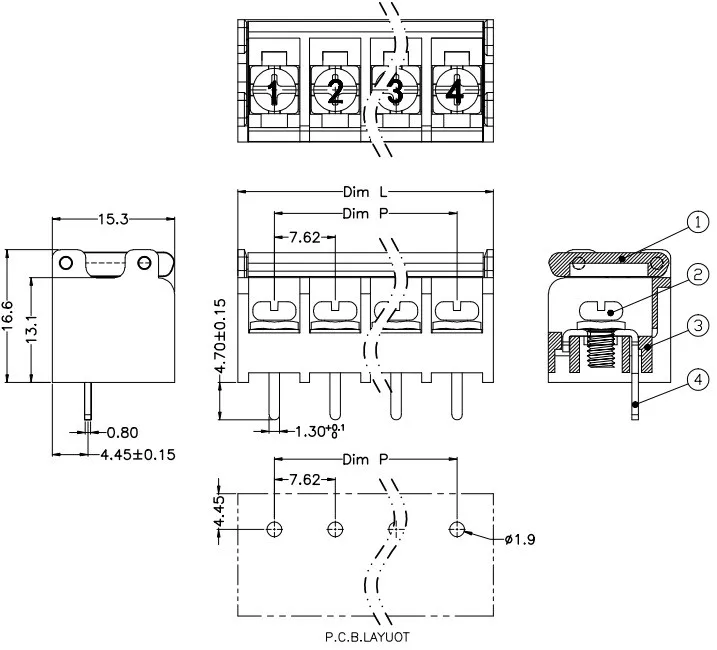

Drawing

HB-762M
