Wago Original 3 Pin Push Wire Connector with Levers
- 0.19 >=2 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| type: | spring | Number of contacts: | 1 - 10 |
| Conductor size: | 11 - 20 AWG | Wiring capacity: | 0.2 - 4.0 mm² |
| pin: | 2 pins | Rated voltage: | 450V |
| model: | 221-413 | Package size per batch: | 18X10X11 cm |
| color: | orange | ampere: | 32A |
| Contact materials: | Copper Plated/Stainless Steel Spring | Origin: | Germany |
| brand: | Wanke | Sales unit: | Multiples of 50 |
| Main application wire: | Junction boxes, generator rooms and compact electrical equipment | Packaging Details: | 100pcs/box;0.2kgs/box |
| Insulation resistance: | 94-V0 | Gross weight per batch: | 0.500 kg |
| Certificate: | Certification, ENEC, PSE | Material: | PA66 94-V0 |
Related Products
Product Description
Push-in wire connectors for easy wiring of all conductors
- Wiring up to 4mm2
- Complies with cUL, ENEC, PSE
- For junction boxes, power stations and compact electrical equipment, LED luminaires

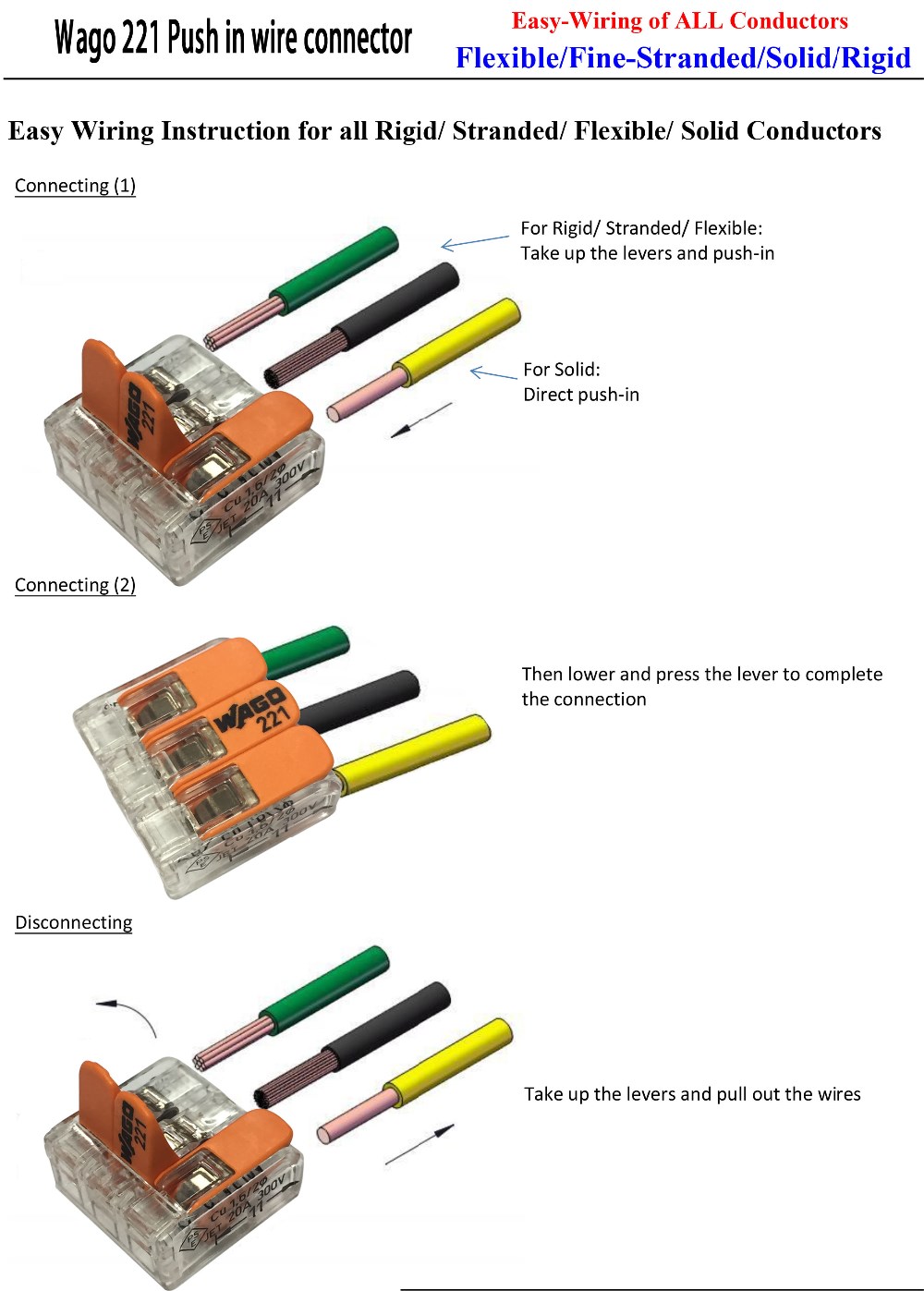

-Each terminal block has a lever for easy push-in and disconnection of flexible conductors
all types of conductors
- Strip length 11mm
detailed image
Specification
1. Shell: PC+PA66, 94V-0
2. Metal part: copper plated/stainless steel spring
3. Voltage/ampere: 450V/32A;
5. Wiring capacity: 0.2-4.0 mm2
