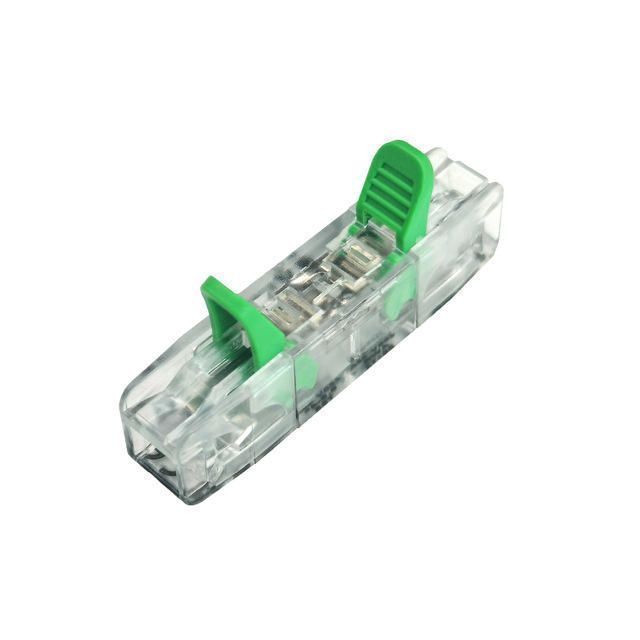

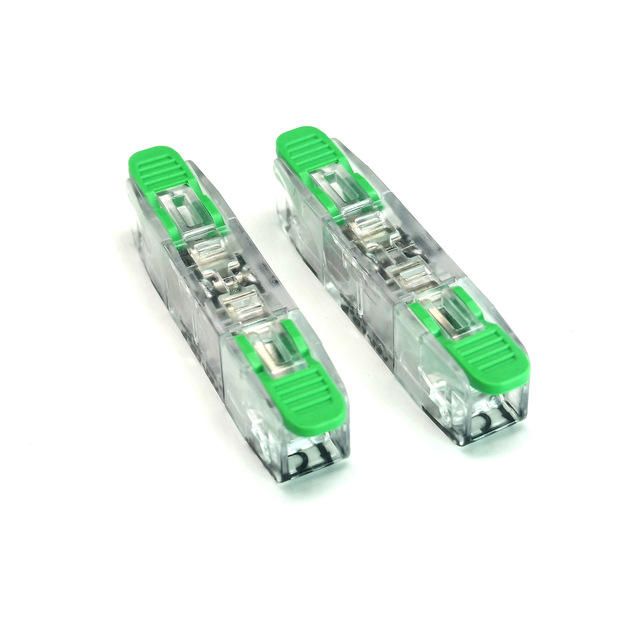

1 In 1 Out Quick Wire Connector Terminal Connection Block Wiring Cable With Lever
- 0.16 500 - 4999 pieces
- 0.15 5000 - 9999 pieces
- 0.14 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Rated voltage: | 600V AC (UL); 450V AC (International Electrotechnical) | Origin: | Guangdong, China |
| Number of poles: | 2P, 1 in 1 out | Flammable: | UL94V-2 |
| brand: | come | Wiring specification: | 24-12 AWG (American Standard); 0.2-4 mm² (IEC) |
| Insulation Materials: | PA66+PC | UL file number: | E497783 |
| port: | Guangzhou port or Shenzhen port | payment terms: | Western Union, T/T, MoneyGram |
| model: | OJ-281 | Conductor size: | 12 - 24 AWG |
| Certificate: | ENEC, CQC, CE | Ambient temperature: | T85 |
| Material: | no screws | Rated current: | 32A (IEC & UL) |
| type: | insert |
Product Description
brand | come |
model | OJ-281 |
number of contacts | 1 |
type | insert |
rated current | 32A (IEC & UL) |
Rated voltage | 600V AC (UL); 450V AC (International Electrotechnical) |
flammable | UL94V-2 |
Wiring specification | 24-12 AWG (American Standard); 0.2-4 mm² (IEC) |
UL file number | E497783 |
Insulation Materials | PA66+PC |
number of poles | 1P, 1 in 1 out |
ambient temperature | T85 |
certified | UL & CUL, ENEC, CQC, CE |
Material | no screws |
Key words:
Wire Connector Terminal Blocks Universal Quick Connect Cable Connectors for Cable Connection
Threadless quick connectors for wiring, connection blocks
