1-12 pin excellent quality and price slide connector SMD/SMT piano type dip switch

  • 0.01 >=1000 pieces
Min. Order: 1000 pieces FOB PRICE
Contact Supplier View Company
Registered Supplier Direct Contact Inquiry via Message
Product Details
Capacitance:Max 5pF;Pitch:2.54mm;
Payment Terms:L/C,T/T,MoneyGram,Paypal;The loop:Single contact single slection;
Operating force:8N(max);Packaging Detail:Take strong plastic bags/boxes/cartons for package, tube, tape and reel packing, Clamshell packing etc are available for 1-12 pin excellent quality and price mini SMD/SMT piano type dip switch;
Model Number:KF1002;Insulation resistance:(At 500VDC)100MΩ/min;
Supply Ability:100000 Piece/Pieces per Day SMD/SMT piano type dip switch;Max. Current:25mA;
Max. Voltage:24VDC;Product name:SMD/SMT piano type dip switch;
Place of Origin:Zhejiang China;Stroke:2.00mm;
Brand Name:DFT;Number of contacts:6P/1-12P available;
Dielectric strength:500VAC, 1min;Port:Any port of China;
Operation temp.:-20℃~+70℃;
Product Description

Product name: 1-12 pin excellent quality and price mini SMD/SMT piano type dip switch

MATERIAL
Base:
UL94V-0 PBT Thermoplastic, black
Cover:
UL94V-0 PBT Thermoplastic, red, blue, black
Button:
UL94V-0 PA66 White
Terminal:
Phosphor Bronze, Gold plating
ELECTRICAL
Electrical life:
2000 operations per switch 24VDC, 25mA
Non-swithing rating:
100mA, 50VDC
Switching rating:
25mA, 24VDC
The contact impedance:
A lnitial value of the maximum 50mΩ, B testing after the maximum 100mΩ
Insulation resistance:
(At 500VDC)100MΩ/Min
Dielectric strength:
500VDC, 1min
Capacitance:
Max 5pF
The loop:
Single contact single selection
MECHANICAL
Operating force:
8N(max)
Stroke:
2.00mm
Operating temp.:
-20°C~+70°C
Stodge temp.:
-40°C~+85°C

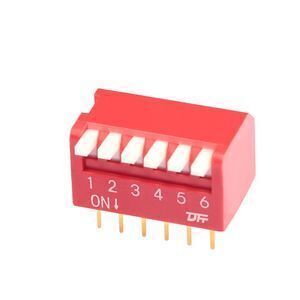

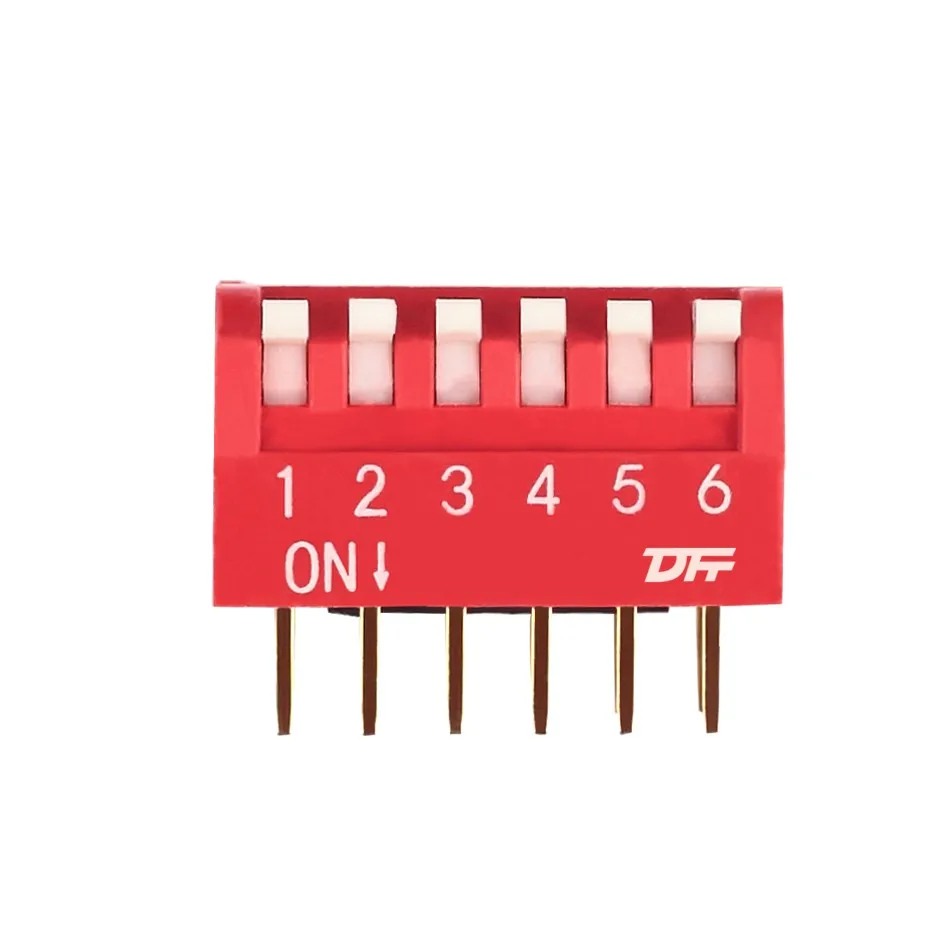

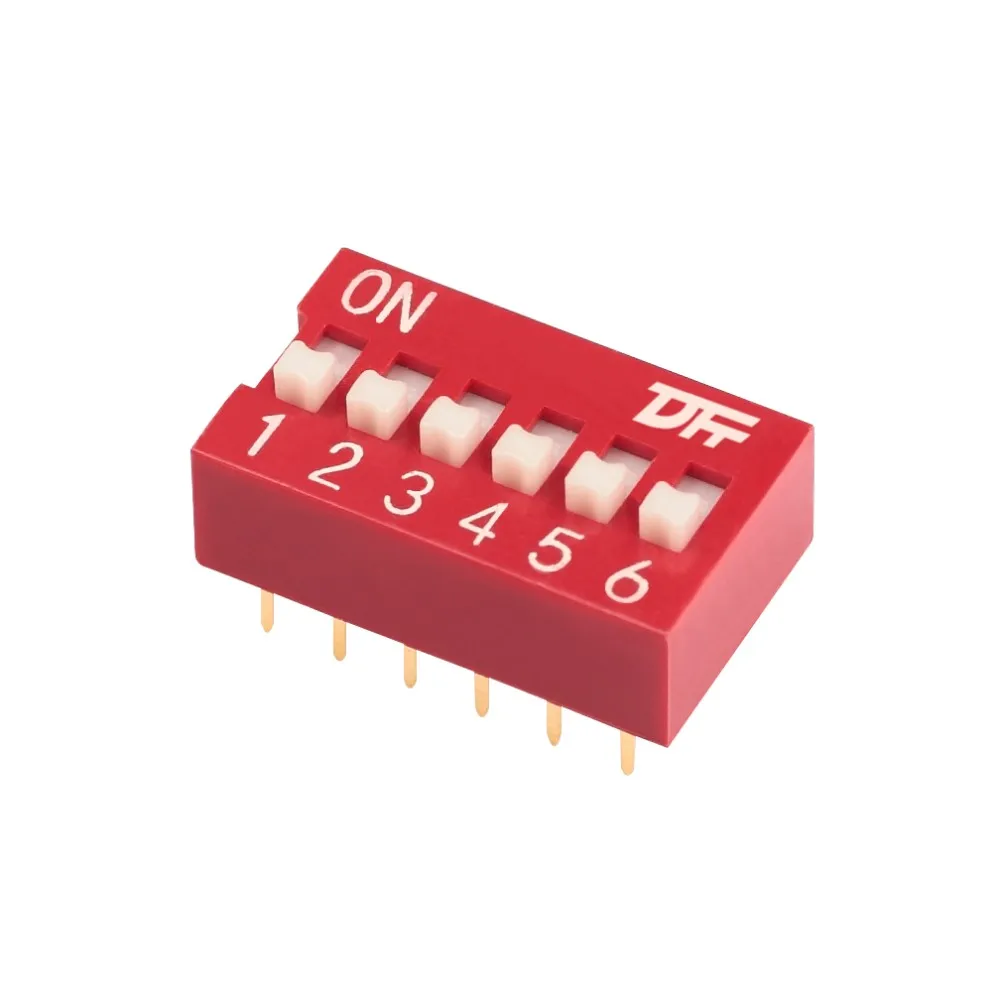

KF1002(RED)

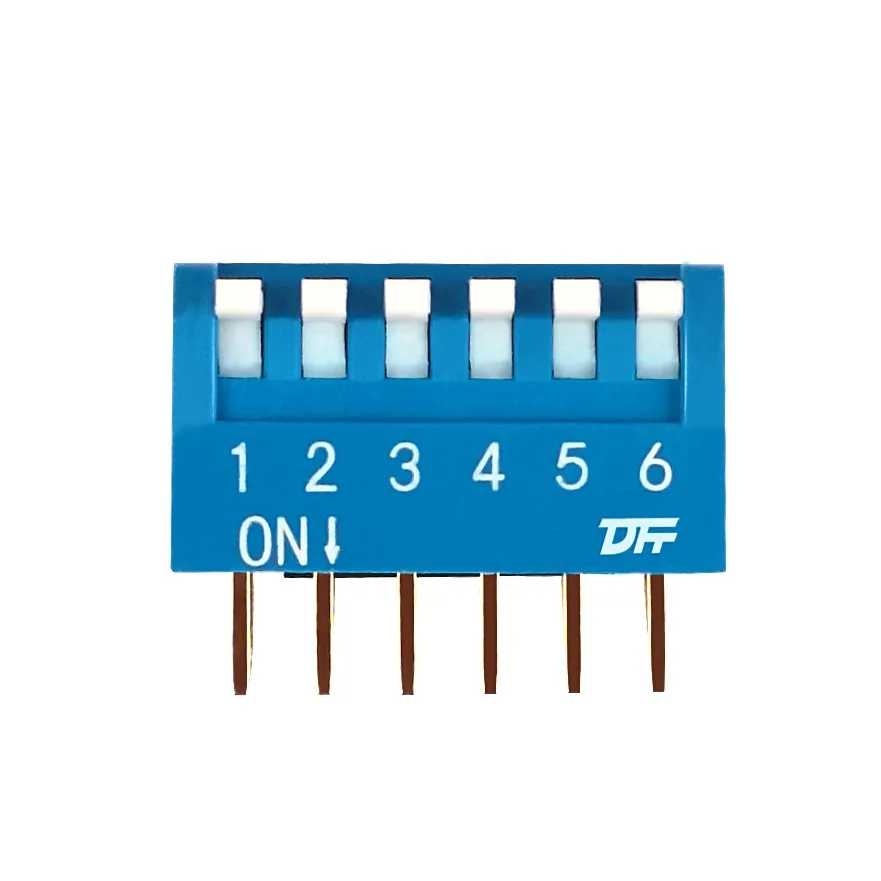

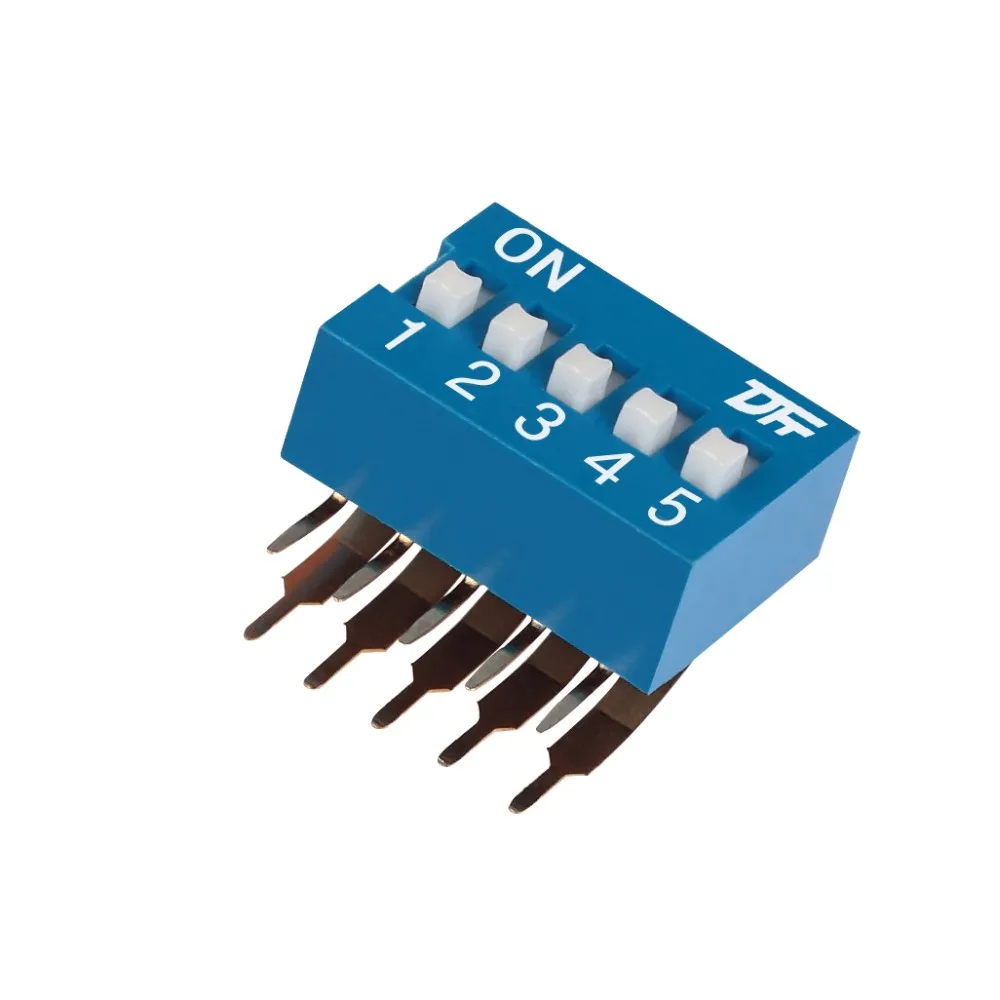

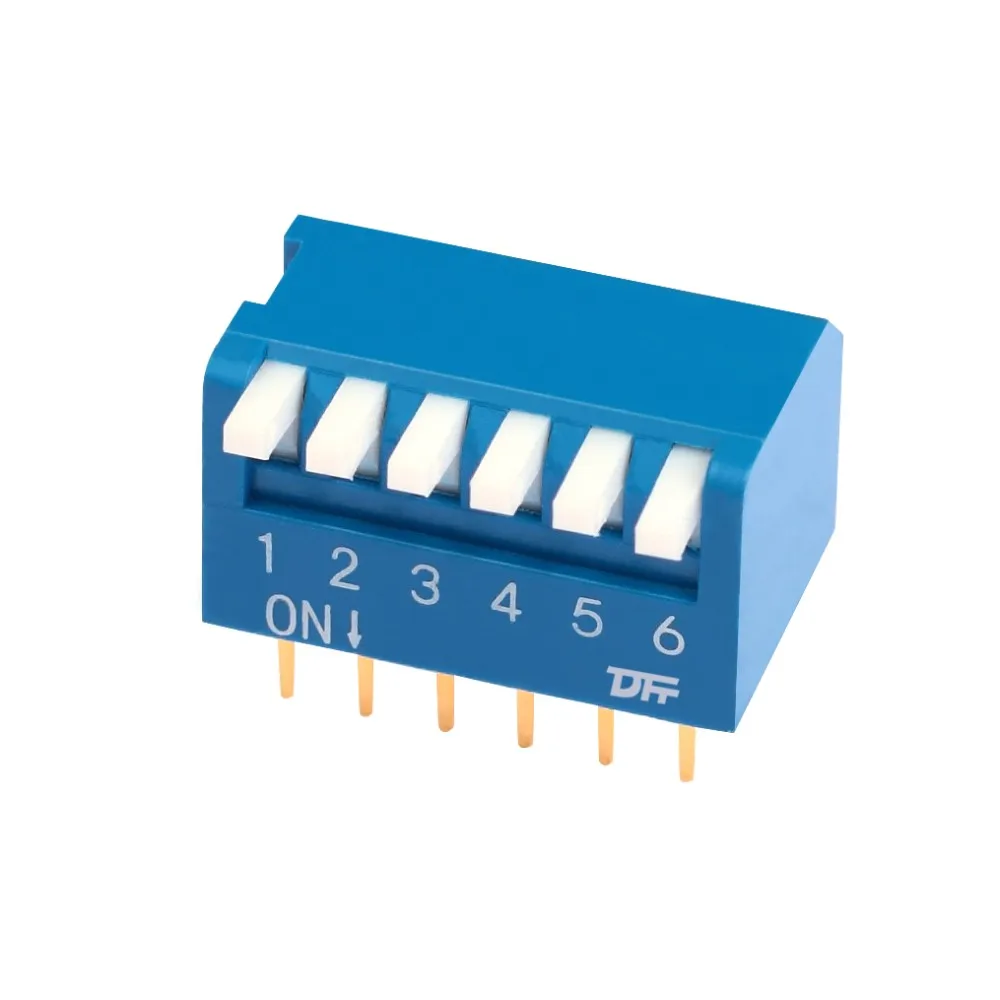

KF1002(BLUE)

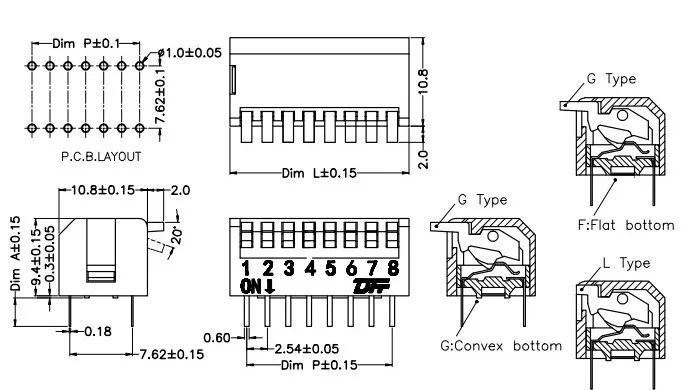

Drawing
Features

Features:

● Gold-plated contact points & double movable contacts to ensure reliability and longer life expectancy
● Unique twin suspended springs offer high resistance to physical shock & vibration
● Clear ON/OFF actuation clicks
● Insert-molding technology avoids epoxy and water from intruding

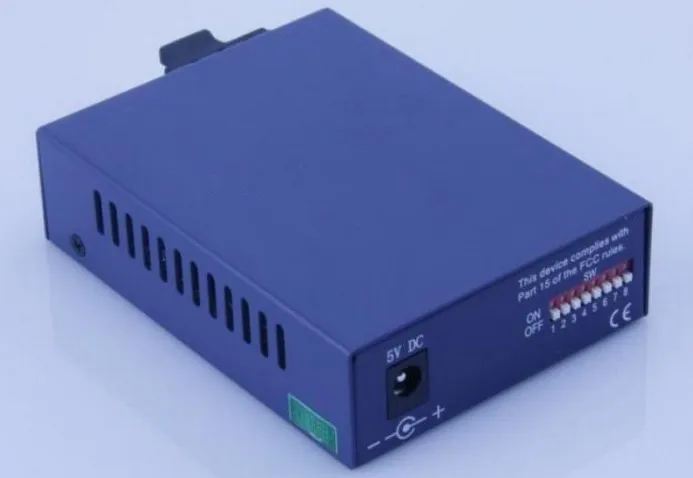

Application



Application of multiple functions

● light control sensor
● Temperature setting water heater
● Air conditioning system controller
