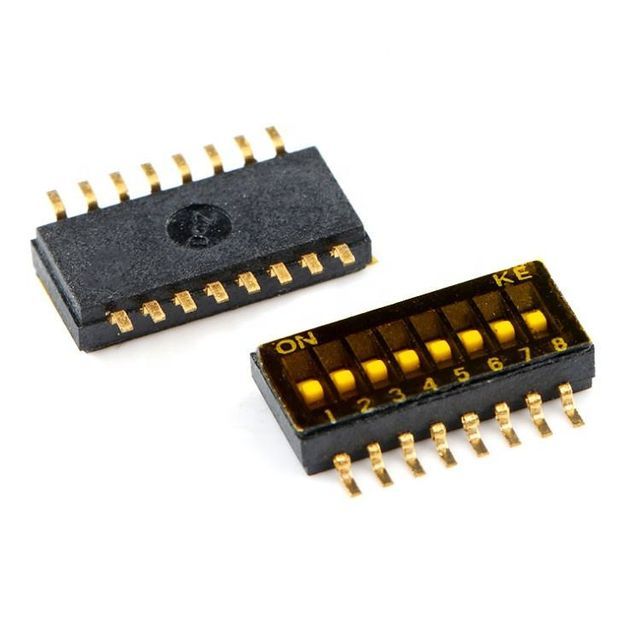

klavier dial-schalter 1.27mm 8 bit SMD SMT 127mm dial switch dial switch
- 0.36 100 - 9999 pieces
- 0.34 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| product name: | DIP switch | asphalt: | 1.27 mm |
| Origin: | Guangdong, China | Certification: | CE ROHS, CE ROHS |
| shape: | piano type | brand: | Shenzhen Gao Qi |
| payment terms: | wire transfer | maximum. current: | 2A |
| cover: | UL94V-O PBT thermoplastic | Whether smart: | No |
| Supply capacity: | DIP switch | Package preview: | |
| touch: | copper alloy | Material: | plastic, copper |
| model: | DIP-1.27-08P | Packaging Details: | bag, carton |
| maximum. Voltage: | 300V | color: | Black |
| thing: | SMD DIP switch |
Specification
product name | SMD DIP switch 1.27 pitch DIP switch 1 2 3 4 5 6 7 8 9 10 11 12-pin DIP switch |
Item Number | DIP-1.27-08P switch electronic components |
feature | Long life and good quality |
electronic life | >10000 cycles |
Mechanical life | >10000 cycles |
Contact resistance | 100mΩ max |
Insulation resistance | Minimum 1000 MΩ 500VDC |
withstand voltage | >1500V/min |
Dielectric resistance | 500VAC for 1 minute |
Storage temperature | -25℃~+85℃ |
Product Description
If you want more informationDIP switch, Welcome tocontact us!
