green pcb small pitch voltage clamp connector 2.54mm terminal block

  • 0.01 >=1000 pieces
Min. Order: 1000 pieces FOB PRICE
Contact Supplier View Company
Registered Supplier Direct Contact Inquiry via Message
Product Details
Conductor Size:26-18AWG 1.0m*m;Temp range:-40°C~+105°C;
Port:any port of China;Packaging Detail:Tube ,tape and reel as inner packaging, carton box as outer packaging for green pcb small pitch voltage clamp connector 2.54mm terminal block;
Model Number:KF120;Brand Name:DFT;
Material:PA66, UL94V-0;Contact resistance:20mΩ;
Supply Ability:100000 Piece/Pieces per Day 2.54mm terminal block;Rated voltage/current:150V/6A(UL) 130V/8A(IEC);
Application:PCB Multiple Functions;Pitch:2.54mm;
Max soldering:+250°C, 5sec;Product name:green pcb small pitch voltage clamp connector 2.54mm terminal block;
Place of Origin:Zhejiang China;Screw:M1.6, steel, zinc plated;
Insulation resistance:500mΩ/DC500V;Payment Terms:L/C,T/T;
Number of Contacts:2-24;Type:Screw;
Product Description

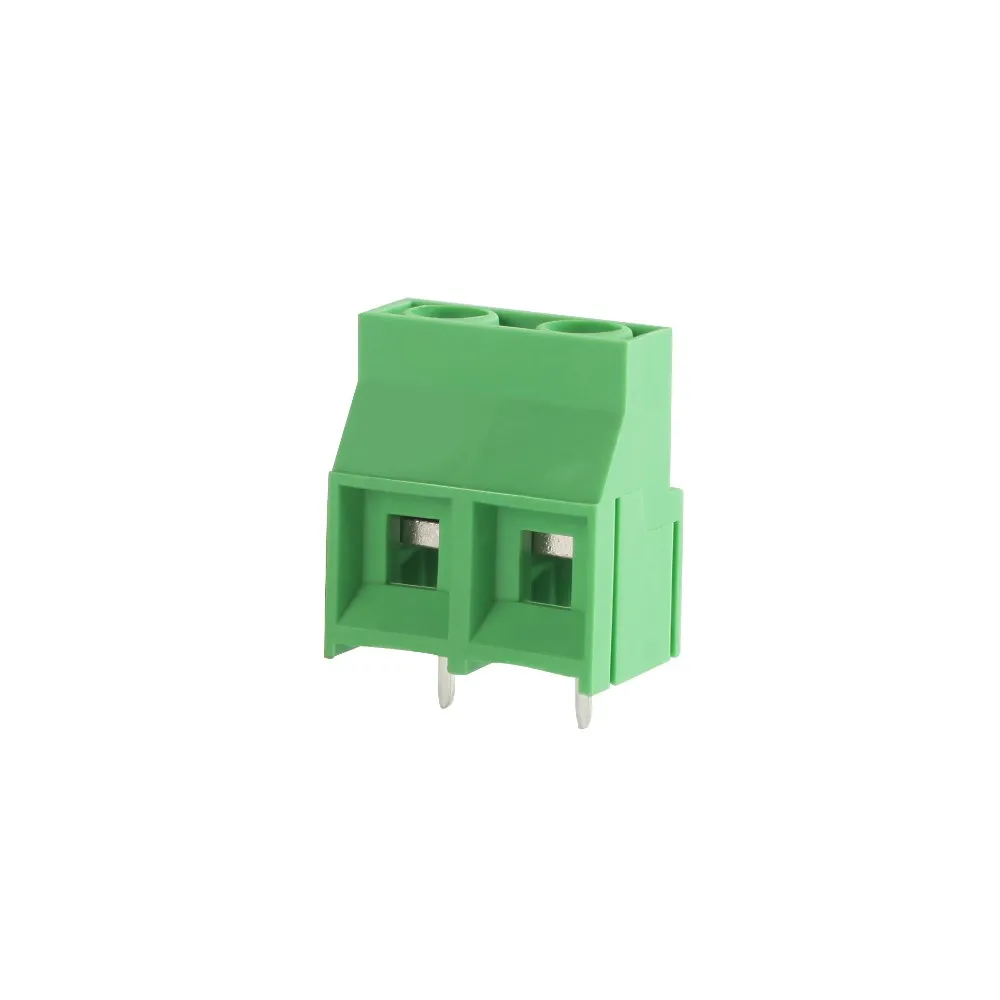

Product Name: green pcb small pitch voltage clamp connector 2.54mm terminal block

Material
Screw:
M1.6, steel, zinc plated
Clamp:
Brass, ni plated
Pin header:
Brass, tin plated
Housing:
PA66, UL94V-0
Electrical
Rated voltage/current:
150V/6A(UL) 130V/8A(IEC)
Contact Resistance:
20mΩ
Insulation Resistance:
500mΩ/DC500V
Withstanding voltage:
AC1500V/1min
Wire range:
26-18AWG 1.0m*m
Mechanical
Temp range:
-40°C~+105°C
Max soldering:
+250°C, 5sec
Torque:
0.1N.m 0.89Lb.in
Strip length:
3.7-4.7mm

KF120

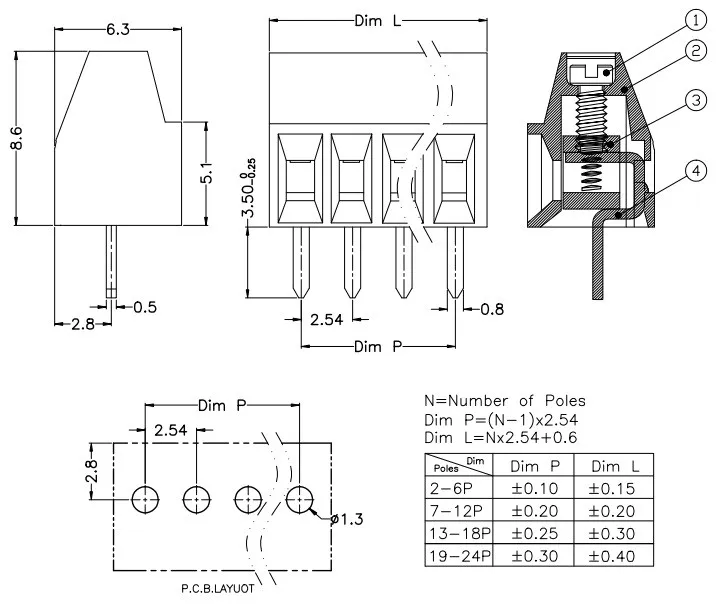

Drawing

KF120

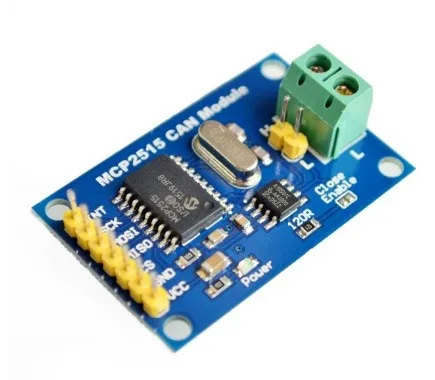

Application


Multiple functions:


✔security

✔instrument & meter

✔relay module
