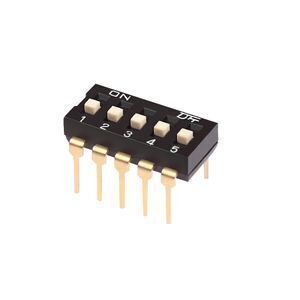

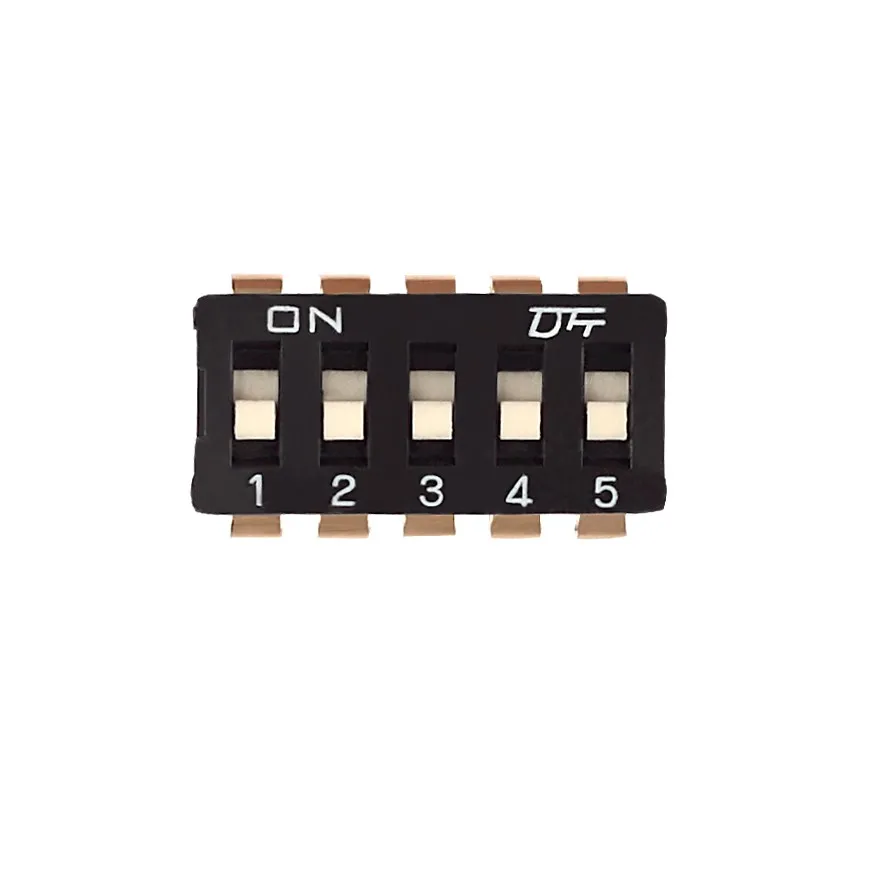

2.54mm pitch smd/smt surface mount dip switch terminal made in China

Supplier: Cixi Kaifeng Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Candy Yu
Price: $0.01 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Max. Current:	25mA;	Operation temperature:	-20℃~+70℃;
Initial:	50mΩ/Max;	Operating force:	1,000g/Max;
Supply Ability:	10000 Piece/Pieces per Day dip switch terminal made in China;	Insulation resistance:	100MΩ/min. at 500VDC;
Packaging Detail:	Tube ,tape and reel as inner packaging, carton box as outter packaging for 2.54mm pitch smd/smt surface mount dip switch terminal made in China;	Pitch:	2.54mm;

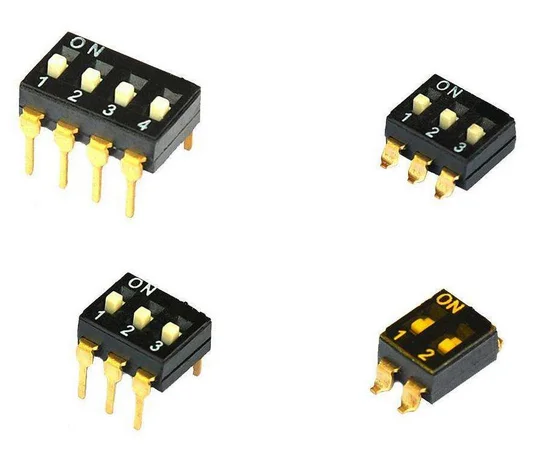

Non-Switching:	100mA, 50VDC;	Number of contacts:	5P/1-12P available;
Place of Origin:	Zhejiang China (Mainland);	Model Number:	KF1027 dip switch terminal;
Dielectric strength:	500CAC/1min;	Brand Name:	DFT dip switch terminal;
Port:	Any port of loading;	Max. Voltage:	24VDC;
Switching:	25mA, 24VDC;	Payment Terms:	L/C,T/T,MoneyGram,Paypal;
Product Name:	dip switch terminal made in China;

Product Description

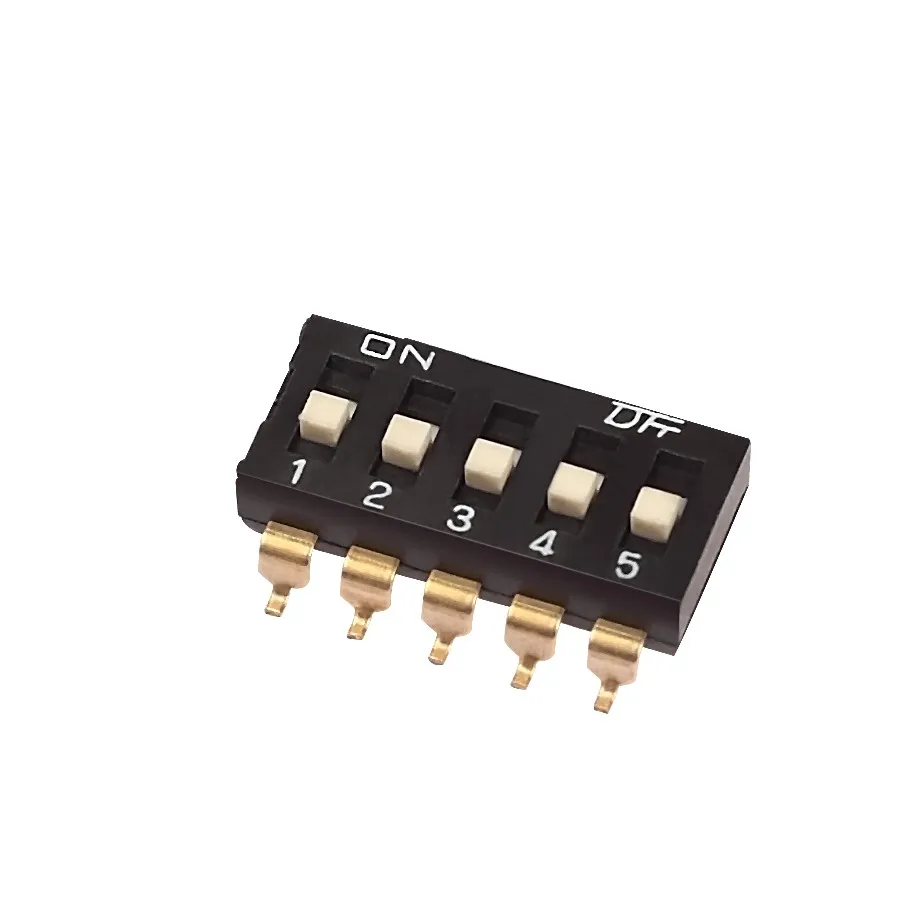

Product name: 2.54mm pitch smd/smt surface mount dip switch terminal made in China

SPECIFICATIONS
Contact Rating:
Switching:	25mA, 24VDC
Non-Switching:	100mA, 50VDC
Contact Resistance:
Initial:	50mΩ/Max
After Reliablility Test:	100mΩ/Max
Insulation Resistance:	100MΩ/Min. at 500VDC
Operating Force:	500CAC/1 min
Travel:	1,000g/Max
Mechanical Life:	0.9mm
Electrical Life:	5,000 cycles(Min.)
Operating Temperature:	-20℃~+70℃
Storage Temperature:	-40℃~+85℃
MATERIALS
Cover:	Thernoplastic UL94V-0 rate, Black
Base:	Thernoplastic UL94V-0 rate, Black
Actuator:	Thernoplastic UL94V-0 rate, White
Terminal Contact:	Phosphor bronze, Gold Plated

SOLDERING INFORMATION

Keep all switch contacts in their "off" position for all operations.
Hand Soldering
Soldering iron 30W or under at 320℃ for 3 sec/Max. or at 270℃ for 5sec/Max.
Reflow Soldering

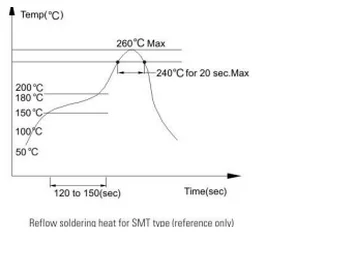

Reflow zone 240℃ for 20 seconds. (attached drawing for reference)
Wave Soldering
Recommended Solder Temperature at 260℃ Max. 5 seconds for IC type

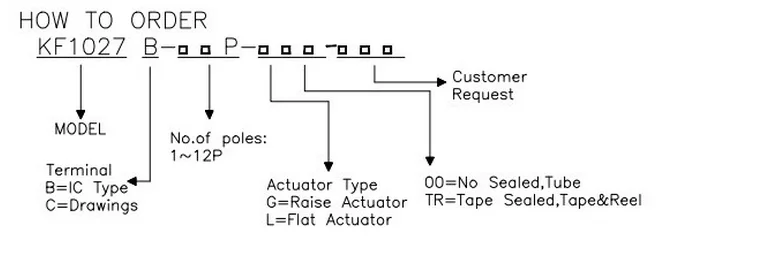

KF1027A

KF1027B

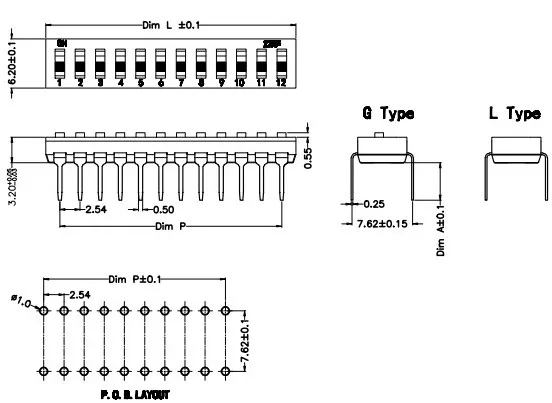

Drawing

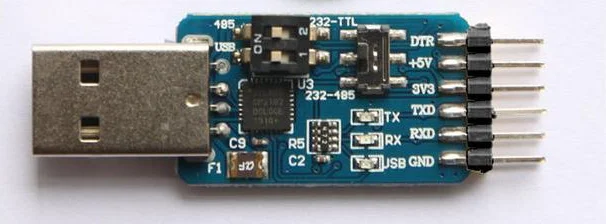

Features

Features:

● Twin contacts designed to ensure stable contact
● Highly resistant to physical shock & vibration
● Tape sealed version available to ensure washability
● Low profile to save PCB space
● Light click feeling
