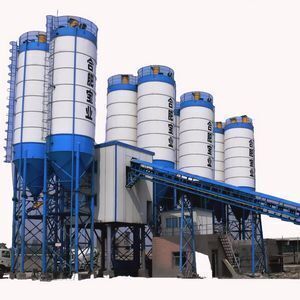

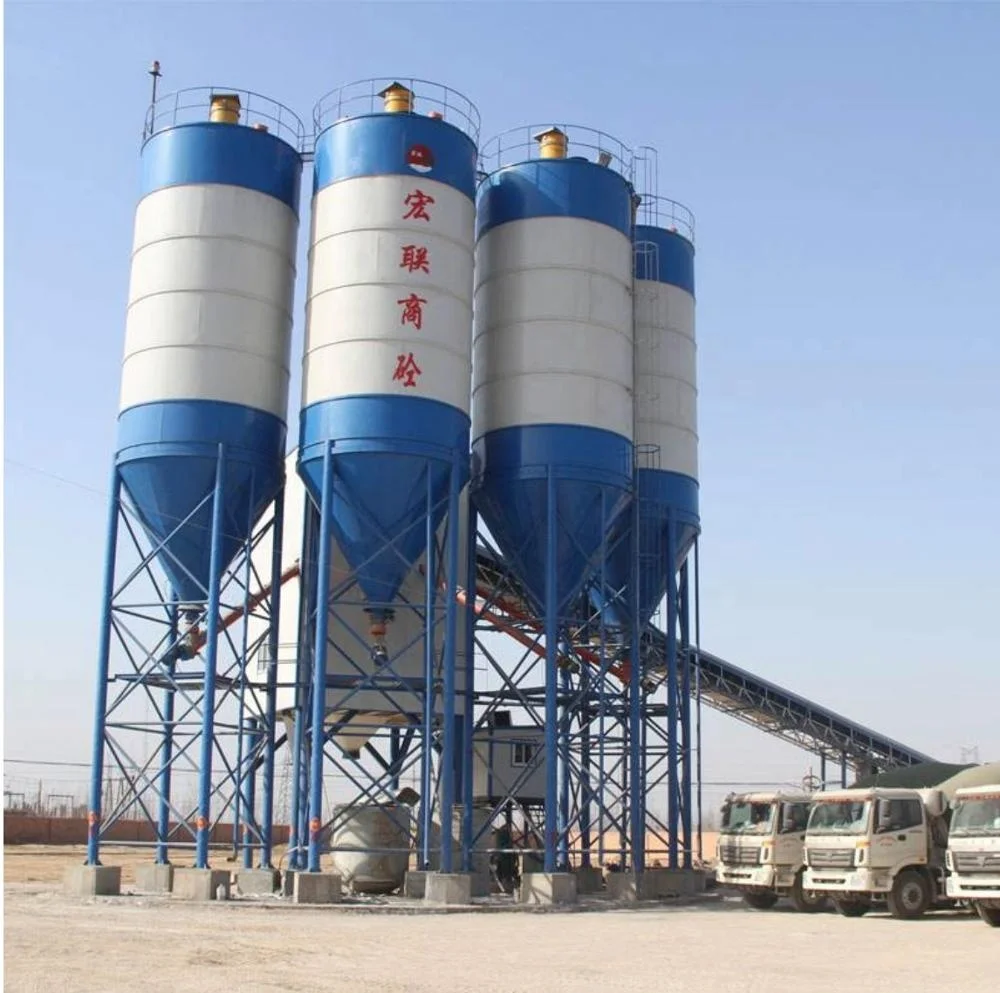

Mobile Concrete batching plant HZS50
- 100000.00 piece
| Condition: | New; | After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support,No after-sales service; |
| Place of Origin: | Shanghai China; | Applicable Industries: | Building Material Shops,Construction works ; |
| Warranty: | 1 Year; | Payment Terms: | L/C,T/T; |
| Supply Ability: | 30 Set/Sets per Year; | Power Type: | Gasoline; |
| Product name: | Concrete; | Certification: | ISO CE; |
| Brand Name: | VOSTOSUN; | Port: | Shanghai; |
Model |
| HZS60 | HZS90 | HZS120 | HZS180 | HZS200 | |
Theoretical productivity | m3/h | 60 | 90 | 120 | 180 | 200 | |
Mixer nominal capacity | m3 | 1 | 1.5 | 2 | 3 | 4 | |
Aggregate bin: quantity and capacity | m3 | 3×12 | 4×12 | 4×15 | 4×25 | 4×30 | |
Max. weighing value | Aggregate | kg | 3000 | 4×1200 | 4×2000 | 4×3000 | 4×4000 |
Cement | kg | 600 | 1000 | 1200 | 1800 | 2000 | |
Flyash | kg | - | 300 | 400 | 400 | 800 | |
Water | kg | 250 | 400 | 500 | 800 | 1200 | |
Additive | kg | 40 | 40 | 50 | 80 | 80 | |
Measuring accuracy | Aggregate | % | ±2 | ||||
Powder | % | ±1 | |||||
Water | % | ±1 | |||||
Additive | % | ±1 | |||||
Unloading height |
|
| 3.8m | 3.8m | 3.8m | 4m | 4m |
Dimension (length× width) |
| m | 31×16 | 27×16.2 | 47×22 | 58×19 | 68×22 |
Ø CORE VALUE:
Integrity, Profession, Efficiency, Gratitude, and Responsibility
Ø GOAL AND VISION:
Committed To Becoming a Professional Solution Provider For Centralized Procurement And Supply Of
Engineering, Mining And Mineral Powder Processing Projects.
Ø OUR MISSION:
Your Requirements For Equipment Selection, Quality, Cost, Delivery, Risk Control And After-Sales Service,
Your Service Requirements For Overseas Markets,They Are Our Existing Value And Unremitting Pursuit!
Q:What's your payment term?
A: We accept T/T(30% down payment and balance before shipping) and L/C mostly. But if you prefer other payment terms please contact us for further information.
Q: Whats's the warranty time?
A:From the date of shipment,1 year or 1500 working hours,whichever comes first.
Q:What`s the international project experience?
A: Kazakhstan Astana Capital Moving Projuct,
Russia Voronezh Nuclear Power Station,
Shanghai Pengxin Mining Congo(Gold) Copper Project,
Equatorial Guinea National Highway Equipment General Contracting
Q:What`s the technical support or partnership?
A: Institute of Powder Engineering, Tsinghua University.
Chinese Academy of Geological Sciences.
China Academy of Building Research
