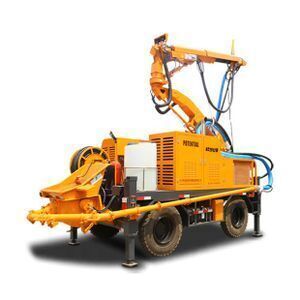

Shotcrete Robot KC2012W Shotcrete Manipulator Robot with Telescopic Spraying Arm
- 100000.00 set
| Supply Ability: | 30 Set/Sets per Year; | Max Aggregate Size: | 16mm; |
| Product name: | Shotcrete Robot; | Port: | shanghai port ,qingdao port,tianjin port; |
| Warranty: | 1 YEAR; | After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support; |
| Type: | Full hydraulic wheel type chassis; | Packaging Detail: | nude packing....; |
| Air Consumption: | 14Mpa; | Power(W): | 33000; |
| Hose Inner Diameter: | 80 mm; | Certification: | ISO; |
| After Warranty Service: | Video technical support,Online support; | Brand Name: | VOSTOSUN; |
| Steer mode: | 2 wheel steer/4 wheel steer/diagonal; | Brake mode: | parking braking/driving braking; |
| Applicable Industries: | Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ; | Voltage: | 50kva; |
| Transportation clearance: | 5900x2000x2650(mm); | Payment Terms: | L/C,T/T; |
| UNIQUE SELLING POINT: | -; | Weight: | 10T,10000; |
| Place of Origin: | China; | Ground clearance: | 245mm; |
| Showroom Location: | none; | Max. Conveying Distance: | 11m; |
| Condition: | New; | Local Service Location: | Egypt,canada,turkey,ITALY,france,VIET NAM,philippines,brazil,peru,SAUDI ARABIA,indonesia,pakistan,INDIA,Mexico,RUSSIA,spain,Thailand,japan,malaysia,Australia,Morocco,kenya,argentina,South Korea,CHILE,UAE,Colombia,algeria,Sri Lanka,Romania,BANGLADESH,south africa,KAZAKHSTAN,UKRAINE,kyrgyzstan,NIGERIA,uzbekistan,Tajikistan; |
| Dimension(L*W*H): | 5900*2000*2650; |
Applications
1.7-PRS Spraying Boom System
2.Suitable to Railway Tunnel & Highway Tunnel
3.4-wheel Drive & 4-wheel Steering Engineering Chassis
4.High Efficiency, Steady Concrete Delivery System
5.Remote Control & PLC Electrical Control System
6.Intelligent Setting Accelerator Adding System
7. Wide-ranging Technical Services
|
No. |
Item |
Parameter |
|
| 1 | Complete machine |
Transportation clearance(LxWxH) |
5900x2000x2650(mm) |
|
Weight |
10T |
||
|
2 |
Chassis |
Type |
Full hydraulic wheel type chassis |
| Driving type |
four-wheel drive |
||
| Steer mode |
2 wheel steer/4 wheel steer/diagonal |
||
|
Brake mode |
parking braking/driving braking |
||
|
Speed(low/high) |
5/15 km/h |
||
|
Ground clearance |
245mm |
||
|
Grade ability |
25° |
||
|
3 |
Drive system |
Engine |
4 cylinders water cooling diesel engine 60kW/2200rpm |
|
Motor |
three phase 380V 45kW/1480rpm (voltage optional) |
||
|
4 |
Spraying system |
Boom mode |
Articulated, rotate, telescopic Remote controller, proportional adjust |
|
Max spraying high |
11m |
||
|
Max spraying width |
19.2m |
||
|
Max spraying distance |
19.6m |
||
|
Boom rotate |
360° |
||
|
Telescopic boom rotate |
360° |
||
|
Nozzle rotate |
360° |
||
|
Nozzle rotate |
240° |
||
|
Nozzle swing |
360° continuous |
||
|
Articulated boom tilt |
60°/25° |
||
|
Telescopic boom tilt |
65°/25° |
||
|
Telescopic boom extend and retract |
1.4+1.2=2.6m |
||
|
5 |
Pump system |
Pump mode |
pump volume adjusted by remote controller |
|
Theory pump volume |
9/25m3/h |
||
|
Max theory outlet pressure |
7/14MPa |
||
|
Max aggregate size |
≤16mm |
||
|
Pipe diameter |
Φ80mm |
||
|
Concrete cylinder diameter |
φ120mm |
||
|
Concrete cylinder moving distance |
800mm |
||
|
Hydraulic Cylinder/pole diameter |
Φ90/Φ63 |
||
|
Hydraulic cylinder moving distance |
800mm |
||
|
Hopper capacity |
300L |
||
|
Loading high |
<1200mm |
||
|
6 |
Additive system |
working flow |
60~600L/h |
|
working pressure |
12bar |
||
|
Additive tank volume |
200L |
||
|
7 |
Cleaning machine |
Working flow |
14 L/min |
|
Working pressure |
14MPa |
||
|
8 |
Cable reel |
Drive mode |
hydraulic motor drive |
|
Cable long |
80m |
||
|
9 |
Equipment system requirement |
Air pressure |
>0.5Mpa |
|
Air consumption |
8m3/min |
||
|
Power capacity |
50KVA
|
||
Ø CORE VALUE:
Integrity, Profession, Efficiency, Gratitude, and Responsibility
Ø GOAL AND VISION:
Committed To Becoming a Professional Solution Provider For Centralized Procurement And Supply Of
Engineering, Mining And Mineral Powder Processing Projects.
Ø OUR MISSION:
Your Requirements For Equipment Selection, Quality, Cost, Delivery, Risk Control And After-Sales Service,
Your Service Requirements For Overseas Markets,They Are Our Existing Value And Unremitting Pursuit!
Q:What's your payment term?
A: We accept T/T(30% down payment and balance before shipping) and L/C mostly. But if you prefer other payment terms please contact us for further information.
Q: Whats's the warranty time?
A:From the date of shipment,1 year or 1500 working hours,whichever comes first.
Q:What`s the international project experience?
A: Kazakhstan Astana Capital Moving Projuct,
Russia Voronezh Nuclear Power Station,
Shanghai Pengxin Mining Congo(Gold) Copper Project,
Equatorial Guinea National Highway Equipment General Contracting
Q:What`s the technical support or partnership?
A: Institute of Powder Engineering, Tsinghua University.
Chinese Academy of Geological Sciences.
China Academy of Building Research
