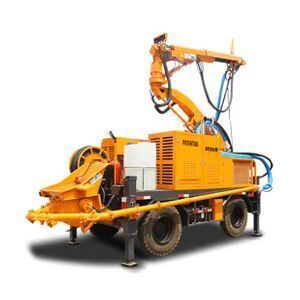

Shotcrete Robot KC2512W High efficiency shotcrete machine china manufacturer robot automatically shotcrete machine
- 150000.00 set
| Type: | Full hydraulic wheel type chassis; | Packaging Detail: | nude packing; |
| Brand Name: | VOSTOSUN; | Place of Origin: | Shanghai China; |
| Dimension(L*W*H): | 5750*2170*3100; | Steer mode: | 2 wheel steer/4 wheel steer/diagonal; |
| Certification: | ISO; | After Warranty Service: | Online support; |
| Condition: | New; | Air Consumption: | 7Mpa; |
| Max. Conveying Distance: | 12.5m; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ; |
| Warranty: | 1 year; | UNIQUE SELLING POINT: | -; |
| Max Aggregate Size: | 16mm; | Weight: | 10000; |
| After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support; | Product name: | Shotcrete Robot; |
| Voltage: | 50KVA; | Motor: | three phase 380V 45kW/1480rpm (voltage optional); |
| Brake mode: | parking braking/driving braking; | Engine: | 4 cylinders water cooling diesel engine 60kW/2200rpm; |
| Local Service Location: | None; | Power(W): | 33000; |
| Hose Inner Diameter: | 80 mm; | Showroom Location: | None; |
| Weight: | 10 t; | Supply Ability: | 30 Set/Sets per Year; |
| Payment Terms: | L/C,T/T; | Port: | shanghai port ,qingdao port,tianjin port; |
No. | Item | Parameter | |
1 | Complete machine | Transportation clearance(LxWxH) | 5750x2170x3100(mm) |
Weight | 10T | ||
2 | Chassis | Type | Full hydraulic wheel type chassis |
Driving type | four-wheel drive | ||
Steer mode | 2 wheel steer/4 wheel steer/diagonal | ||
Brake mode | parking braking/driving braking | ||
Speed(low/high) | 5/15 km/h | ||
Ground clearance | 365mm | ||
Grade ability | 25° | ||
3 | Drive system | Engine | 4 cylinders water cooling diesel engine 60kW/2200rpm |
Motor | three phase 380V 45kW/1480rpm (voltage optional) | ||
4 | Spraying system | Boom mode | Articulated, rotate, telescopic Remote controller, proportional adjust |
Max spraying high | 12.5m | ||
Max spraying width | 21m | ||
Max spraying distance | 10.2m | ||
Boom rotate | 210° | ||
Telescopic boom rotate | 360° | ||
Nozzle rotate | 360° | ||
Nozzle rotate | 240° | ||
Ø CORE VALUE:
Integrity, Profession, Efficiency, Gratitude, and Responsibility
Ø GOAL AND VISION:
Committed To Becoming a Professional Solution Provider For Centralized Procurement And Supply Of
Engineering, Mining And Mineral Powder Processing Projects.
Ø OUR MISSION:
Your Requirements For Equipment Selection, Quality, Cost, Delivery, Risk Control And After-Sales Service,
Your Service Requirements For Overseas Markets,They Are Our Existing Value And Unremitting Pursuit!
Q:What's your payment term?
A: We accept T/T(30% down payment and balance before shipping) and L/C mostly. But if you prefer other payment terms please contact us for further information.
Q: Whats's the warranty time?
A:From the date of shipment,1 year or 1500 working hours,whichever comes first.
Q:What`s the international project experience?
A: Kazakhstan Astana Capital Moving Projuct,
Russia Voronezh Nuclear Power Station,
Shanghai Pengxin Mining Congo(Gold) Copper Project,
Equatorial Guinea National Highway Equipment General Contracting
Q:What`s the technical support or partnership?
A: Institute of Powder Engineering, Tsinghua University.
Chinese Academy of Geological Sciences.
China Academy of Building Research
Contact Us Now!!!
