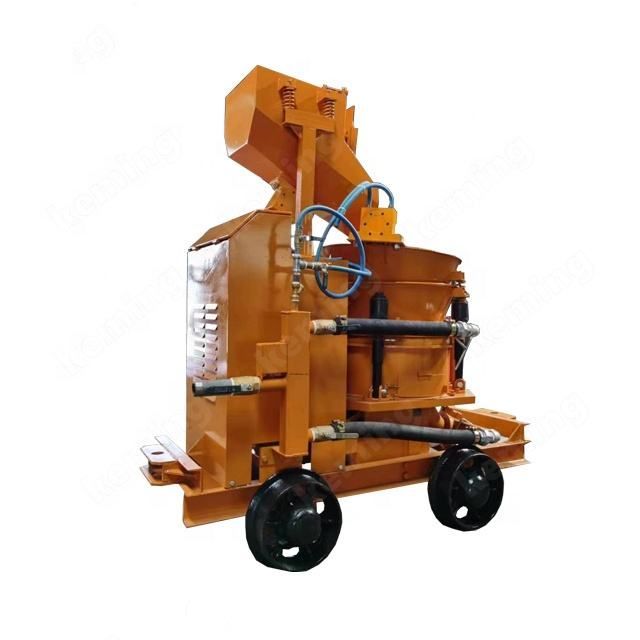

Refractory spraying machine KPZ dry refractory spraying machine with accelerator adding device
-
Supplier: Henan Coal Scientific Research Institute Co., Ltd. -
Region: Henan, China -
Contact: Mr Steve Wan -
Price: $1500.00 /set -
Min. Order: 1 set
| Applicable industries: | Mechanical repair shops, manufacturing plants, construction, energy and mining | Health status: | new |
| maximum. Conveying distance: | 200 meters | port: | Qingdao/Shanghai/Tianjin |
| Operating pressure: | 0.2~0.6Mpa | Gas consumption: | 6-7 cubic meters per minute |
| maximum. Conveying distance: | 200 meters | After-sales service provided: | online support |
| Video shipment inspection: | if | Core components: | Engines, Bearings, Pumps |
| Showroom location: | Germany, Philippines, Indonesia, Pakistan, India | Core component warranty: | 1 year |
| Hose inner diameter: | 57mm | Packaging Details: | Standard export packing or customized packing |
| Voltage: | Diesel engines | Unique selling point: | Imported engine, low energy consumption |
| Origin: | Henan, China | Product Category: | KPZ-4 spraying machine |
| Engine type: | electric drive | Maximum aggregation size: | 20mm |
| brand: | Keming | weight: | 500 kg |
| capacity: | 4.5 cubic meters per hour | Package preview: | |
| strength: | 5.5 kW | Mechanical test report: | if |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Gas consumption: | 9~10 cubic meters per minute |
| Supply capacity: | 100 sets per month | Warranty: | 1 year |
| Marketing Type: | 2019 Hot Products | maximum. Total size: | 25mm |
KPZ-4Dry spray machine
Columbia Price Refractory Spraying Machine KPZ Dry Refractory Spraying Machine With Dust Collector
1. KPZ series dry spray machines include electric spray machines (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), air spray machines (KPZ-3A, KPZ-4A, KPZ-5A ), KPZ-7A, KPZ-9A), diesel spraying machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), mining spraying machine (PC5I, PS6I-J).
2. KPZ-7D diesel injection machine is composed of driving device, rotor assembly, air system, concrete injection system, diesel engine and so on.
3. KPZ-7D diesel injection engine has advanced technology, reasonable structure, convenient operation, stable performance and long service life.
Shotcrete machine application:
1. KPZ-7D diesel injection machine can be used for dry or semi-wet concrete spraying construction.
2. KPZ-7D diesel injection machine is widely used in tunnels, culverts, subways, slope reinforcement, hydropower projects, underground projects, high gas mine roadways, etc.
Shotcrete machine technical parameters:
| Model | KPZ-4 | KPZ-6 |
| production capacity | 3.5~4.5 cubic meters/hour | 5.5~6.5 cubic meters/hour |
| maximum. Conveying distance (spray) | ≤200/40m | ≤150/30m |
| maximum. total size | φ20mm | φ20mm |
| Delivery hose inner diameter | Φ42/50mm | φ50/57mm |
| work pressure | 0.2~0.4MPa | 0.2~0.4MPa |
| Air consumption | 7-8 cubic meters per minute | 8-10 cubic meters per minute |
| Feed height | 1.1 meters | 1.1 meters |
| Rotor speed | 11 rpm | 11 rpm |
| Motor Power | 5.5 kW | 7.5 kW |
| Dimensions (LxWxH) | 1500×820×1250mm | 1580×850×1250mm |
| weight | 500Kg | 600Kg |
-
