Chinese factory outlet 3 Axis 4 axis 5 axis VMC1060 Milling Machine CNC Vertical Machining Center for sale

Click here to contact
Product details
Payment Terms:T/T;Voltage:380V;
Spindle center to column surface:650mm;Table size:1200*600mm;
Spindle motor power:11kw;Spindle diameter:150mm;
Place of Origin:Shandong China (Mainland);Weight:7500kg;
Spindle speed range:8000rpm;Certification:ISO CE;
Max. table load:800kg;After-sales Service Provided:Online support;
T slot(N*W*D):5-18-100mm;Power(W):7.5/11KW;
Table travel X/Y/Z:1000*600*600mm;Type:Vertical;
Dimension(L*W*H):3300x2550x2800;Spindle taper:BT40;
Brand Name:TENGDONG;Warranty:1 Year;
Packaging Detail:Packing of wooden cases conforming to export standard;Condition:New;
Magazine capacity:16/24/24;

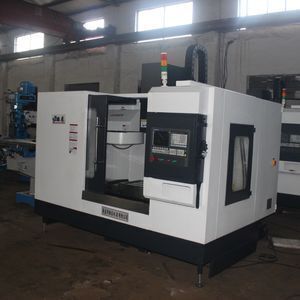

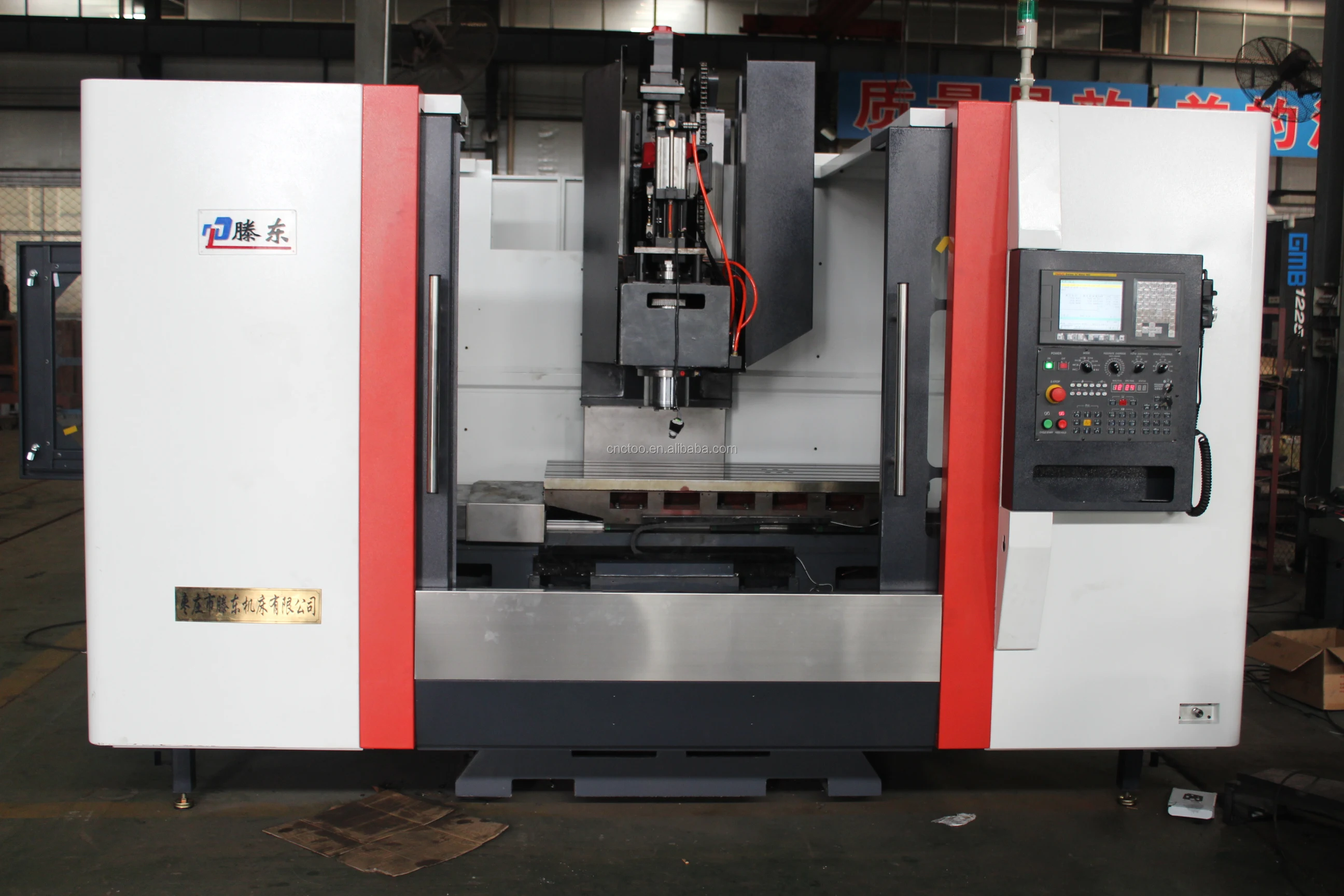

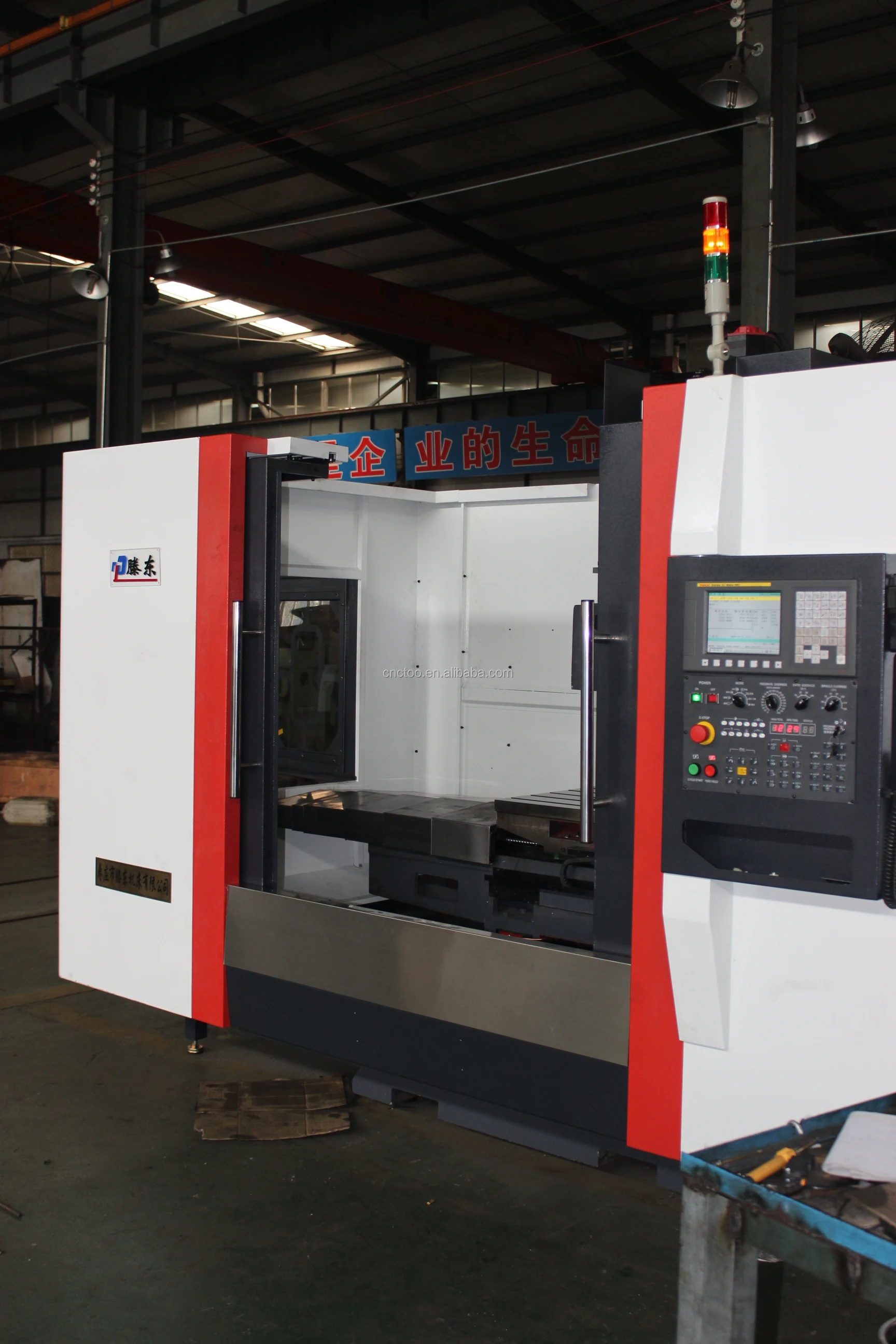

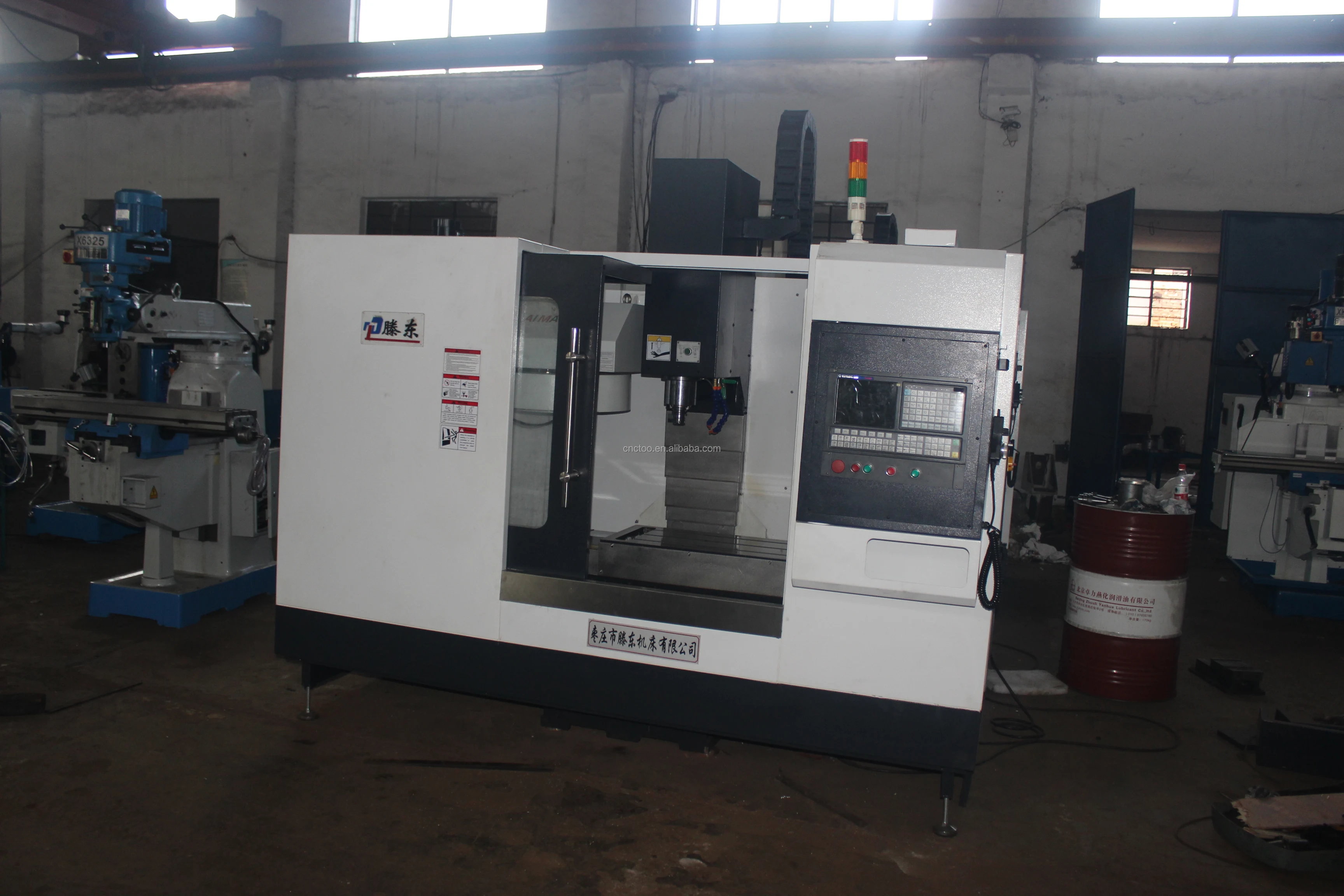

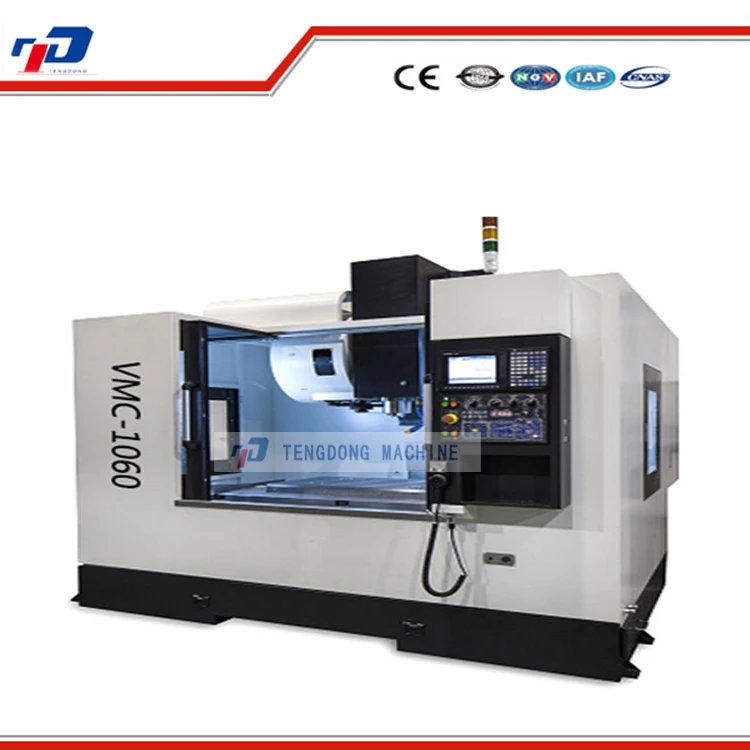

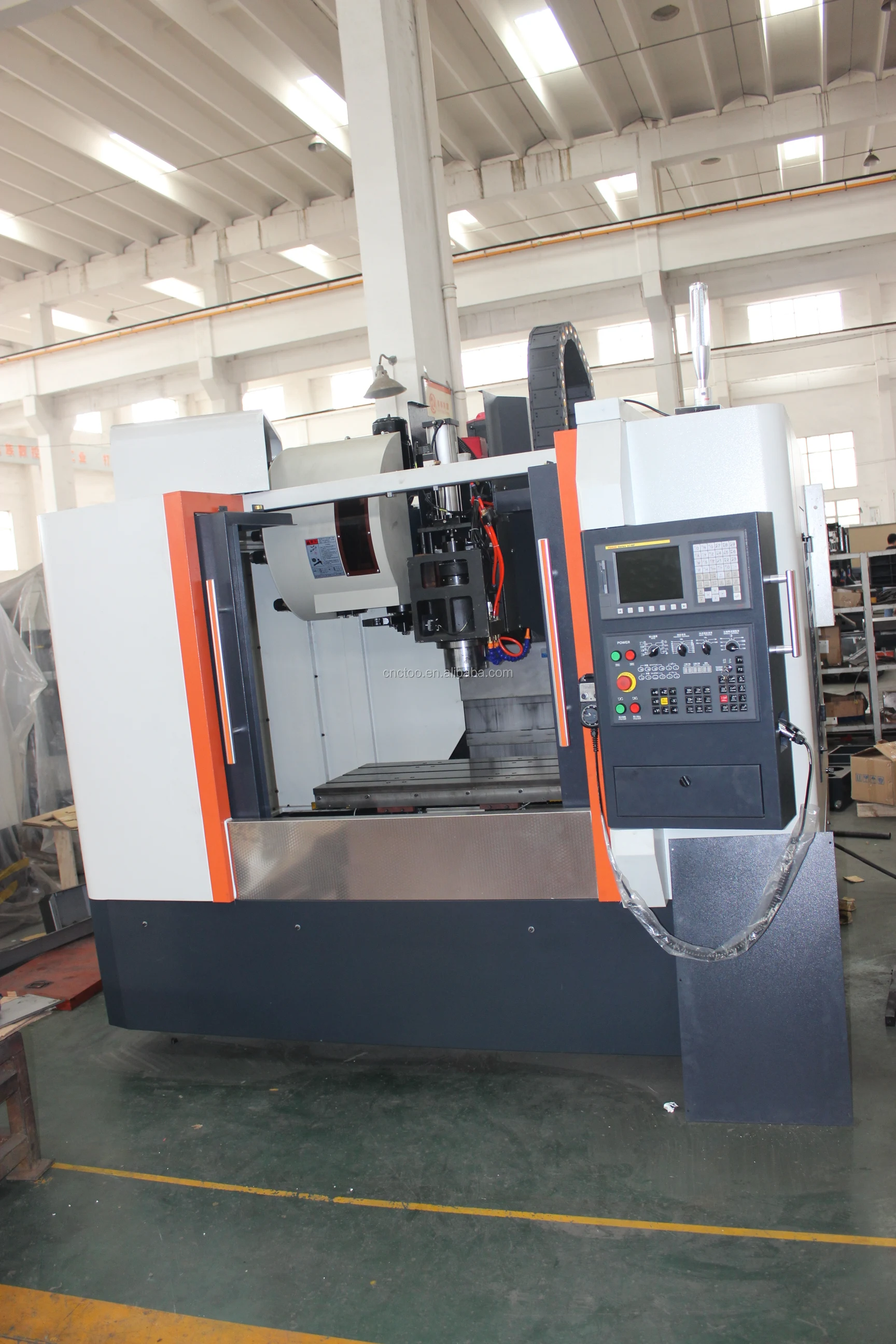

 High precision vertical machine center VMC1060

CNC milling machine

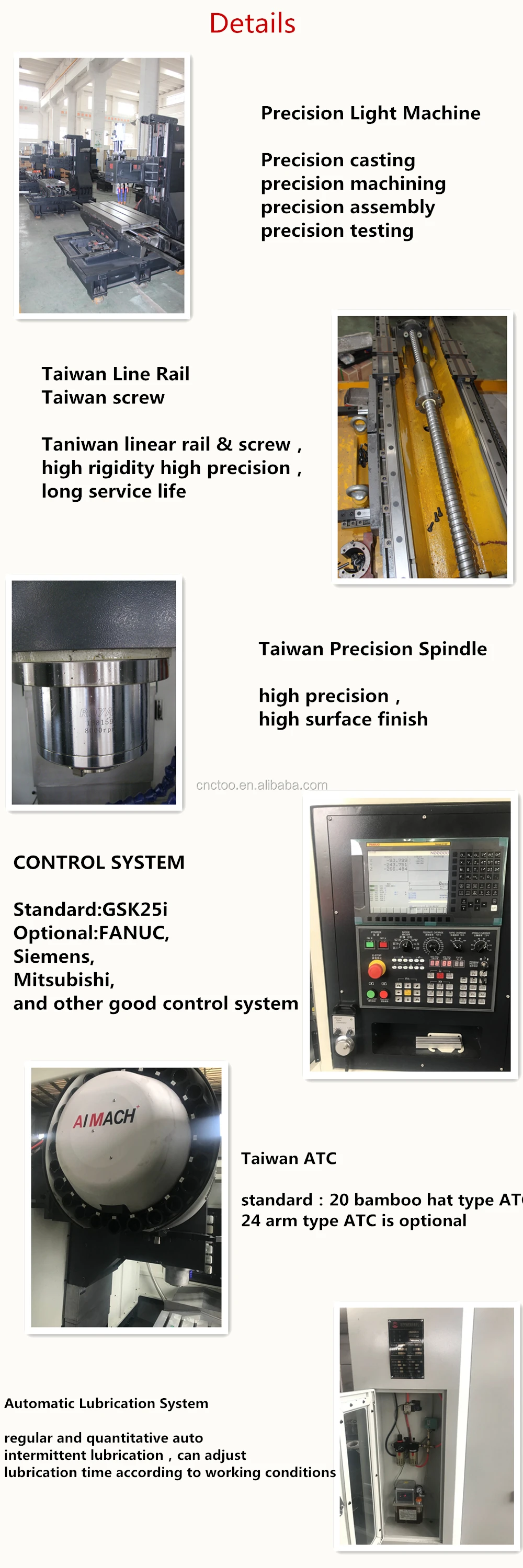

Features:

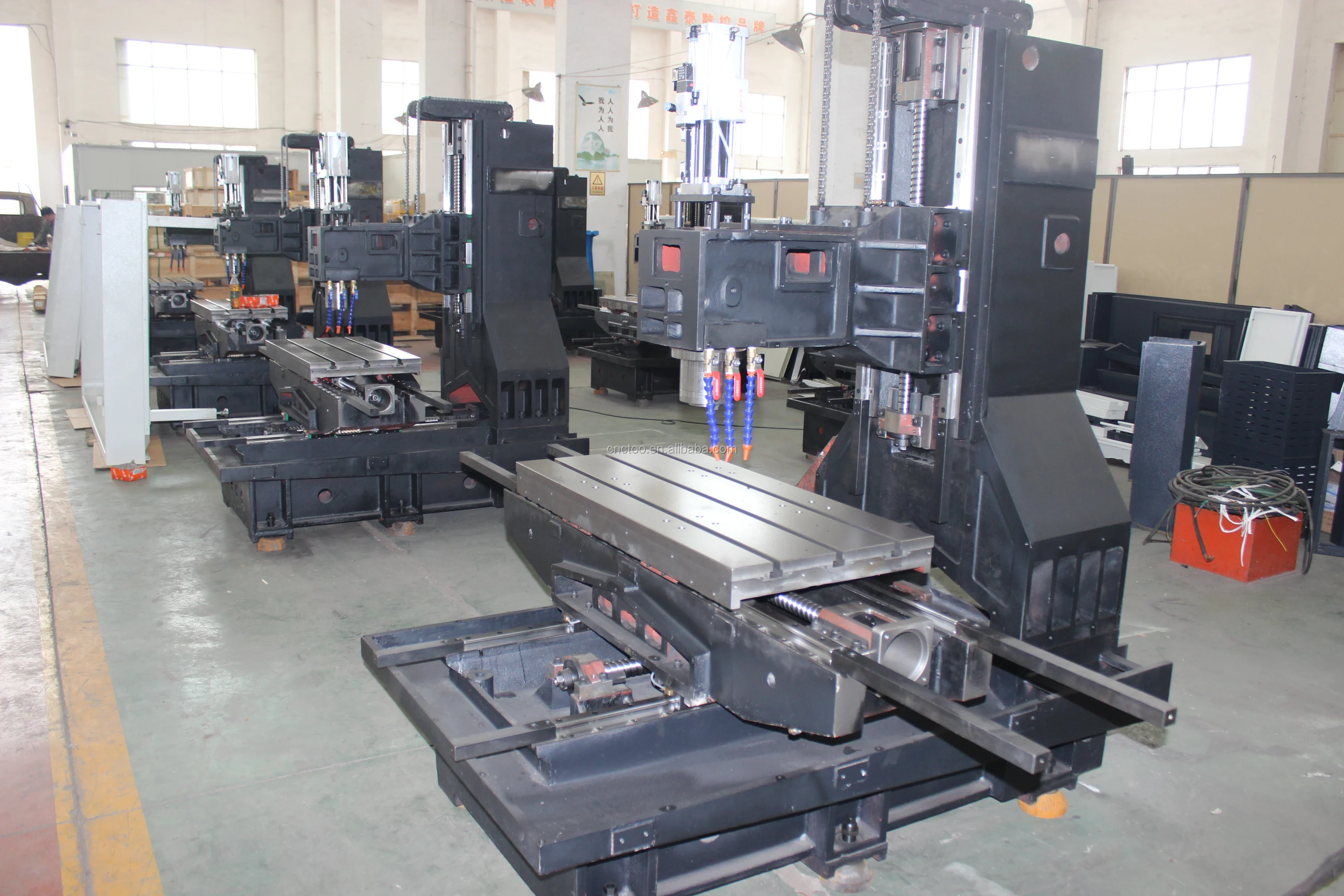

1. the basic pieces of high-strength cast iron and by aging treatment to ensure the stability of precision;

2. X / Y / Z three-way feed with large pitch high-precision high-strength ball screw feed speed; servo motor using flexible coupling and screw lead directly to ensure the stability of the machine;

3. the screw for the pre-stretch the pole greatly reducing the thermal deformation of the positioning accuracy of the impact.



Standard configuration: KND2000



     Select the configuration : Siemens 828D

                                              Mitsubishi

                                              FANU OI mate MD

                                              GSK







 Product Main technical parameters:



Specifications

Unit

VMC1060

Table size

mm

1200X600

Table Maximum load

kg

600

X/Y/Z axis travel

mm

1000X600X600

Distance between spindle center and column surface

mm

650

Distance between spindle end face and worktable surface

mm

100-700

X/Y/Z max. feed speed

mm/min

10000

X/Y/Z max. rapid traverse

m/min

24/24/20

Max. spindle speed

r/min

8000

Spindle taper



BT40

Spindle motor

kw

11/15

X/Y/Z axis servo motor

kw

2.5/2.5/2.5

X/Y/Z motor connection



direct

X/Y/Z guid rail form



3 axis linear guide

T slot (number-width-pitch)



5-18-100

Repeat Positioning Accuracy

mm

±0.003

Tools type



Armless: 16/arm:24

Max. Tool weight

kg

8

Max tool length

mm

250/350

Eletric Capacity

KVA

16

Machine Dimension

mm

3300x2550x2800

Machine weight

kg

7500

ertical machine center   vertical machine center   vertical machine center   vertical machine center   vertical machine center

  vertical machine center   vertical machine center   vertical machine center   vertical machine center   vertical machine center

  vertical machine center   vertical machine center   vertical machine center   vertical machine center   vertical machine centeenter   vertical machine center

 vertical machine center   vertical machine center   vertical machine center   vertical machine center   vertical machine center

 vertical machine center   vertical machine center   vertical machine center   vertical machine center   vertical machine center

  vertical machine center   vertical machine center   vertical machine center   vertical machine center   vertical machine center

  vertical machine center   vertical machine center   vertical machine center   vertical machine center   vertical machine center

Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies

 vertical machine center   vertical machine center   vertical machine center   vertical machine center   vertical machine center

 vertical machine center   vertical machine center   vertical machine center   vertical machine center   vertical machine center

  vertical machine center   vertical machine center   vertical machine center   vertical machine center   vertical machine center

  vertical machine center   vertical machine center   vertical machine center   vertical machine center   vertical machine center







FAQ

Q1.What machines can be available in your factory?
A:We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after payment is completed.
Q4.Can I trust you?
A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q5.How' s your after-sale service?
A:Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.
Q6.What is the package? Is it suitable for shipment?
A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
Q7.Are you manufacturer?
A: Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
