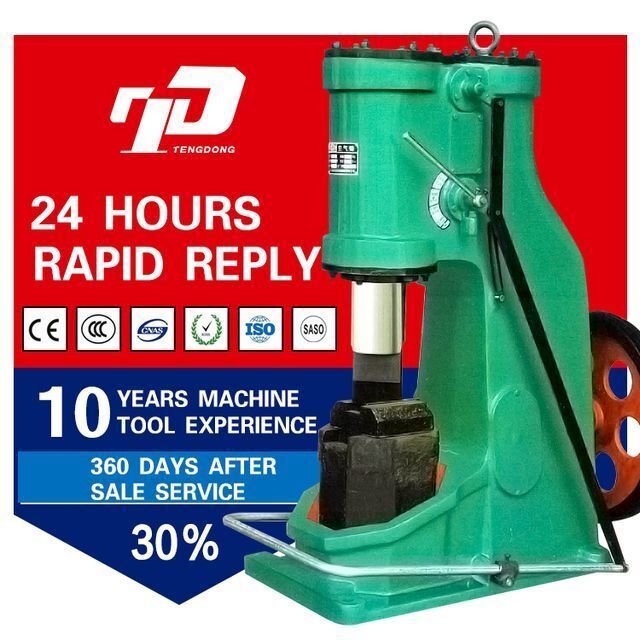

Metal forging air hammer C41 - 25KG blacksmith power forging hammer machine for sale

Supplier: Zaozhuang City Tengdong Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Teng dong
Price: $1800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power:	5.5kw;	Weight:	250-2500kg;
Place of Origin:	China;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Construction works ;
Payment Terms:	T/T;	Port:	qingdao;
Warranty of core components:	1 Year;	Speed of motor:	1440r.p.m;
Name:	Air Power Forging Hammer;	Usage:	Steel Bar;
Machinery Test Report:	Provided;	Voltage:	220V/380V/440V;
Type:	C41 Blacksmith Power Hammer;	Key Selling Points:	Easy to Operate;
Brand Name:	Tengdong;	COLOR:	Green;
Condition:	New;	Showroom Location:	None;
Marketing Type:	Hot Product 2021;	Machine Type:	Power hammer;
Dimension(LWH):	16009501950mm;	Warranty:	12 Months;
Weight (KG):	560;	Supply Ability:	10 Acres per Day;
Core Components:	PLC,Engine;	Certification:	ISO9001;
Package Preview:	;	Video outgoing-inspection:	Provided;

Company Profile

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Product Description

Specification

Model	C41-16KG	C41-20KG	C41-25KG	C41-40KG	C41-55KG
Weight of failling parts(KG)	16	20	25	40	55
Max.hit energy(KJ)	0.18	0.22	0.27	0.53	0.7
Height of working area(mm)	180	200	240	245	265
Hit number(min)	258	255	250	245	230
Dimension of top and bottom die surface(LxW mm)	70x40	90x50	100x50	120x50	120x55
Max. square steel can be forged(Diameter mm)	20x20	30x30	40x40	52x52	52x52
Max. round steel can be forged(Diameter mm)	22	35	45	68	68
Rate power(kw)	1.5	2.2	3/2.2	4	5.5
Speed of motor(r.p.m)	1440	1440	1440	1440	1440
Total weight(kg)	240	380	560	880	1700
Overall dimensions(L x W x H mm)	660x420x970	820x460x1110	980x510x1200	1080x600x1430	1320x670x1620

Packing & Delivery

he main performance characteristics:
1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air
pressure control,
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage
Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending
using a die cushion can be a variety of open die forging.
