Small Air Hammer Pneumatic Forging Power Hammer C41-25KG Metal Forging Machine
-
Supplier: Henan Wadjay Machinery Co., Ltd. -
Region: Henan, China -
Contact: Ms Alice Li -
Price: $2250.00 / 1 - 2 sets
$1800.00 / >=3 sets -
Min. Order: 1 set
Product details
| color: | Customization | Applicable industries: | Building material stores, mechanical repair shops, manufacturing plants, construction works |
| port: | Tianjin/Qingdao/Shanghai/Guangzhou/Shenzhen/Ningbo | Supply capacity: | 100 sets per month |
| Hits: | 250 | Number of strikes: | 250 |
| Function: | forged metal | Warranty: | 2 years |
| payment terms: | L/C,Western Union,T/T,MoneyGram | Showroom location: | not any |
| Health status: | new | Packaging Details: | Standard export packing/container small air hammer/pneumatic forging hammer power C41-25KG metal forging machine |
| Packaging Preview: | Main selling point: | competitive price | |
| Core Components Warranty: | 1.5 years | Dimensions (L*W*H): | 950*550*1260 |
| Core components: | PLC, engine, gearbox, motor | Workspace Height: | 240 |
| maximum. Round steel can be forged: | diameter. 45mm | Video external inspection: | if |
| Marketing Type: | New Products 2020 | Motor speed: | 1440 rpm |
| Mechanical test report: | if | strength: | / |
| place of origin; place of origin: | Henan, China | product name: | metal forging machine |
| Max Hit Energy: | 0.27KJ | maximum. Square steel can be forged: | 40x40 mm |
| brand: | Waja | Type of machine: | forging hammer |
| Voltage: | 380V/custom | Weight (kg): | 200 |
describe
describe:
Pneumatic forging hammer
Pneumatic forging hammers are widely used in general forging work, such as drawing, upsetting, punching, chiseling, forging, welding, bending, twisting, etc. It is also used for forging support dies. Air hammer is also known as forging hammer, forging hammer, pneumatic forging hammer, power hammer, etc. 6kg, 16kg, 20kg, 25kg, 40kg, 55kg, 75kg, 150kg, 250kg air hammer drop hammers are mainly used for artistic wrought iron, art forging, blacksmiths, farm tools and small free forgings.
product category
product category:
Pneumatic forging hammer

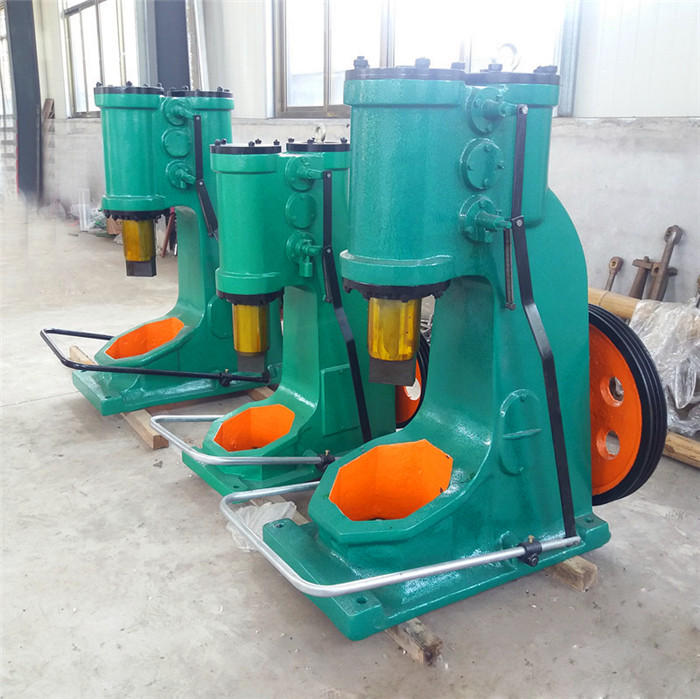

★ Anvil isolation

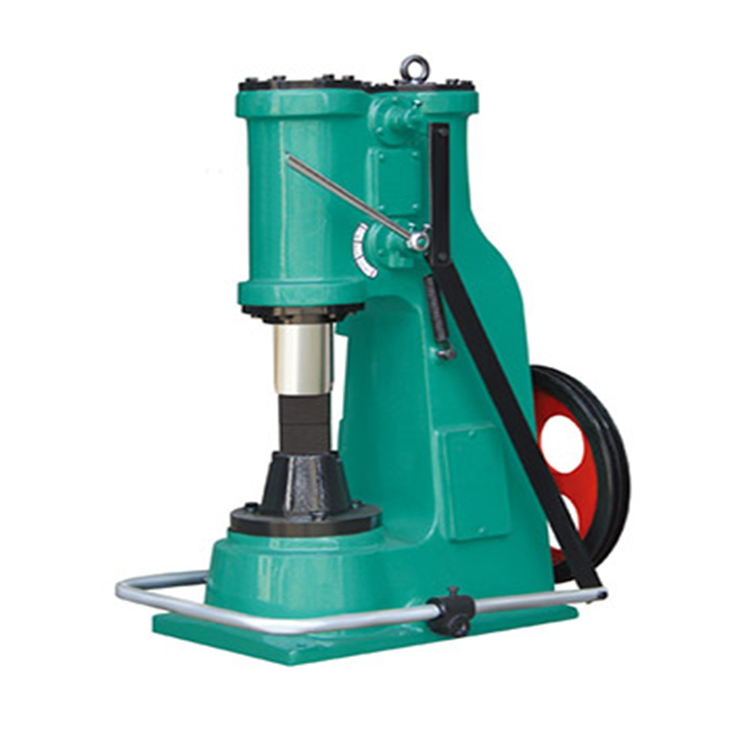

★ Built-in anvil

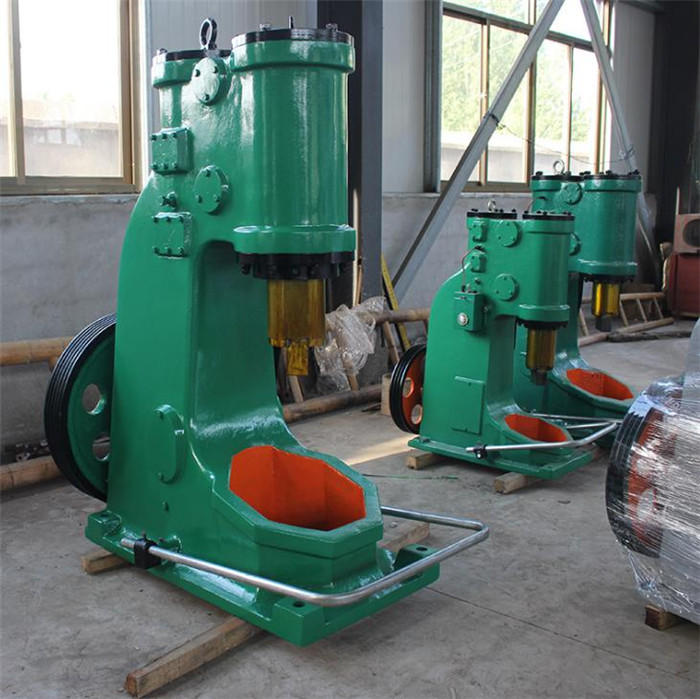

Integrated air hammer
More convenient to use, no need to set up, very simple.
Split-type hammer The split-type hammer is not easy to settle. But from the point of view of use and long-term use, customers who have used this machine more professionally prefer this machine.
More convenient to use, no need to set up, very simple.
Split-type hammer The split-type hammer is not easy to settle. But from the point of view of use and long-term use, customers who have used this machine more professionally prefer this machine.
Specification
Specification:
Pneumatic forging hammer
Model | C41-16KG | C41-20KG | C41-25KG | C41-40KG | C41-55KG |
Weight of faulty parts (KG) | 16 | 20 | 25 | 40 | 55 |
Maximum hit energy (KJ) | 0.18 | 0.22 | 0.27 | 0.53 | 0.7 |
Work area height (mm) | 180 | 200 | 240 | 245 | 265 |
Hits (minutes) | 258 | 255 | 250 | 245 | 230 |
Upper and lower die surface dimensions (LxW mm) | 70x40 | 90x50 | 100x50 | 120x50 | 120x55 |
maximum. Square steel forgeable (diameter mm) | 20x20 | 30x30 | 40x40 | 52x52 | 52x52 |
maximum. Forgeable round steel (diameter mm) | Φ22 | Φ35 | Φ45 | Φ68 | Φ68 |
Rated power (kw) | 1.5 | 2.2 | 3/2.2 | 4 | 5.5 |
Motor speed (rpm) | 1440 | 1440 | 1440 | 1440 | 1440 |
Total weight (kg) | 240 | 380 | 560 | 880 | 1700 |
Dimensions (L x W x H mm) | 660x420x970 | 820x460x1110 | 980x510x1200 | 1080x600x1430 | 1320x670x1620 |
detail image
contact us 24 hours online service |
More details

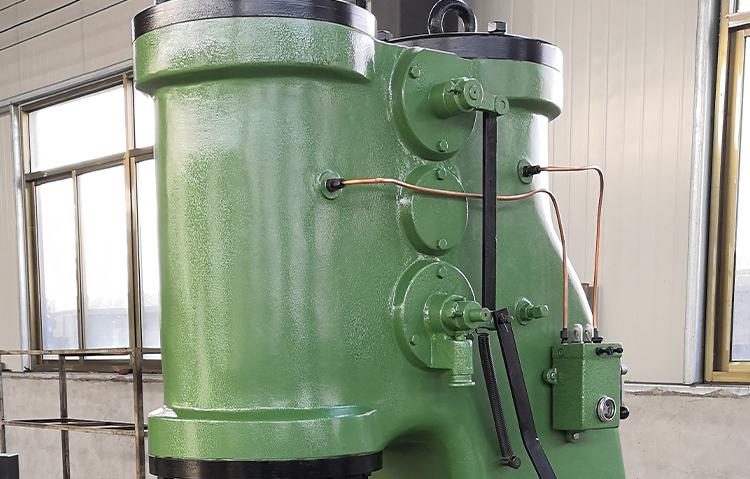

Forging hammer as a whole
The entire hammer body of the air hammer is made of high-density tree sand, and the high density can ensure the hammer body
Won't crack and break.
The air hammer compression cylinder and working cylinder use internal hammer grinding cylinder to ensure
The internal clearance of the cylinder body is well matched, and the working stability is strong.
Won't crack and break.
The air hammer compression cylinder and working cylinder use internal hammer grinding cylinder to ensure
The internal clearance of the cylinder body is well matched, and the working stability is strong.

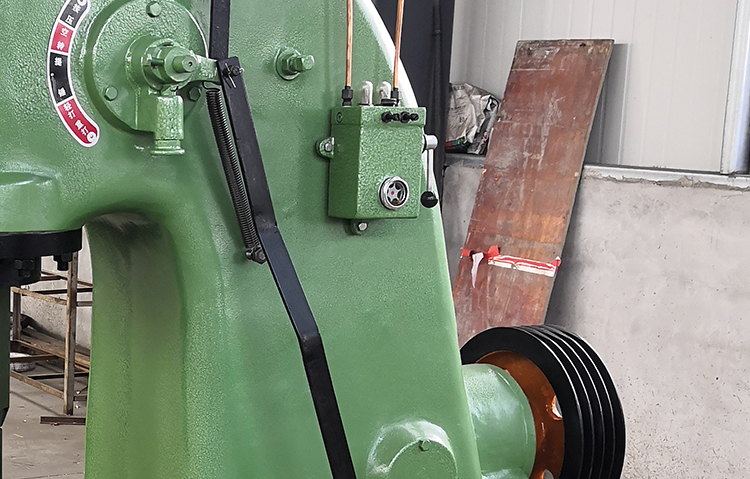

Air hammer valve train
The realization of various actions is controlled by the valve mechanism
Forging hammer
The working hammer rod is forged from 55 steel, and the surface of the hammer rod is processed with high precision
grinder. Finally, a special high-hardness rolling steel ball is used for rolling to harden the hammer rod. ...
grinder. Finally, a special high-hardness rolling steel ball is used for rolling to harden the hammer rod. ...
Hammer Oiler
Lubricator: Iron double-pipe self-priming lubricator is used, and a manual lubricating handle is added to manually lubricate the air.
Hammer the cylinder before use to prevent lubricating oil scarcity and cylinder wear.
Hammer the cylinder before use to prevent lubricating oil scarcity and cylinder wear.

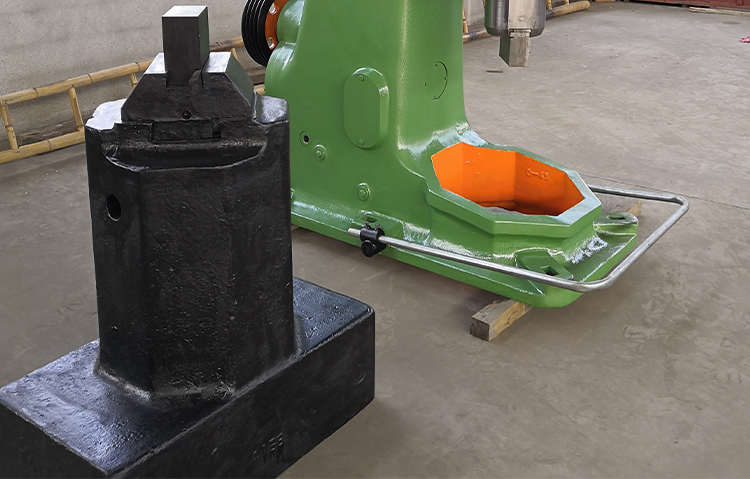

Hammer's Anvil
Anvil pad and lower anvil are mounted above the anvil
