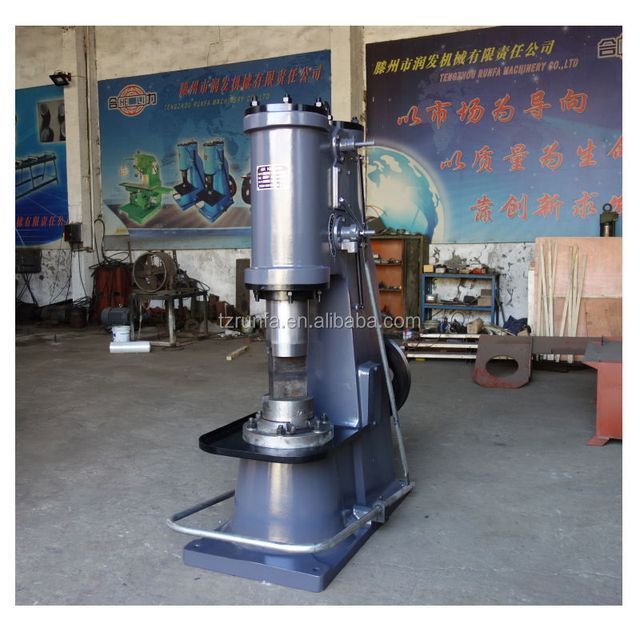

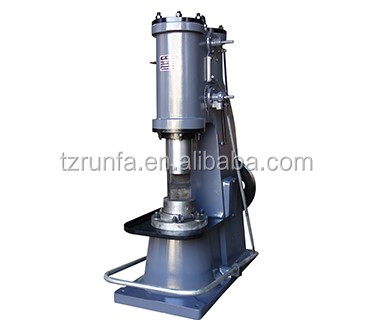

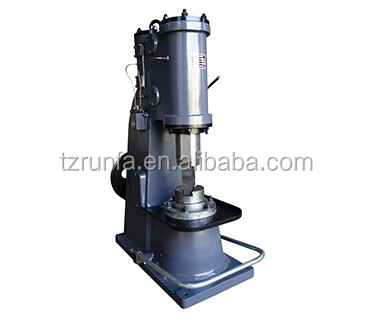

Blacksmith Air Hammer C41-100KG

Product details
Health status:newstrength:11 kW
payment terms:L/C, T/TBottom mold surface to ground:763mm
Hammer rated weight:100 kgWarranty:13 months
brand:work togetherCertification:CE ISO9001
Voltage:220V/240V/380V/415V/440VHammerhead shaft to frame front:300mm
Hammer die surface:155x75mmAfter-sales service provided:Does not provide overseas services
Supply capacity:20 sets per monthMaximum forgeable square steel:110x110mm
model:C41-100Maximum forgeable round bar:120mm
Dimensions (L*W*H):1500x720x2050mmweight:2460 kg
Blows per minute:190Footprint(LXW):1500X720mm
Shipping Details:20 daysplace of origin; place of origin:Shandong China
port:Qingdao PortMaximum strike energy:1.8KJ
Workspace height:340mmPackaging Details:Plywood and Pallets
Product Description

C41-100KG air forging hammer product application

C41-100KG air forging hammer is a free forging hammer. It can be used for various free forgings, such as stretching, upsetting, punching, hot shearing, forging welding, bending, twisting, etc. It can be used for die forging with booster die, but it cannot be used for closed die forging, because the impact energy of closed die forging is very large, which will damage the main parts such as hammer rod, guide rail and working cylinder.


title
to unite
Specification
drop weight
Kilogram
100
Maximum Hit Energy
KJ
1.8
hit frequency
rpm
190
work area height
mm
340
hammerhead shaft to frame front
mm
300
Hammer surface
mm
155x75
Maximum forgeable round bar (diameter)
mm
120
Maximum Forgeable Square Steel
mm
110x110
Bottom mold surface to ground
mm
763
Dimensions
mm
1500x720x2050
Motor Power
kilowatt
11
Motor speed
Rotating speed
960
gross weight
Kilogram
2460

main feature

1) The stand-alone structure is simple, easy to install and maintain.

2) Pneumatic components, electrical components and operating components all adopt advanced design components.

3) High air pressure provides more powerful strike energy for forgings.

4) Run at a reasonable speed to keep the hammer more efficient.

5) Install flutes to keep the workshop clean.

Optional hammer mold

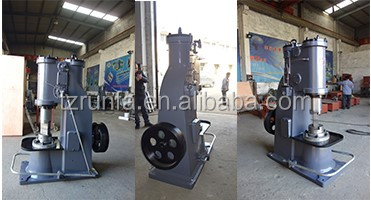

detailed image

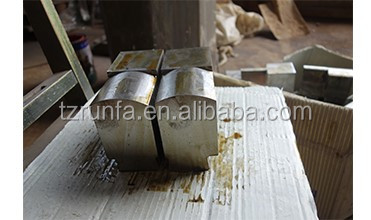

hammer mold

Name:large duo

Brand: Heli

Original: Conditioner

Excellent tooling for general purpose forging operations including drawing/tapering of square, rectangular and round blanks. The rounded section allows for quick material movement and the flat side can be used for parallel edge blocking, use of holding tools and flattening.

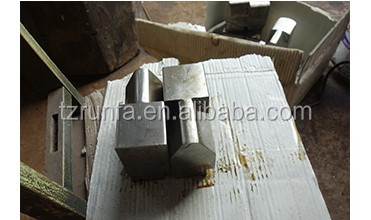

hammer mold

Name:Big Picture - Fuller Portfolio
Brand: Heli
The original:conditioner
Divided in equal halves of 3.25", these dies are a masterpiece of radius swaging. Larger radii are perfect for long tapers or rounded stock. Smaller radius fullers provide superior control over transitions and textures.

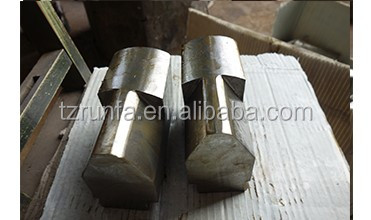

hammer mold

Name:Large drawing die
Card:work together
The original:conditioner

Large surface area with consistent radius allows for quick tapering. For flat, round or square stock. These dies are especially suitable for freehand forging tubing. Radius can also be used for bleaching and spreading.

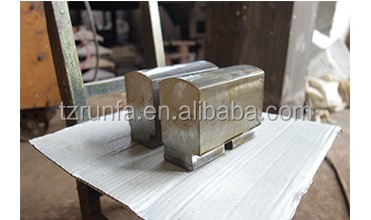

hammer mold

Name:Standard Fuller-Flat combination
Brand: Heli
Original: Conditioner
Sharp fuller is used for necking in transitions, deformations and general fullering operations. By making the outer half of the flat bar fuller, you can turn nice radii quickly and accurately.

our service

pre-sale service

* Inquiry and consultation support.

* Sample testing support.

* Check out our factory.

After-sales service

* Training how to install the machine, training how to use the machine.

* Engineers are available to service machines via video or files.

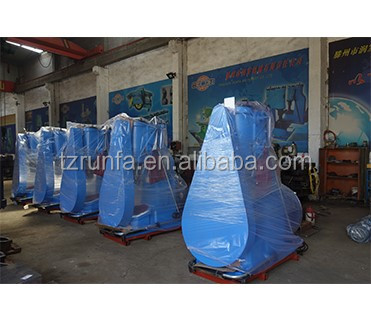

Packaging and Shipping
Bale
size
1560x800x2160mm
weight
2.6 tons



packaging details
Normal packing is pallet and plywood case (size: L*W*H).
