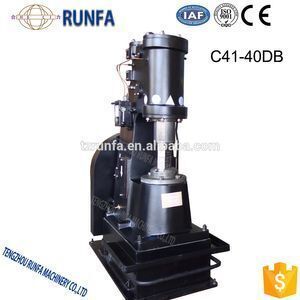

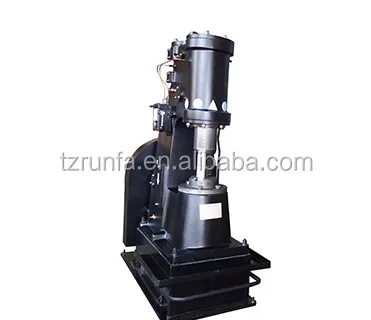

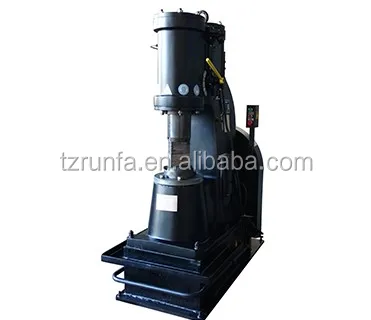

C41-40DB(92LB) Power Forging Hammer

Supplier: Tengzhou Runfa Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Fred Lee
Price: $3600.00 /set
Min. Order: 1 set

Click here to contact

Product details

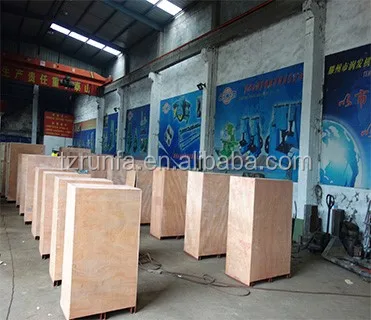

After-sales Service Provided:	No overseas service provided;	Packaging Detail:	Wooden package;
Supply Ability:	50 Set/Sets per Month;	Condition:	New;
Dimension(LWH):	860X500X1860mm;	Max. round stee can be forged:	68mm;
Max.square steel can be forged:	52x52mm;	Certification:	CE ISO;
Brand Name:	HELI;	Payment Terms:	L/C,T/T;
Place of Origin:	Shandong China (Mainland);	Port:	QINGDAO;
Motor power:	4kw;	Working area height:	245mm;
Dimensions of hammer die:	120x50mm;	Hit frequency:	245min-1;
Delivery Detail:	25 days;	Model Number:	C41-40DB;
motor rotate speed:	1440 r.p.m;	Voltage:	220V/380V/415V;
Weight:	1140KG;	Falling parts weight:	40kg(92LBS);
Total weight:	1140kg;	Warranty:	13 Months;
Power(W):	4kw;

Product Description

Product Application

C41-40DB TYPE pneumatic forging hammer is a kind of free forging hammer.It can be used for all kinds of free forgings,such as stretching,upsetting,puching,hot shearing,forged welding,bending and twisting.It can be used for die forging with boster dies,but can’t be used for closed die forging,because the blow energy of close die forging is very big,the hammer rod,guide,working cylinder…ect main parts will be damaged.

Item Name	UNIT	C41-40DB
Falling Part weight	KG	40
Maximum hit energy	KJ	0.53
Hit frequency	min-1	245
Working area height	mm	245
Hammer tup axis to frame front	mm
Hammer die surface	mm	120*50
Maximum round steel can be forged(diameter)	mm	68
Maximum square steel can be forged	mm	52*52
Overall dimensions	mm	18207501880
Motor power	kw	4
Motor rotate speed	r.p.m	1440
Total weight	KG	1150

Main Features

1) Simple structure in single type ,easy in installation and movement.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High hit engergy double way to control the die up and down.

4) Running in a high frequency,durable ,stable and no pollution

5)Optional parts:install the electric elements to control start and stop running.

Certifications

Detailed Images

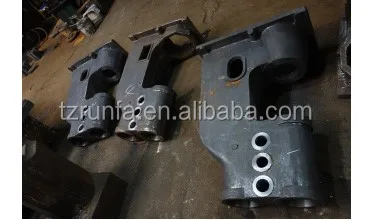

Hammer Frame

Name: Hammer frame body

Brand: HELI

Original: CHINA

The hammer frame body adopt expensive resin cast with high rigidity to ensure the frame body never flex or warp.It is even the most heavier

among hammer frame..

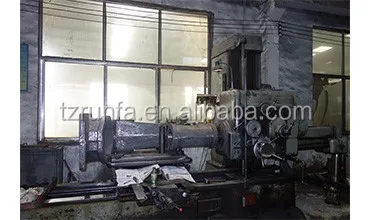

Maching Detail

The casted smooth frame body must via many process

before assemble to make sure all the cylinder and parts machined perfectful.

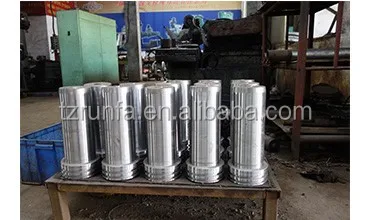

Hammer Ram

The hammer ram are machined with cnc lathe machine to keep high precision and well fit with the smoothy cylinder.It is also use special forged steel and many other process deal with.

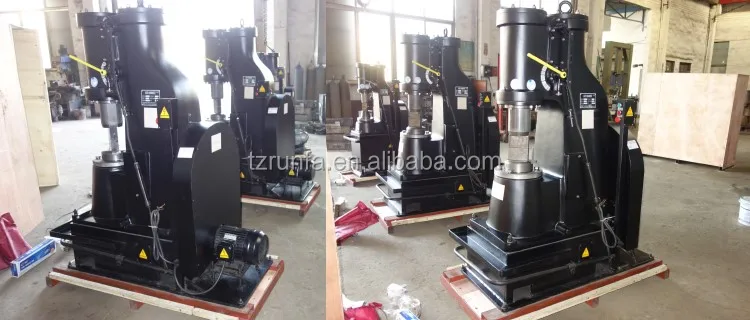

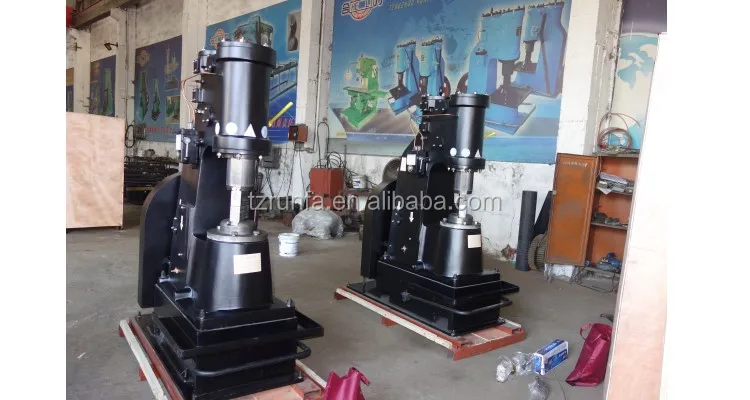

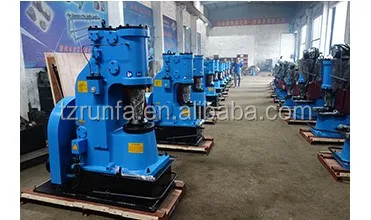

Finished Produce

each hammer must be run and test about 72hours to make sure

all the movable parts runs well and smooth without any abnormal noise.And then the hammer would be prepare to paint.Each hammer are full of "over perfectful".
