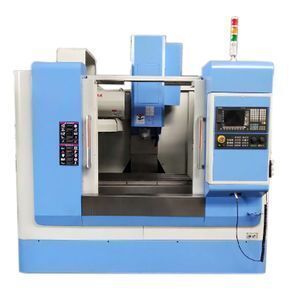

Small CNC Vertical Milling Machine XK7136/XH7136

Supplier: Tengzhou Runfa Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Fred Lee
Price: $17800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Table Travel (mm):	900x400x500;	Rang of spindle speed:	1-6000/8000 r.p.m;
Spindle Taper:	BT40;	Place of Origin:	Shandong China;
Main motor power:	7.5kw servo motor;	Certification:	CE;
After-sales Service Provided:	Free spare parts,Online support,Video technical support;	Warranty:	1 Year;
From spindle nose to worktable:	80-550mm;	Spindle taper:	BT40;
Worktable size:	1000x360mm;	Dimension(LWH):	2000x2800x2500mm;
Range of Spindle Speed(r.p.m):	1-6000/1-8000;	CNC or Not:	CNC;
Payment Terms:	L/C,T/T;	Model Number:	XK/XH7136;
Packaging Detail:	exporting required package;	Voltage:	220V/380V/440V;
linear rail type:	X/Y 30(ball bearing)Z 35(ball bearing);	T-slots(mm):	3/18/80;
Port:	QINGDAO;	Type:	Vertical;
Positioning Accuracy (mm):	0.02mm;	Supply Ability:	30 Set/Sets per Month;
Max.laoding weight:	300kg;	Weight:	3600kg;
Brand Name:	RUNFA;	Repeatability (X/Y/Z) (mm):	0.015mm;
From spindle to column surface:	450mm;	Condition:	New;
Year:	2019;

Product Description

1. Linear rail (TAIWAN TBI);Ball screw and rolling ball bearing

2. Spindle taper BT40 (6000 or 8000 or 10000 R.P.M);Taiwan spindle

3. KND1000MI-C;

4. Automatic Collecting Lubricating system

5. Working lamp

6. 16 sets Bamboo type ATC-TAIWAN-DESU;

7. Pneumatic draw bar-TAIWAN AIRTAC;

8. Coolant system(water coolant and air)

9. full- guard

Item	Unit	XH7136
Worktable size	mm	1000 x 360
Travel of table X,Y,Z	mm	900 x 400 x 500
Size of T-Slots		3/18/80
Range of spindle speed	r.p.m	6000
Spindle taper		BT 40
Maximum Loading Weight	KG	300
Distance from spindle center to column surface	mm	450
Distance from spindle nose to surface of worktable	mm	80-500
Distance from table surface to floor	mm	800
Main motor power	kw	7.5(servo motor)
X,Y axis motor power	Nm	7.7/7.7(servo motor)
Z axis motor power	Nm	10(servo motor)
X axis Fast move speed	M/min	20
Y axis fast move speed	M/min	20
Z axis fast move speed	M/min	16
Locating precision	mm	0.02
Repeat Locating precision	mm	0.015
Linear rail type		XY 30(ball bearing)
Linear rail type		Z 35(ball bearing)
Speed of power feed	Mm/min	1-10000
Machine weight	kg	3600
Overall dimension	mm	2000 x 2800 x 2500

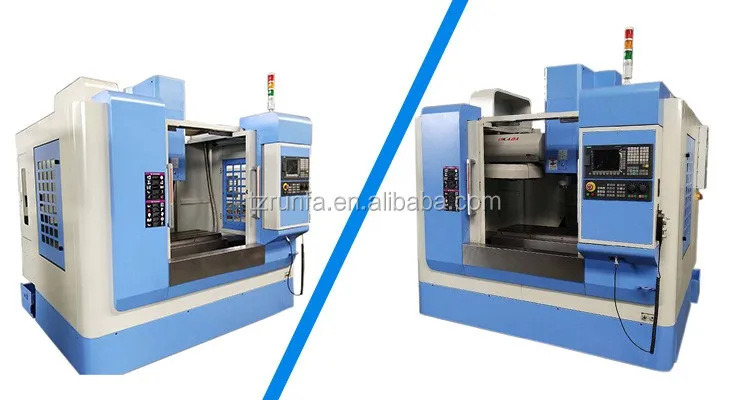

Products Show

Main Parts

High quality spindle unit

All the spindle unit use the taiwan

famous brand-VOLIS,POSA,ROYAL

KENTURN,NHZ.

High quality booster cylinder

All the booster cylinder use excellent

taiwan top supplier-Chen Sound,.

High speed ATC

Customer can choose different type ATC.there is arm type and bomboo hat type for optional parts.

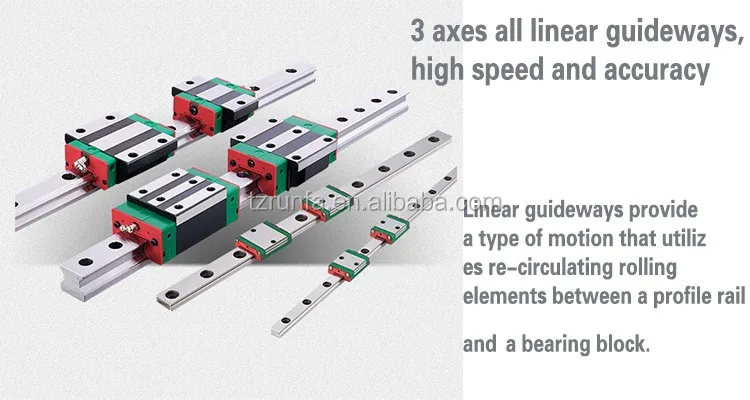

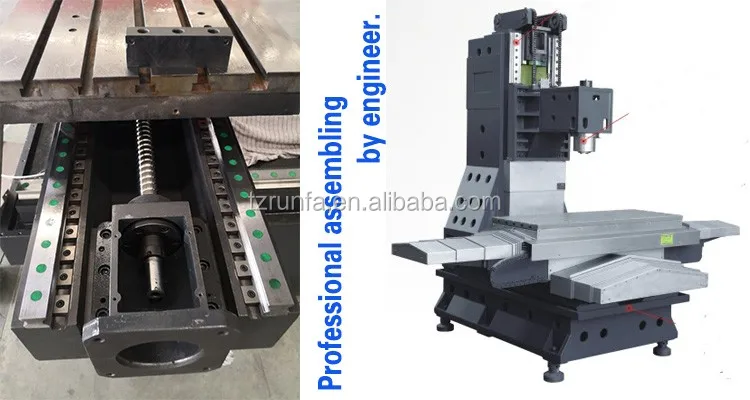

High precision linear rail guideway.

All the linear rail guideway

use top brand quality from

taiwin like HIWIN,TBI,PMI.

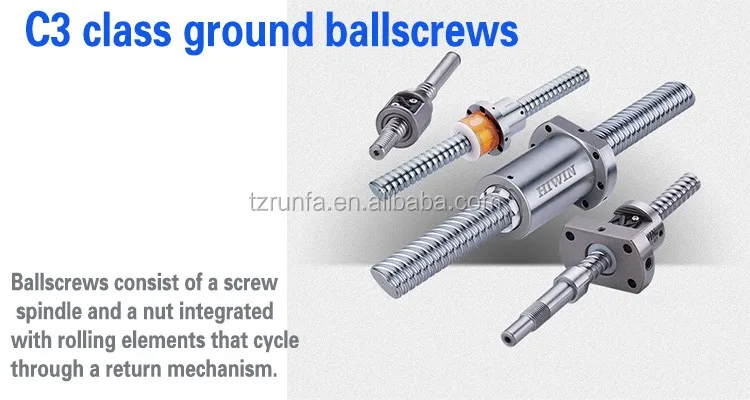

High class ballscrew.

All ballscrew use tainwan

top brand like hiwin.

International cnc control system.

the standard cnc control is KND1000.Customer can choose fanuc,siemens,GSK and so on.

Our Company

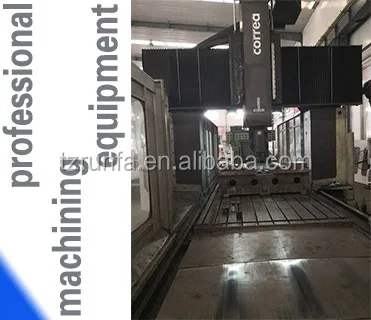

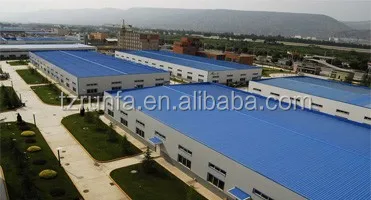

Our Factory.

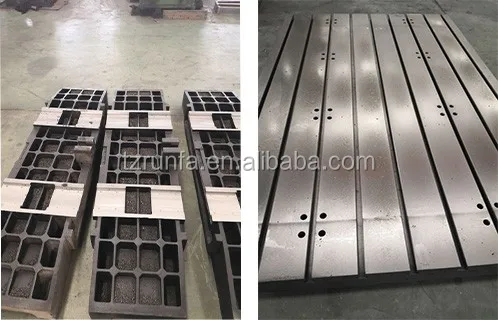

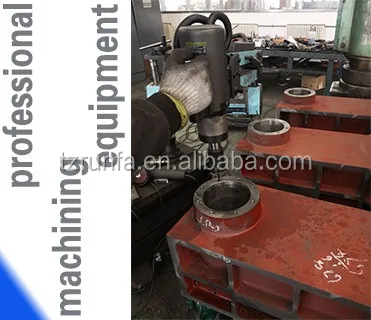

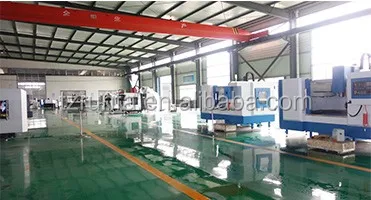

Our workshop.

Our Warehouse.

Our work team.

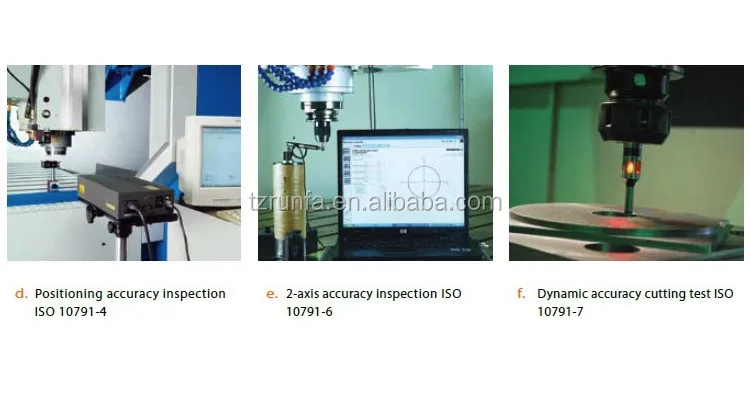

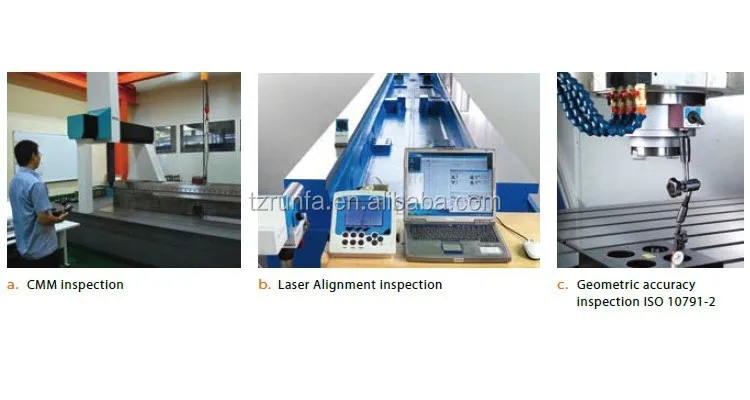

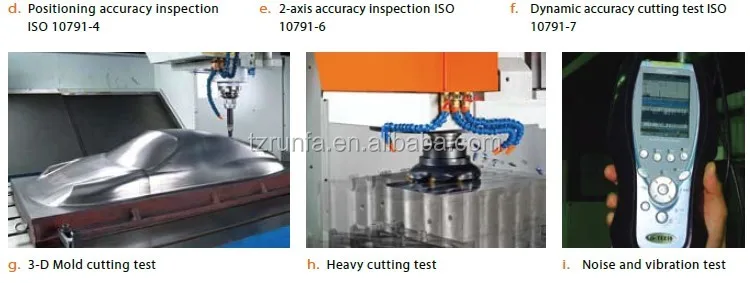

Complete quality inspect procedures to create high machine quality

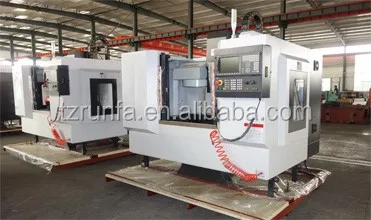

Packing & Delivery

Exporting required package

Our Certifications

Customer Photo

We welcome every customer come visit our facotry and talk about order/contract face to face.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.

Q: Do you provide OEM ?

A: Yes,we can producing the machine according to customers' requirements.

Q: What is your terms of payment ?

A: Payment<=1000USD, 30% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
