For sale pneumatic forging hammer with power 75kg and 9kg.

Supplier: Anyang Forging Press Machinery Industry Co., Ltd.
Region: Henan, China
Contact: Ms Yanli Xu
Price: $4550.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local service location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya , Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan	State of health:	new
Workspace height:	135mm	Warranty:	1 year
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Strike energy:	0.09 kJ
Maximum Hit Energy:	54kj	Throat Depth:	120mm
Weight of dropped parts:	9 kg	weight:	500Kg
Supply capacity:	1000 sets per year	Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Morocco
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Voltage:	220V-440V
Type of machine:	pneumatic	brand:	Anyang
Core component warranty:	1 year	Applicable industries:	Manufacturing plants, home use, smithy
Structure:	piece	After-sales service provided:	Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support
Certification:	CE/PEOP/ISO9001	Mechanical test report:	if
Marketing Type:	normal product	Work piece square:	25*25 mm
place of origin; place of origin:	Henan, China	strength:	1500 kW
Package preview:		Packaging Details:	plywood case
After warranty service:	Video technical support, online support, on-site maintenance and repair services	port:	Chinese port
External dimensions:	680420850 mm	Main selling points:	easy to operate
Video shipment inspection:	if	Dimensions (LWH):	680420850 mm
Hit frequency:	245/minute

Product overview

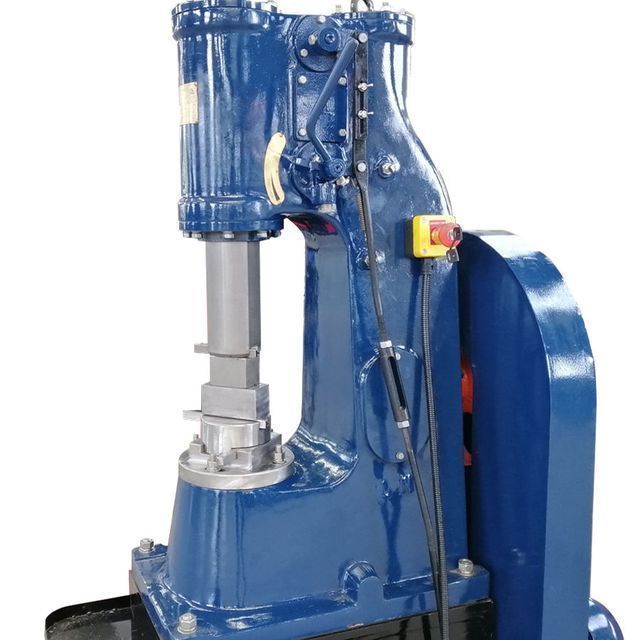

Anyang blacksmith with electric hammer

Anyang blacksmith power hammers are widely used in industrial free die forging from 150kg to 2000kg. The frame is cast iron and the internal parts are forged steel and precision machined. The design is based on the tried and tested designs of old European pneumatic hammers, many of which are still in use today.

Features and advantages:

1. Anyang gas forging hammer does not need an external air compressor. It will compress the air inside through a flywheel driven by a motor.

2. The cast iron frame will never bend or deform. Comparing the weight of the different hammers available, you will find that the Anyang is the heaviest. Cast iron is much more expensive to manufacture but allows designers to put mass and strength where it is needed.

3. The frame is guaranteed for life, the wearing parts are free from defects for one year, and the electrical components are free from defects for one year.

6. Low maintenance. Anyang electric hammer automatic and fully adjustable oil system. The two filler nipples are easily accessible. Large tapered roller bearings in the crankcase provide long, trouble-free life.

4. External drive belt. Designed to keep the belt dry and free from oil. This eliminates belt slippage and extends belt life. Changing the belt is quick and easy.

5. The air port is cast on the hammer. This eliminates internal rubber hoses and fittings.

8. Very controllable, making tool use easy. Operators can change tool or material thickness without adjusting the piston or stroke.

7. Simple design. There are only 3 basic parts (crankcase, compressor piston, plunger). The hammer can be disassembled and, if desired, rebuilt in a day or less.

9. EASY INSTALLATION - It takes about 30-45 minutes to install the hammer once it is out of the box.

12. All Anyang electric hammers have obtained CE certification. The design is safe.

10. One blacksmith electric hammer (C41-9, C41-15, C41-25, C41-40, C41-55, C41-75, C41-110), easy to install.

11. Anyang power hammer is suitable for making forged operating tools, forging hunting knives, scissors, general operating tools, farm implements and wrought iron parts for house gates and fences.

product specification

The main technical parameters
Model			C41-9	C41-15L	C41-25L	C41-40L	C41-55L	C41-75L	C41-110L
Dropping weight(kg)			9	15	25	40	55	75	110
Hitting energy (kj)			0.09	0.16	0.27	0.53	0.7	1	1.98
Hit frequency (min-1)			245	300	250	245	230	210	180
Working area height(mm)			135	160	240	245	270	300	355
D——throat depth (mm)			120	170	235	270	300	330	400
Serving	square	25×25	30×30	40×40	52×52	60×60	65×65	110×110
piece	Round (mm)	Φ30	Φ35	Φ48	Φ68	Φ75	Φ85	Φ120
strength	(kilowatt)	1.5	2.2	3	4	7.5	7.5	15
weight	including base	450	490	1080	1263	1750	2700	3300
L1 (mm)			1080	1180	1470	1650	1860	1620	1910
L2 (mm)			420	650	740	800	880	930	1070
H1 (mm)			850	1025	1330	1500	1750	2220	2382
H2 (mm)			1450	1575	1835	1920	2100
H3 (mm)			920	920	925	920	965	915	917
