Factory Direct Sales Universal Milling Machine 4H X6325 Vertical Turret Milling Machine

Supplier: Zaozhuang City Tengdong Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Teng dong
Price: $3300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Preview:		T-slot number and size:	3x16x65
Video external inspection:	if	Spindle hole taper:	Standard: R8 Optional: ISO30/ISO40
Spindle taper:	R8 or NT30	Supply capacity:	10 acres per day
Packaging Details:	wood	weight:	1200
Spindle speed range (rpm):	66 - 4540 rpm	Health status:	new
Voltage:	220V/240V/380V	Weight (kg):	1200
payment terms:	wire transfer	Table travel (Y) (mm):	400 mm
place of origin; place of origin:	Shandong China	Showroom location:	not any
brand:	Tengdong	Power (W):	3KW
Spindle motor power (kW):	3	Core components:	Bearings, motors, pumps, gears, engines
Applicable industries:	Hotels, Mechanical Repair Shops, Manufacturing Plants, Farms, Retail, Construction, Energy and Mining	Warranty:	1 year
Distance from spindle nose to table:	60-460	port:	Qingdao
model:	4H	Table travel (Z) (mm):	400 mm
Processing capacity:	medium	Main selling point:	high productivity
Table stroke (X) (mm):	850 mm	Marketing Type:	New Products 2021
Table size:	1270x254(10"x50")	Table travel (mm):	850,400,400
year:	2019	Spindle speed:	66-4540
Mechanical test report:	if	Core Components Warranty:	1 year
XYZ axis table travel:	850,400,400	Number of axes:	3
type:	vertical	Dimensions (LWH):	1700x1600x2150
Spindle stroke:	127	Arm travel:	400

Company Profile

Tengdong Machine Tool Co., Ltd. is a modern production group production enterprise mainly focusing on lathes, milling machines, drilling machines, planers, punching machines and other machine tools.

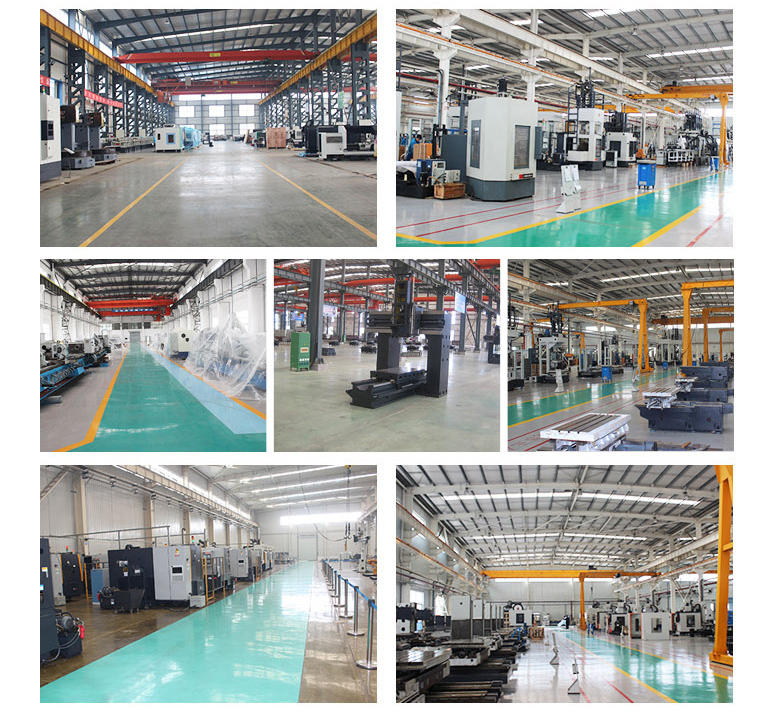

The company has three production bases, one import and export foreign trade company

Product Description

Main performance characteristics of high-precision universal milling machine 4H vertical turret milling machine:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity and long service life.
2. The main shaft adopts King combination diamond imported from Japan. After quenching and tempering and frequency conversion treatment, the 4 imported bearings (3 bearings for the main shaft of other manufacturers) are finely ground to ensure high quality and high precision.
3. The three-axis screw is finely ground and adopts advanced phosphor bronze nut, which is durable.
4. Horizontal milling adopts 4 gear shafts (other manufacturers use 2 gear shafts), with a wide range of speed change and torque.

application:
A milling machine is a general-purpose light metal cutting machine,
It has two functions of vertical milling and horizontal milling, milling medium, small parts plane, inclined plane, groove and spline, etc.Widely used in machining, mold, equipment, instrumentation and other industries.

Specification

Specification			unit	4H
table size			mm	1270x254 (10"x50")
T-slot number and size			mm	3x16x65
Workbench stroke	X	mm	850
			Yes		400
			Z		400
arm stroke			mm	400
Spindle nose to table distance			mm	60-460
Spindle hole taper			rpm	Standard: R8 Optional: ISO30/ISO40
Spindle speed				Standard: 16 (class) 50HZ: 65-4540
Spindle speed						Optional: (variable) 65-4000
Spindle stroke			mm	127
Spindle feed rate			mm/rev	Three steps: 0.04(0.0015”)/0.08(0.003”)/0.15(0.006”)
Spindle motor power			kilowatt	3

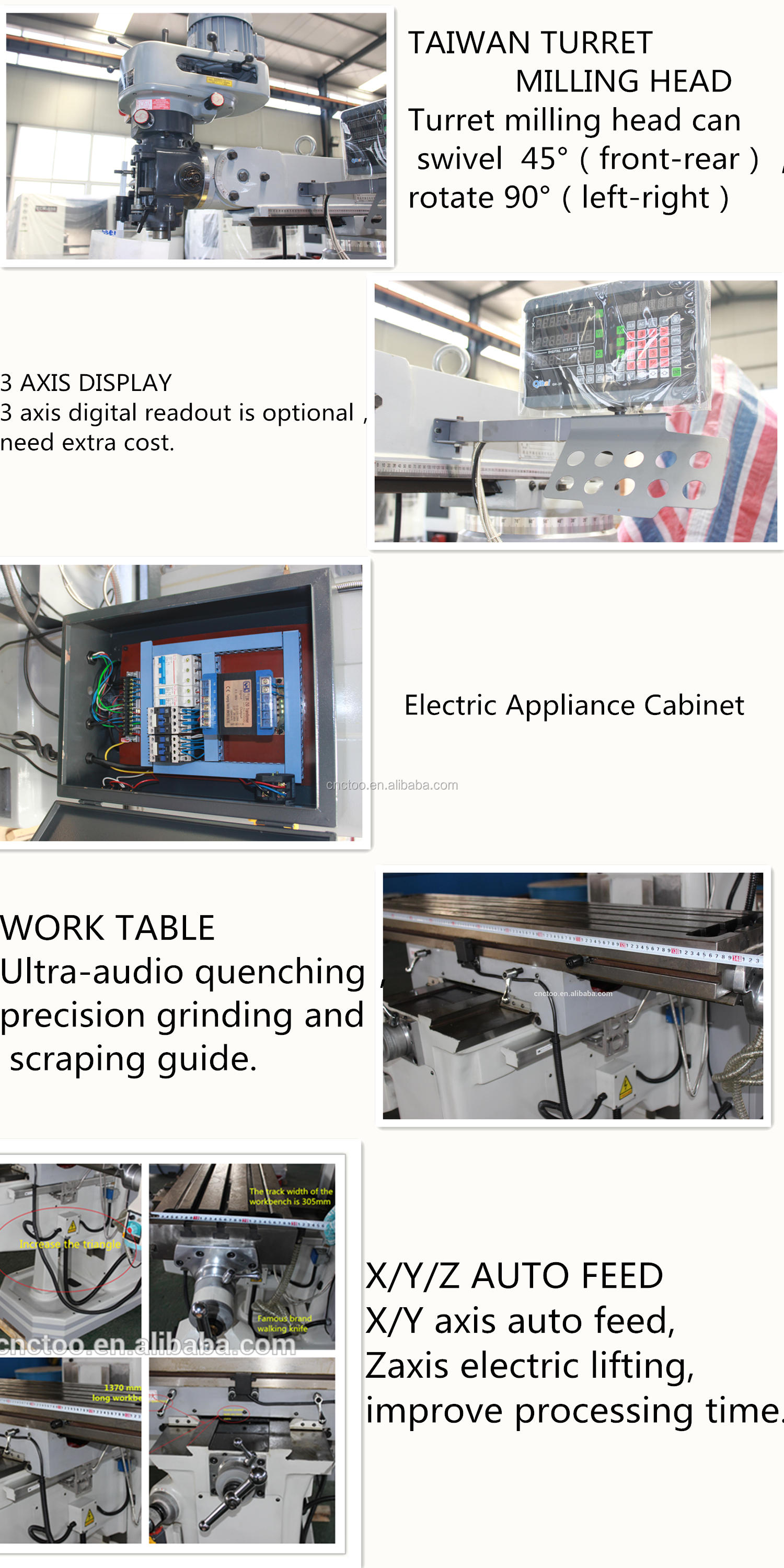

Head rotation (left and right)			°	90°
Head rotation (front-back)			°	45°
Dimensions (LxWxH)			mm	1700x1600x2150
machine weight			Kilogram	1200
