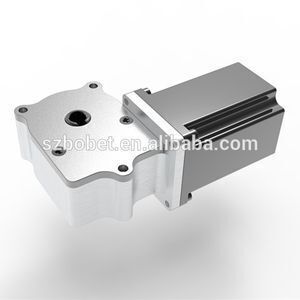

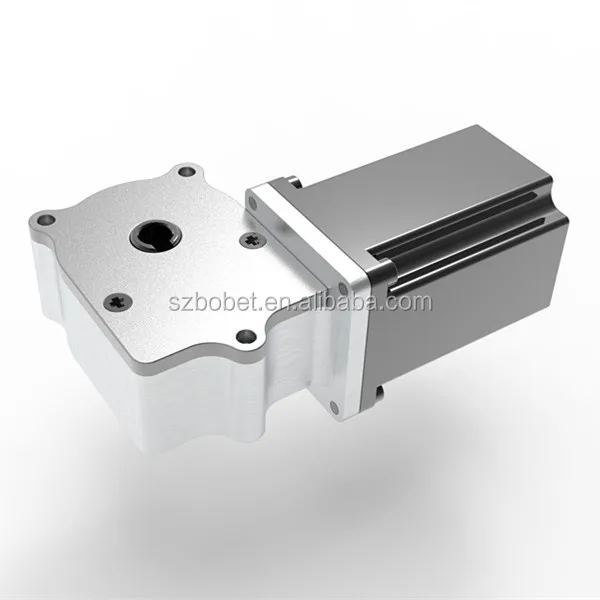

Bobet 60mm size double hole gearbox 1:20 stepper motor
- 130.00 >=2 pieces
| Certification: | CCC,CE,ROHS,UL; | Frame: | nema 24 (60*60mm); |
| Place of Origin: | Guangdong China (Mainland); | motor weight: | 1kg; |
| Phase: | 2; | Resistance Accuracy: | 0.55Ω; |
| Product name: | Bobet 60mm size double hole gearbox 1:20 stepper motor; | Brand Name: | Bobet; |
| Selling Units: | Single item; | motor length: | 67mm; |
| Model Number: | 60HSG67-4004; | Inductance Accuracy: | 1.8mH; |
| lead wires no.: | 4; | Current / Phase: | 4A; |
| other name: | stepper engine; | Single gross weight: | 5 KG; |
| Type: | Hybrid; | Package Type: | Standard Export Carton And Pallet Customized Label and Carton Acceptable nema 24 stepper motor step motor; |
| Key words: | stepper motor,nema 24 stepper motor,stepper driver; | Single package size: | 10X5X5 cm; |
| Application: | industrial cnc; |
Nema 24 stepper motor 60mm 2phase 1.8°
Gearbox ratio:1:20, 1:50,1:80
2 phase step motor nema 34 Hybrid stepper motor:
Electrical Specification:
| Model No. | Step Angle (°) | Voltage /Phase (V) | Current /Phase (A) | Resistance /Phase (Ω) | Inductance Phase (mH) | Holding Torque (kg.cm) | Detent Torque (g.cm.Max) | Motor Length (mm) | Lead Wires No. | Motor Weight (kg) |
| BST60HS45-3004 | 1.8 | 2.4 | 3 | 0.8 | 1.6 | 9.5 | 350 | 45 | 4 | 0.55 |
| BST60HS56-3004 | 1.8 | 2.4 | 3 | 0.8 | 2.4 | 16 | 400 | 56 | 4 | 0.8 |
| BST60HS67-4004 | 1.8 | 2.2 | 4 | 0.55 | 1.8 | 20 | 500 | 67 | 4 | 1 |
| BST60HS67-2808 | 1.8 | 3.4 | 2.8 | 1.2 | 4 | 21 | 500 | 67 | 8 | 1 |
| BST60HS88-4004 | 1.8 | 3.2 | 4 | 0.8 | 3.5 | 30 | 1200 | 88 | 4 | 1.4 |
| BST60HS88-2808 | 1.8 | 4.5 | 2.8 | 1.6 | 7 | 30 | 1200 | 88 | 8 | 1.4 |
| BST60HS100-3504 | 1.8 | 3.2 | 3.5 | 0.9 | 3.8 | 32 | 1400 | 100 | 4 | 1.6 |

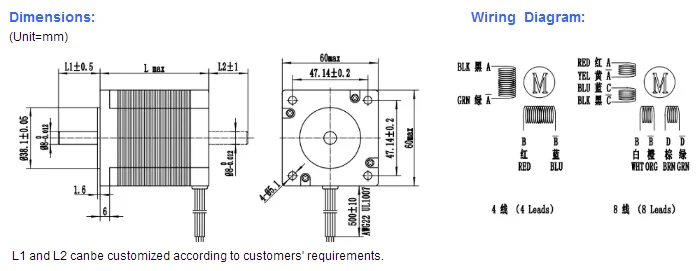

Nema 24 step motor drawing and wiring:

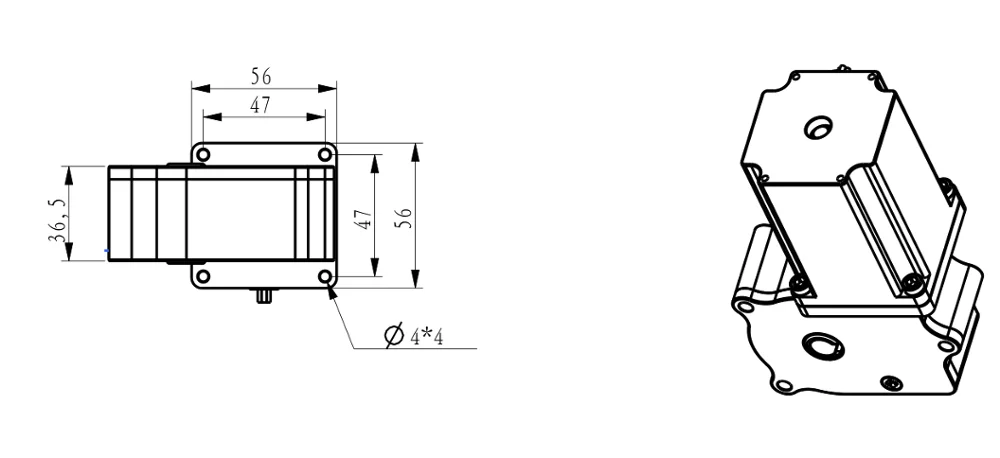

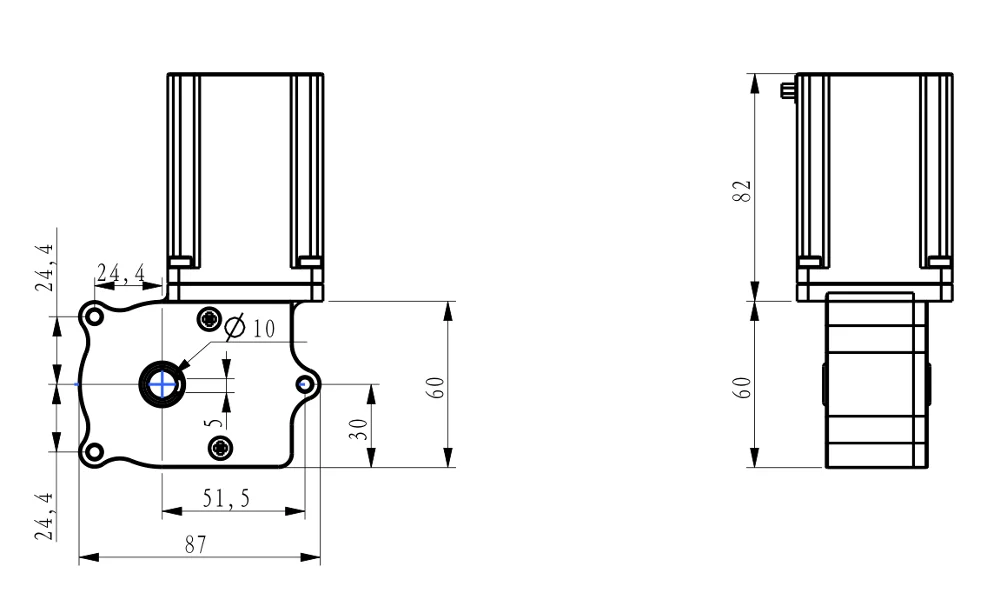

Gearbox drawing:
Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.
Our products are widely used in 3D printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.
