Stepper motor drives high-precision worm gear 360-degree rotation CNC indexing precision electric indexing table CNC

Supplier: Shenzhen Bobet Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr John Qu
Price: $860.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Angle range:	360 degrees	Health status:	new
Gross weight per piece:	2.000 kg	Showroom location:	not any
brand:	BM	speed:	10 degrees/second
Packaging Details:	Packaging details: Product packaging: 25020050(mm)/Pie GW(Carton): 2 KG	project name:	Electric Turntable Worm Gear Indexer Electric CNC Indexing Table
brand:	BM	Platform size:	100mm
Drive type:	worm gear	Marketing Type:	New Product 2020 CNC Table Parts
Repeatability:	0.01(0.02) degree	type:	table
Sales unit:	single product	Single package size:	25X20X15 cm
Material:	Metal	Model:	BM-MA100
Core components:	Bearings, gearboxes, motors, gears	solve:	0.01 degrees
After-sales service provided:	Online support, video technical support	engine:	NEMA17 stepper motor
Warranty:	1.5 years	Local service location:	Thailand, Japan
Video shipment inspection:	if	Mechanical test report:	if
After warranty service:	online support	Rail form:	bearing
Applicable industries:	Machinery repair shop, manufacturing plant, advertising agency	positioning accuracy:	0.02(0.005) degrees

Stepper motor drives high-precision worm gear 360-degree rotation CNC indexing precision electric indexing table CNC

Product Description

Stepper motor drives high precision worm gear 360 degree rotation CNC indexing precision motorized indexing table for cnc, two sizes available: 100/250mm.

Details of electric rotary CNC workbench

product name	Stepper motor drives high-precision worm gear 360-degree rotation CNC indexing precision electric indexing table CNC
Material	aluminum alloy
design size	100/200mm
technology	laser cutting, machine and manual bending,
pack	1pc/carton
application	Product machine (drilling, milling, engraving, diy, etc.)
Serve	Reply within 24 hours
LOGO printing	acceptable
company	More than 63 workers
Supply capacity	900pcs/week
price
to pay	Bank to Bank, PayPal, Western Union, MoneyGram
leading time	3-4 working days, subject to the order quantity
Delivery methods	DHL, UPS, FedEx, sea and air door to door service
MOQ:	1
delivery port	Shenzhen
to quote	According to size, quantity, design, etc.

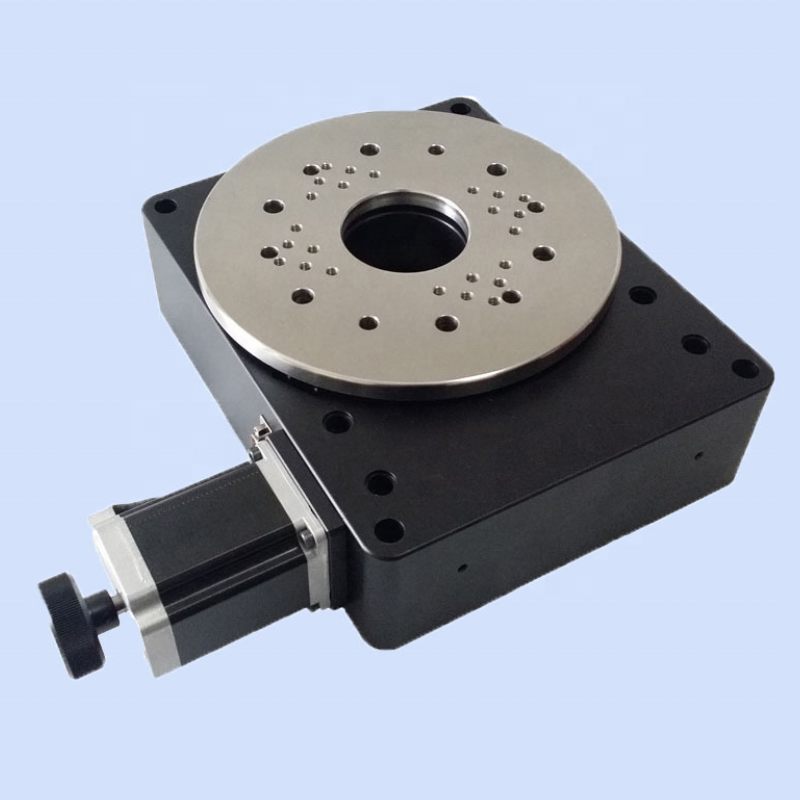

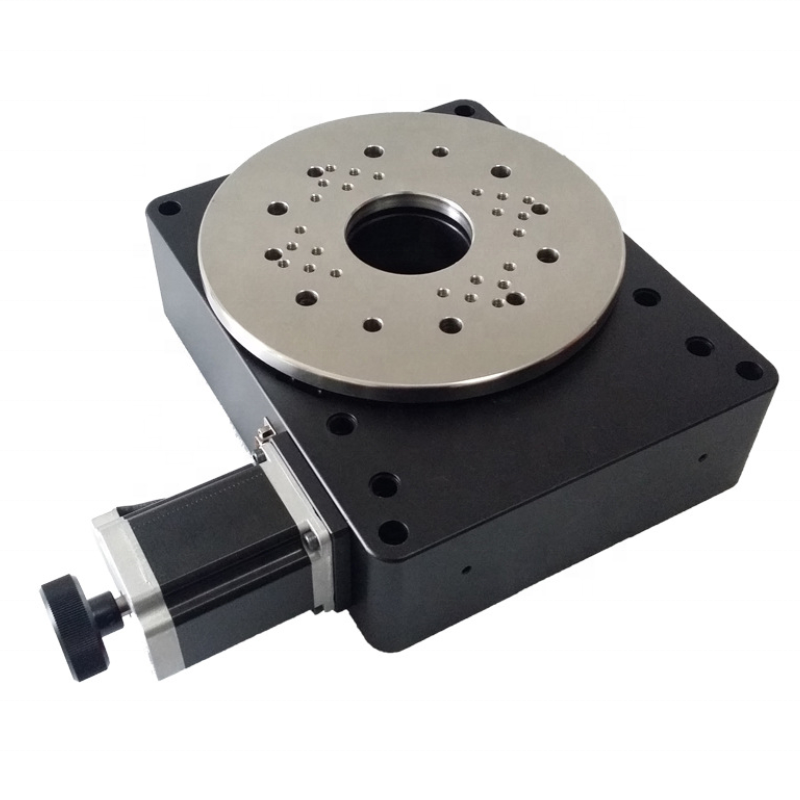

High-precision electric turntable (worm gear):

Features:

*Standard stepper motor

*The rotating shaft system is processed by multiple processes

*Adopt the precisely developed worm gear structure

*The designed empty back structure can adjust the empty back gap caused by long-term use

*The outer scale circle of the table is a radium engraved ruler, which is convenient for initial positioning and reading

* The stepping motor and the worm are connected by elastic coupling, and the transmission is synchronous

*The electric rotary table can be used horizontally or vertically, and can be combined with other types of tabletops to form a multi-dimensional electric adjustable tabletop

* Optional and limit functions can be added, initial zero position can be added, servo motors can be replaced, rotary encoders can be installed, and product modification and customization can be accepted

Stepping motor drive electric CNC turntable details:

The size of the electric turntable:

The popular application or usage of CNC 4th axis of this product, as shown in the figure below,

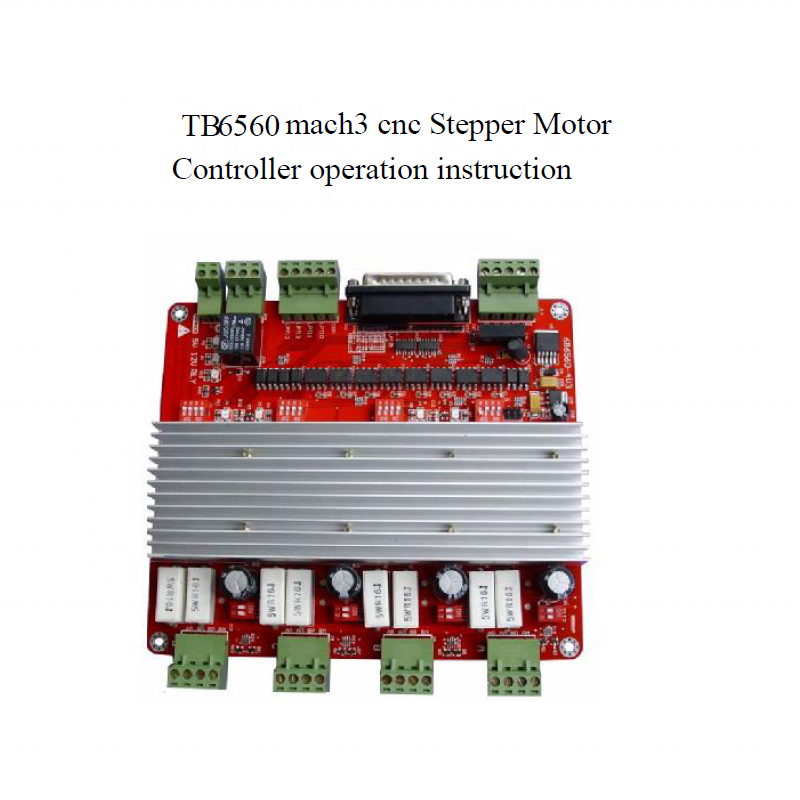

rated parts such as breakout boards, mach3 drive control boards for 4/5 axis,

The engine used in this machine, a hybrid 2-phase nema 23 stepping motor,

Electric gear motors, such as stepper motors, brushless DC motors, servo motors, gear motors, precision gearboxes, fourth-axis, fifth-axis and other electric rotary turntables, CNC parts.
