Micro Precision Adjustment Table Professional Edition CNC Milling Machine Cross Slide
-
Supplier: Linyi Hantesi Trade Co., Ltd. -
Region: Shandong, China -
Contact: Ms Anne Wang -
Price: $45.00 /unit -
Min. Order: 1 unit
Product details
| Supply capacity: | 1000 units per week | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Alibaba Trade Assurance |
| Material: | cast iron | Y-Travel: | 50-150 |
| port: | Qingdao, Shanghai, Ningbo, etc. | thing: | Cross slide |
| X travel: | 80-400 | Card: | Hunters and OEM |
| usage: | CNC machining center | Packaging Details: | Micro Precision Adjustment Table Professional CNC Milling Cross Slides are packaged in cartons and pallets. |
| type: | table, table | Model: | AKP200 |
| color: | required |

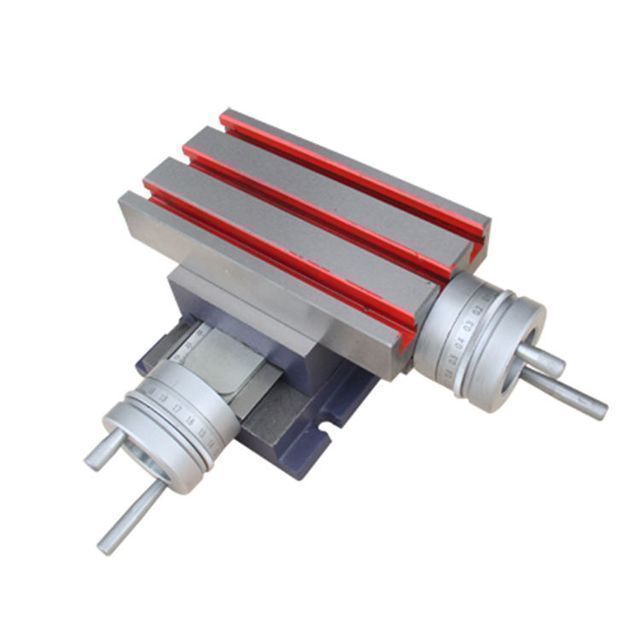

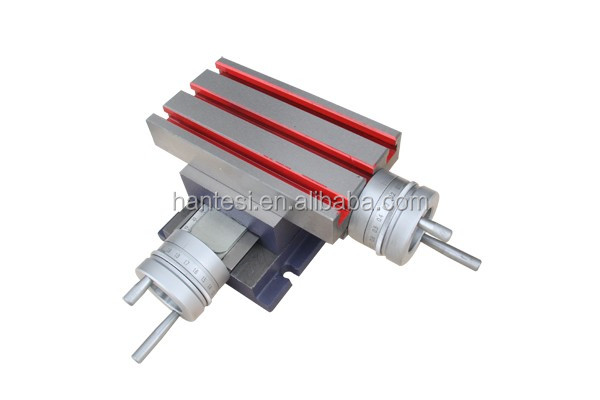

Micro Precision Adjustment Table Professional Edition CNC Milling Machine Cross Slide
Product Description
- Material: high carbon cast iron
- Features: high precision, strong stability, wide range of uses
- Uses: Widely used in anvils, drilling and milling machines, radial drilling machines for drilling, tapping, milling and milling angle steel, etc.

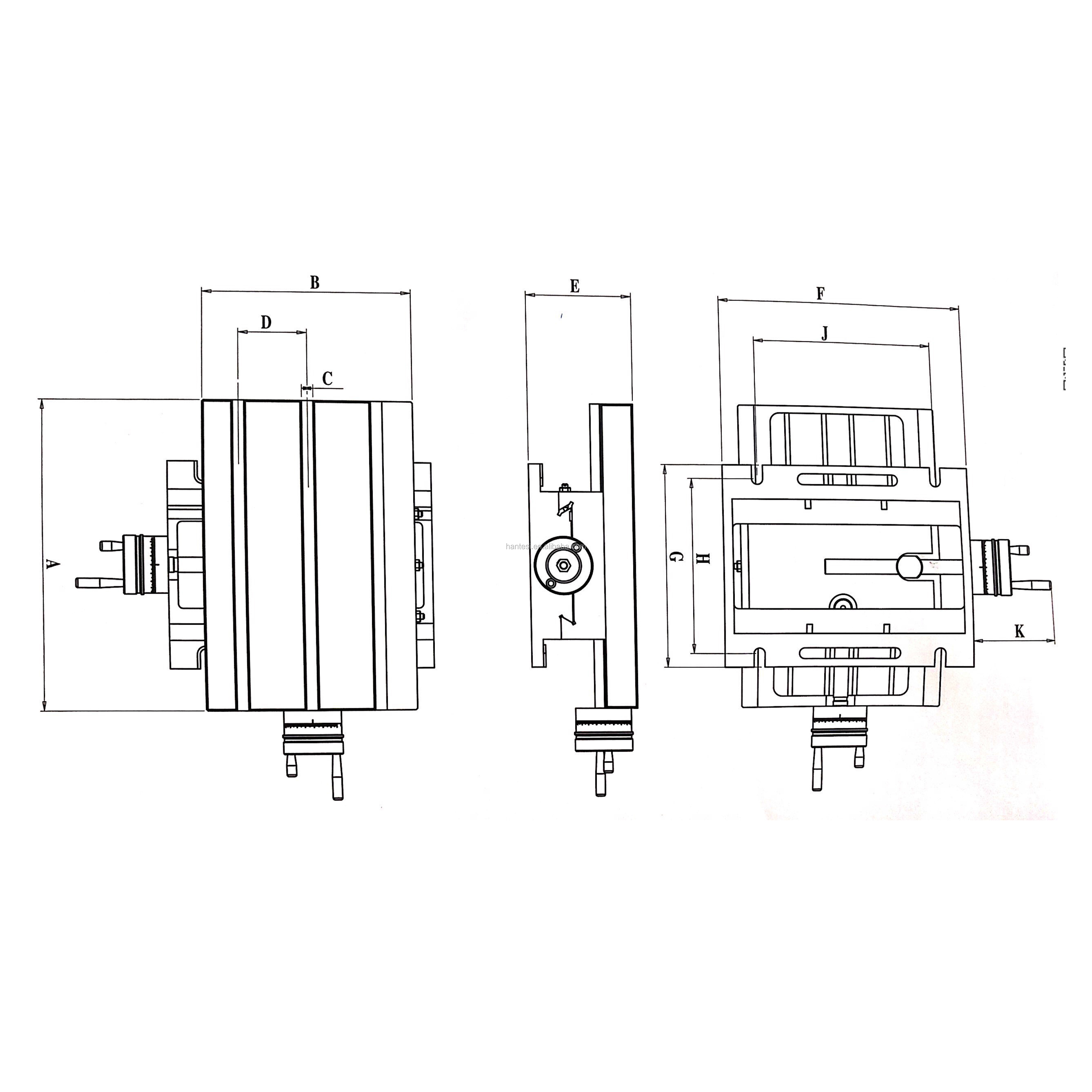

| Model | One | Second | C | D | E | F | G | H | J | K | X travel | Y travel | Net weight/GW |
| 201 | 185 | 100 | 10 | 35 | 102 | 170 | 130 | 114 | 100 | 96 | 80 | 50 | 10/11 |
| 202 | 225 | 175 | 12 | 72 | 108 | 225 | 175 | 148 | 160 | 96 | 105 | 90 | 16/17 |
| 203 | 330 | 220 | 12 | 72 | 115 | 275 | 220 | 190 | 200 | 96 | 190 | 100 | 23/26 |
| 204 | 425 | 240 | 12 | 72 | 125 | 335 | 276 | 240 | 245 | 144 | 225 | 150 | 41/45 |
| 205 | 600 | 240 | 12 | 72 | 125 | 335 | 276 | 240 | 245 | 144 | 400 | 150 | 51/56 |
product description
Any questions feel free to contact us: Whatsapp/WeChat:+86175680783711. Low MOQ: It can well meet your trial order needs.
2. OEM accepted: we can produce according to your samples or drawings.
3. Our product varieties and specifications are complete, we can provide customers with various products.
4. One product, we offer different quality and different price for customers to choose.
5. Our price is not higher than other factories and the quality is high.
6. Fast and cheap delivery: We get big discounts from freight forwarders (long contracts and large quantities).
7. Good service: We treat our customers as gods with high professionalism and enthusiasm.
Welcome to place an order
