10Bar 20Bar High Range Pressure Sensor Low Price

  • Supplier: Wuhu CFSensor Co., Ltd.
  • Region: Anhui, China
  • Contact: Mr. Kribye Yu
  • Price: $1.50 / >=10 pieces
  • Min. Order: 10 pieces
Product details
Item:10Bar 20Bar High Range Pressure Sensor Low Price;Zero output:-10------+10mV;
FS output:60-150mV;Model Number:XGZP161 SOP6;
Supply Ability:100000 Piece/Pieces per Month;Brand Name:CFSensor;
Pressure Range:350~2000kPaG(50~350PSIG);Output Impedance:4kΩ~6kΩ;
Response Time:2ms;Over Pressure:2X;
Input Impedance:4kΩ~6kΩ;Power Supply:≤10Vdc or ≤3.0mAdc;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;Port:Shanghai,Ningbo,Shenzhen,Tianjin etc,.;
Place of Origin:Anhui China (Mainland);Packaging Detail:PVC Tube (520*15*14mm/70pcs/Tube) (54*12.5*6.5cm/2240pcs/CTN);
Medium:Gas(Clean, air and Non-corrosive gases);

10Bar 20Bar High Range Pressure Sensor Low Price

10Bar 20Bar High Range Pressure Sensor Low Price

Product Description

10Bar 20Bar High Range Pressure Sensor Low Price



Specifications



Specifications

Min.

Typ.

Max

Unit

Pressure Range

350,500,700,1000,1500,2000

kPa

     50,70,105,150,225,300

PSI

3.5,5,7,10,15,20

Bar

Ambient Temperature

-40/-22



+140/284

℃/℉

Storage Temperature

-50/-58



+180/356

℃/℉

Bridge Resistance

4

5

6

Offset/Zero Output

-10



+10

mV

FS Output

60



150

mV

Temp. Coefficient of Resistance



300





500



ppm/℃

TCO(Temp. Coefficient of Offset)



-0.02





0.02



%FS/℃

TCS(Temp. Coefficient of Span)



-0.03





0.03



%FS/℃

Linearity

 -0.3

 ±0.10

 ±0.3

 %FS

Hysteresis

 -0.15

 ±0.075

 ±0.15

 %FS

Repeatability

 -0.15

 ±0.075

 ±0.15

 %FS

Long-term Stability

         -1.0



1.0

%FS

Response Time



2



mSec.

Note:

Unless otherwise specified,measurements were taken on base of above testing condition.

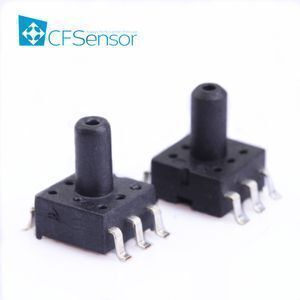

XGZP161 is a surface mounting pressure sensor based on CFSensor silicon based piezo resistive pressure sensor die(XGZP2406).



It’s specially manufactured for high pressure range,  temperature compensation for harsh requirement.



The sensor die is bonded on a substrate with a plastic cap and packaged in a 6-pin SOP.
With standard SOP6 package, XGZP is easy for users to install by surface mounting.

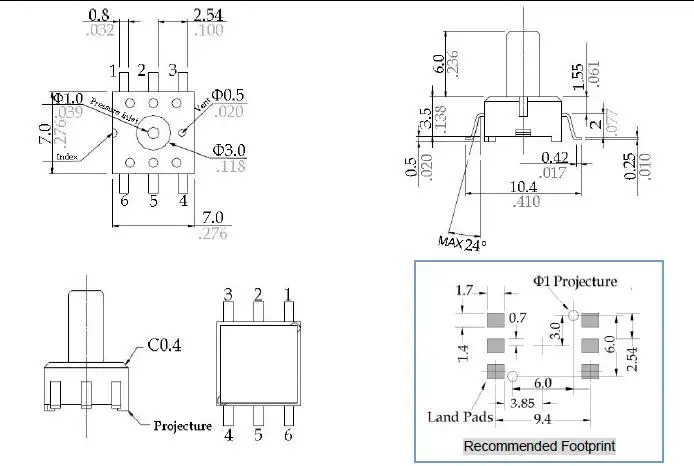

Dimension (Unit:mm/Inch)



                        1601 Pressure sensor.jpg

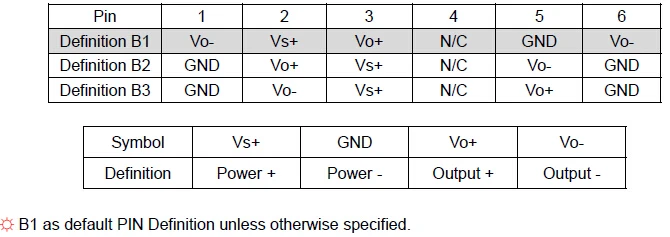

Equivalent Circuit Diagram

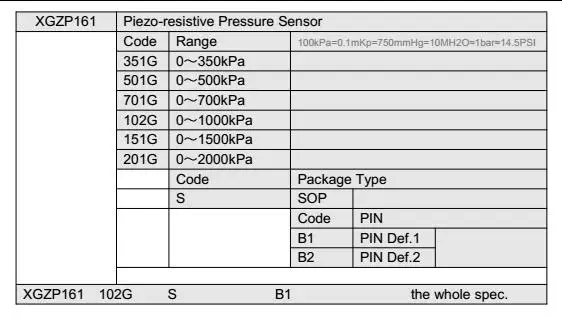

Order Guide

 161 Pressure sensor

Notes:

If customers have special requirements, please contact us and note clearly on the order.



Application

10Bar 20Bar High Range Pressure Sensor Low Price

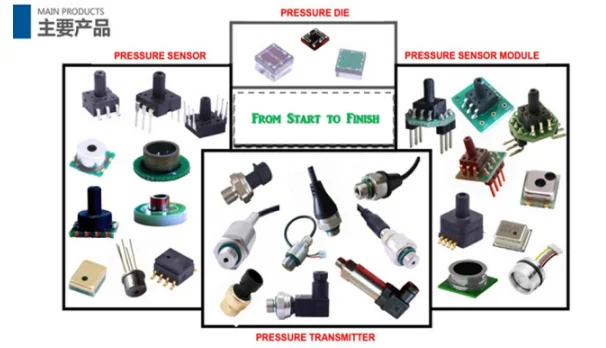

Company Information
