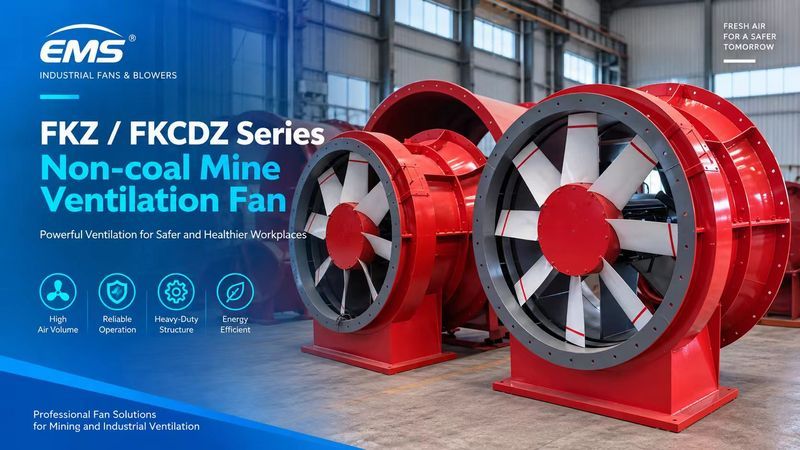

FKZ / FKCDZ Series Non-Coal Mine Ventilation Fan

Product Overview

The FKZ / FKCDZ Series Non-Coal Mine Ventilation Fan is designed for ventilation applications in underground metal mines, non-coal mines and other underground mining projects.

The fan can be used for main mine ventilation, exhaust ventilation, auxiliary ventilation and localized underground ventilation. Depending on the series, the fan can use a conventional axial-flow or counter-rotating axial configuration.

The FKZ Series is suitable for conventional high-volume mine ventilation, while the FKCDZ Series uses a two-stage counter-rotating configuration for applications requiring higher pressure capability.

Main Applications

FKZ / FKCDZ fans are suitable for:

· Metal Mine Ventilation

· Underground Metal Mines

· Non-Coal Underground Mines

· Copper Mines

· Iron Ore Mines

· Gold Mines

· Nickel Mines

· Lead-Zinc Mines

· Manganese Mines

· Underground Mining Projects

· Mine Development Tunnels

· Deep Underground Mines

· Mine Ventilation Stations

Ventilation Applications

Main Mine Ventilation

The fan can be integrated into centralized underground mine ventilation systems.

Typical airflow:

Underground Mine → Return Airway → Main Ventilation Fan → Exhaust Outlet

Auxiliary Ventilation

The fan can be used to ventilate localized underground areas, development headings and mining tunnels.

Exhaust Ventilation

The fan can remove return air, heat, dust and other contaminants from underground mining areas through the mine return-air system.

Forced Ventilation

Depending on the system design, the fan can also supply fresh air to designated underground areas.
