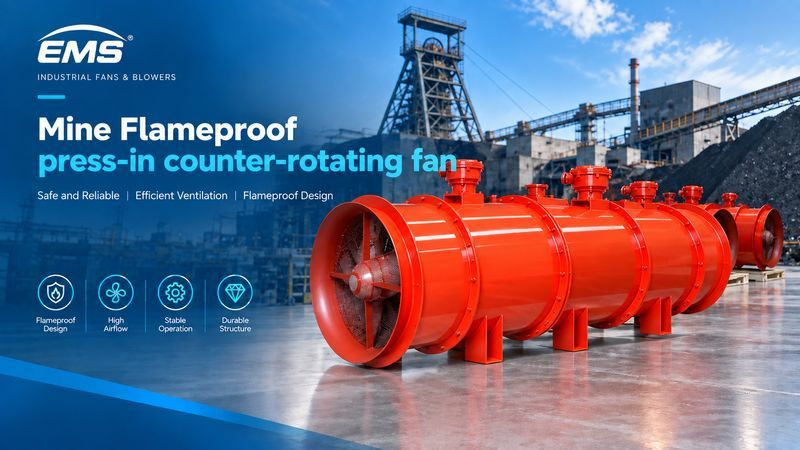

Mine Flameproof press-in counter-rotating fan

Product Overview

The Mine Flameproof press-in counter-rotating fan is a flameproof, counter-rotating axial fan designed for local and auxiliary ventilation in underground coal mines and other suitable underground mining applications.

The FBD series uses a two-stage counter-rotating impeller configuration. The first impeller adds energy to the airflow, while the second impeller rotates in the opposite direction to further increase the pressure capability of the fan.

This configuration makes the FBD fan suitable for mine heading ventilation, underground roadways, local ventilation stations, and ventilation duct systems, particularly where relatively high system resistance and long duct runs are involved.

EMS can configure the fan according to airflow, pressure, duct diameter, duct length, motor requirements, electrical specifications, and applicable flameproof requirements.

Recommended Overseas Product Names

· Mine  Flameproof press-in counter-rotating fan

· FBD Flameproof Forcing Fan

· FBD Explosion-Proof Auxiliary Mine Fan

· FBD Auxiliary Mine Ventilation Fan

· Flameproof Local Mine Ventilation Fan

· Explosion-Proof Local Ventilation Fan

· Mining Auxiliary Ventilation Fan

· Coal Mine Auxiliary Ventilation Fan

· Twin-Impeller Auxiliary Mine Fan

· Counter-Rotating Mine Ventilation Fan

Recommended H1

Mine  Flameproof press-in counter-rotating fan

This title combines the specific FBD model family with commonly understood mining ventilation terminology.

Main Applications

The FBD fan can be used for:

· Coal Mine Heading Ventilation

· Underground Roadways

· Mine Tunnels

· Development Headings

· Local Ventilation Stations

· Underground Mining Areas

· Auxiliary Ventilation Systems

· Long-Distance Duct Ventilation

· Suitable Underground Metal Mining Applications

· Selected Underground Engineering Projects

Key Features

Flameproof Configuration

The fan can be equipped with a suitable flameproof motor and electrical configuration for specified hazardous underground mining environments.

Counter-Rotating Impellers

The two impellers rotate in opposite directions, providing increased pressure capability within a compact axial-flow configuration.

Suitable for Duct Ventilation

The FBD configuration is suitable for forced-air delivery through flexible ventilation ducts where system resistance and duct length need to be considered.

Efficient Local Ventilation

Fan performance can be configured according to the required airflow, pressure, duct dimensions, and working-face conditions.

Compact Construction

The axial configuration facilitates transportation and installation in underground working environments.

Continuous-Duty Operation

Industrial-grade motor, bearing, impeller, and casing configurations can be selected for continuous mining operations.
