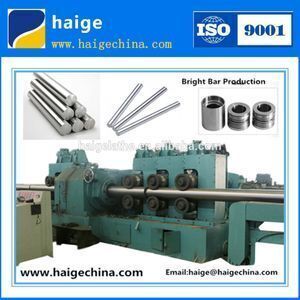

cnc metal bar or wire surface peeling high duty machine

Product details
Brand Name:haige;Packaging Detail:seaworthy packing;
Model Number:WXC30C;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Power(W):65KW;Dimension(L*W*H):12.0mX2.2mX1.5m;
CNC or Not:Normal;Weight:4.5T;
Port:Qingdao;Condition:New;
Place of Origin:Shandong China (Mainland);Type:lathe machine;
Voltage:380V;After-sales Service Provided:Engineers available to service machinery overseas;
Automatic Grade:Automatic;Supply Ability:50 Set/Sets per Year;

cnc metal bar or wire surface peeling high duty machine

Our Company

    Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipment produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.

    The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd & Yantai Hangjian Refined Special Steel Equipment Co.,Ltd. whose area is more than 70000m2. There are one hundred and forty staffs working in the factory. The factory is mainly engaged in producing and selling bar peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.

 from Outside the Factory

    Our company has strong R&D and production capacity. Equipped with specialized R&D center whose R&D capacity, software and hardware configuration, and the staff size all rank first in this field.  Keeping in step with the latest international technology, the R&D center develops the new equipment and upgrades the existing ones that provides a solid technical support and guarantee for our machines to keep technology leadership all the time.With advanced technology, high quality, high precision, high reliability, high efficiency,automatic line process and excellent after-sale service,our metal finishing equipment in full sets not only have been sold well to nearly thirty domestic provinces, cities, and autonomous regions, but also spread to Russia, Korea, India, Vietnam, North Korea, Pakistan, Taiwan, etc.

 from Inside the Factory

    Our company regards quality of products as the life. It has passed and strictly enforced the ISO9001 international quality system certification.Depending on strong software&hardware facilities and strict quality control, the company has passed the inspection and acceptance of the State Administration for Entry-Exit Inspection and Quarantine Bureau and won the centerless lathe " Export Quality License" as well as straightening machine " Export  Quality License".



Main Technical Parameters

Specification

WXC30C

Raw



Material

Diameter Range (mm)

Φ6~Φ32

Raw Material Length (mm)

1400

Tensile Strength (M pa)

1100

Surface Hardness

≤HB320

Curvature (mm/m)

≤1.5

Diameter Tolerance

according to GB 702-88 second group

Roundness(mm)

≤50% of diameter tolerance

Surface Roughness (Ra)

≤25~50mm

Finished

Goods

Diameter Range (mm)

Φ5.5~Φ30

Unilateral Cutting Depth (mm)

0.2~1.0

Diameter Tolerance

≤IT9 (standard tolerance grade)

Surface Roughness (Ra)

≤6.3μm

Roundness (mm)

≤0.03

Feeding Cutting Speed (m/min)

1.0~8.0(for continuous chips and high strength and hardness should reduce the speed)

Cutter Head Rotational Speed(rpm)

900-2500

Main Machine Motor Power (KW)

30 (2 Poles)

Auxiliary Machine Motor Power(KW)

4 X 2(4 Poles)

Main Machine Outline Dimensions

(Length*Width*Height) m

2.0mX2.2mX1.5m (for your reference)

Full Set Machine Outline Dimensions

(Including auxiliary machine) m

12.0mX2.2mX1.5m (for your reference)

Main Machine Weight
(including auxiliary weight) (T)

3.3 (4.5)

Total Capacity(KW)

65KW

Compressed Air Source(user prepare by themselves)

0.5~0.8MPa,1.8m3/min,more than 0.8 m3 gasholder, two-stage oil-water separator and compressed air freezing drier





peeling machine

    WXC Series Centerless Lathe(commonly known as peeling machine)is a new generation high-efficiency lathe machine which is specialized in processing of metal bar surface such as slender shaft. It can not only quickly remove defects on the surface of round steel such as decarburization layer and cracks, but also realize relatively high precision and roughness. It is especially suitable for processing of super long round steel bar, with working efficiency several times of the traditional processing technology.
    This machine is mainly applied in the production of bright material and bright steel bar, and in the field of machinery manufacturing, auto parts, bearing production, spring manufacturing, military enterprises, the production and processing of slender shaft, titanium bar, copper bar, aluminum bar, magnesium bar and other non-ferrous metal bar or tube, and in the field of other machinery equipment manufacturing for material preparation.

    WXC series of centerless lathe includes CNC type and semi - automatic type.Semi automatic type is operated both hydraulically and manually. For example, tool is adjusted manually, feeding and extracting are realized with hydraulic controlled clamping device, and auto material loading and unloading are finished with pneumatic and electric controlled device. Operated with ease, high in cost performance, this machine is quite suitable for small or medium enterprises which requires lower degree of automation.





Machine Composition

Chip Conveying Device:

Function: To discharge iron dust from chip-extracting mouth which is at the bottom of    cutter head seat.

Structure: Chain-scraper chip cleaner is supplied by accessory manufacture, iron dust and coolant fall down to chip cleaner via bottom of cutter head, coolant falls down into water groove of machine body via hole. Iron dusts are expelled by chain

scraper and intensively collected.



Hydraulic press system

  Function:Provider the relevant parts of equipment with working hydraulic oil according to design requirement and offer their working movement.

Constitute :this production line has one set of hydraulic unit , which is on the right rear of the machine body. It consists of pumping set generator, various controlling valves, hydraulic tank and hydraulic pipeline. Connected by pipeline, oil tank and connector need to be distributed into everywhere of equipment.



The oil and gas lubrication system is especially designed to provide the effective lubrication for the high-speed rotating components, and is a reliable and economic method of lubricating for the high-speed spinning bearing. The lubricating oil has to be Great-Wall brand(or better brand with higher quality) mechanical oil or anti-wear hydraulic oil.



host machine and loading &unloading table:

Host is composed of a bed, spindle, oil air lubrication system, front clamping feed in, clamp car, rear clamping extracting, front guide, middle guide, rear guide,  driving components.









The cutting liquid circulation

cooling system is mainly composed of circulating pump, pipe, nozzle etc.

The circulating pump delivers the cutting liquid in the tanks to the nozzle near the cutting head through pipes, and cutting liquid is directly sprayed to the cutter and peeling chip. Most heat generated from the bar peeling is taken away by cooling liquid, which together with the peeling chip, falls down to the chip removal mouth, and flows back to water tank through pipe

Finished Products

     Our machines has been used in the preparation procedure of the following mechanical equipments manufacturing,such as slender shaft, hydraulic pneumatic components, bearings, springs, auto parts, textile machinery, cold forging  material processing, instrumentation, steel pipe, cutting tools, engineering machinery, sports equipment etc.. They can also be widely used in copper, titanium, aluminum, magnesium industry, petroleum, electric power, Bridges and other industries, for example, piston rod, optical axis, bolt, spring, gear rack, toothed bar, stainless steel bars, copper bars, titanium bars, aluminum bars, magnesium bars, bearing ring, tiebar roller pin, pin , light bars, screw, mandrel, petroleum- drill pipe, steel cable, pipe billet, etc.





After-Sale Service

    Our company has perfect after-sale service system can provide after-sale service and technical support all over the world to ensure the timely maintenance and support which makes customers be at ease.Creating value for customers is our unremitting pursuit.
