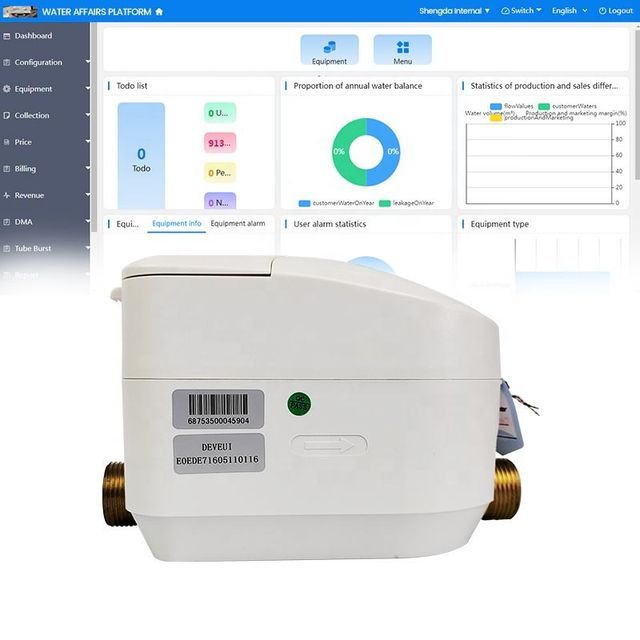

Lorawan intelligent ultrasonic water meter software dn15 with valve

Supplier: KAIFENG SHENGDA WATER METER CO., LTD
Region: Henan, China
Contact: Ms Miranda Tian
Price: $65.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Material:	brass material	model:	LXU-15
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Alipay, Wechat, Paypal, etc.	Customization support:	Processing
port:	Qingdao, Shanghai, Shenzhen, etc.	Packaging Details:	Lorawan intelligent ultrasonic water meter software dn15 with valve is packed in carton
size:	DN15~DN25	Warranty:	1 year
brand:	Shengda	feature:	digital water meter display
Key words:	Smart Ultrasonic Water Meter	standard:	ISO 4064 Class B
application:	family	Origin:	Henan, China
type:	Smart Ultrasonic Water Meter, Ultrasonic Water Meter	temperature:	Cold water: 0.1-50 / Hot water: 50-90
color:	white	product name:	Lorawan intelligent ultrasonic water meter software dn15 with valve
Supply capacity:	5000pcs per month Lorawan smart ultrasonic water meter software dn15 with valve

Lorawan intelligent ultrasonic water meter software dn15 with valve

Technical Parameters:

caliber	DN15	diameter 20	..
Minimum flow (Q1)	0.01	0.016	..
General Process (Q2)	2.5	4.0	..
Maximum flow (Q3)	3.125	5	..
range ratio	250
level of accuracy	Grade B
work pressure	≤1. 6MPa
pressure loss	P40
degree of protection	IP65
Working water temperature	5～55℃
communication method	Lolawang/NB/GPRS/RS485
power supply	3.6V
key	Magnetic button
Screen	LCD8 digits
display range	0m3~+99999.999m3

Communication motherboard parameters:

Measurement methods	ultrasonic 2-channel	Exception reminder	Abnormal fault report, voltage and current alarm	Periodic reports	Periodically report data
historical data storage	Hourly/daily/monthly storage for 90 days	indicator light	Communication Light/Trigger Light	Battery voltage alarm	Alarm when the battery is below 10%
Call the police	buzzer	screen display	LCD	serial port	4 lines
external storage	256K	artificial intelligence setting	needle type 4 needles	ambient temperature	-40~85℃
supporting agreement	Big endian HEX	communication current	20MA	monitor	Digital Display

Lorawan intelligent ultrasonic water meter software dn15 with valve

Order Notes: The smart water meter has a built-in battery. Please communicate with the business manager for details before placing an order. Please do not place an order directly on the platform. For smart products, you need to check the specific product details and choose a special channel freight forwarder for transportation.

The delivery times on the website are not accurate. Please communicate with our business manager to confirm the specific time.
