Product details

Model Number:	LXSK-15E;	internal lithium battery:	more than three years;
Product name:	Factory price Prepaid Smart Card Water Meter with software;	Brand Name:	Shengda;
color:	blue;	Packaging Detail:	carton box for Factory price Prepaid Smart Card Water Meter with software;
Package Preview:	;	Size:	DN15mm;
Supply Ability:	30000 Piece/Pieces per Month Factory price Prepaid Smart Card Water Meter with software;	Operating voltage:	3.0~3.6v;
Place of Origin:	Henan China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal, wechat, cash, etc.;
Standard:	GBT 778;	Water termperature:	0.1~30℃;
Port:	QingDao, shanghai, shenzhen, etc.;	Pressure lose:	0.1mpa;
Type:	Multi-jet meters,Prepaid water meters;	Valve switch times:	more than 2000 times;
Max water pressure:	less than 1MPa;

Factory price Prepaid Smart Card Water Meter with software

Product Description

Shengda Water Meter offer you: Factory price Prepaid Smart Card Water Meter with software
1.Factory direct price
2.Nice quality
3.Quick shipping
4.No limit for MOQ, trial order is welcome
5.Online payment is acceptable
6.After sales services 7*24
7.Warranty: 12 months

8. 15 patented product;
9. Established in 1995, 20+3 years development process;
10. Support OEM according to your requirements;

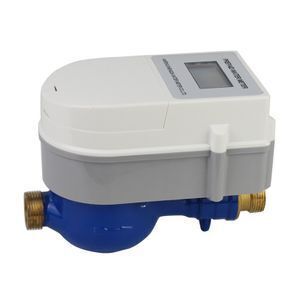

IC card smart prepaid digital water meter, (can be referred to as: IC card water meter, magnetic water meter, electronic water meter) can be classified to contact smart water meter and non-contact smart water meter, non-contact intelligent water meter, commonly known as: RF card water meter, Card water meter, widely used in the family, apartments, commercial buildings and other household charges of water, hot water use places. Factory price Prepaid Smart Card Water Meter with software

IC card smart prepaid digital water meter product features:
Smart IC card water meter:
1. Using non-contact IC card technology, wireless data transmission is used to solve the problems of waterproof, moisture-proof and anti-attack.
2, micro-power technology: Usually power consumption is less than 0.5μA, so that the battery life greatly increased, to ensure the use of more than 6 years.
3, electric suspension ball valve technology: anti-locking, non-fouling characteristics, can achieve low pressure loss, wear, power consumption, anti-rust, anti-blocking effect.
4, automatic valve discharge, anti-blocking, anti-rust technology: valve timing automatically switch action, the effective use of pipeline pressure caused by the instantaneous impulse of water, to achieve automatic valve discharge, to prevent valve rust die, fouling and other phenomena.
5, full seal design: all lines are all sealed with epoxy resin, good sealing.
6, anti-external, magnetic attack technology: When the external power, magnetic attack, the meter will automatically close the valve.

Working conditions:
Flow range: Q1~Q3 (Q4 short time work not change error)
Ambient temperature: 5℃~55℃
Ambient moisture: (0~93)%RH
Water temperature: cold water meter 1℃~40℃, hot watr meter 0.1℃~90℃
Water pressure: 0.03MPa~1MPa (short time work 1.6MPa not leak, no damage)
Pressure loss: ≤0.063MPa
Straight pipe length fore water meter is 10 times of DN, straight pipe length behind water meter is 5 times of DN.
Flow direction should be the same as the arrow on the body directs.
Work power supply:
The operating voltage of alternating current or direct current shall be in the range of -15% to 10% of the standard voltage and the frequency of AC frequency should be ± 2% of the standard frequency.
Card water meter should add following below requirements:
work pressure: 3.0V~3.6V
Static operating current: ≤5μA
LCD display range: 00000.0~99999.9
Climate and mechanical environment grade B
Electromagnetic environment class E1 level

Main technical parameters:

Model-DN	Flow range		Q3	Q4	Q2	Q1	Min. reading	Max. reading
	Q3/Q1	Q2/Q1	m3/h					m3
LXSK-15	80	1.6	2.5	3.125	0.05	0.03125	0.0001	999999
LXSK-20	80	1.6	4.0	5.0	0.08	0.05	0.0001	999999
LXSK-25	80	1.6	6.3	7.875	0.126	0.07875	0.0001	999999
LXSK-32	80	1.6	10	12.5	0.2	0.125	0.0001	999999
LXSK-50	80	1.6	25	31.25	0.5	0.3125	0.0001	999999

Factory price Prepaid Smart Card Water Meter with software

10PCS/CARTON BOX (DN15-DN25), 1 PCS/WOODEN BOX (DN40-DN50)
