Valve Controlled Wireless Remote Reading Smart Water Meter

Product details
Package Preview:;Color:Blue or customized;
Keyword:smart water meter;Brand Name:Shengda;
Name:Valve Controlled Wireless Remote Reading Smart Water Meter;Connection:thread;
Certification:CE, ISO, MID, etc.;Supply Ability:10000 Set/Sets per Month Valve Controlled Wireless Remote Reading Smart Water Meter;
Material:brass body;Place of Origin:Henan China;
Port:QINGDAO,SHENZHEN,CHINA;Packaging Detail:Valve Controlled Wireless Remote Reading Smart Water Meter is packed by carton box;
Standard:ISO9001 class b;Customized support:OEM;
Model Number:LXSY-15~25E;Warranty:1 year;
Core:ROLA model;Protection class:IP65/IP68;
Certificate:CE, ISO14001, ISO18001, etc.;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;
Type:Valve Controlled Wireless Remote Reading Smart Water Meter,Multi-jet meters;

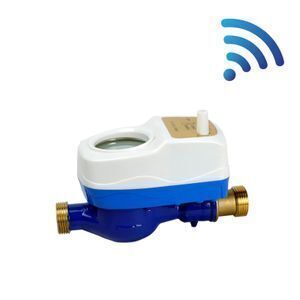

Valve Controlled Wireless Remote Reading Smart Water Meter



Product Description

      Wireless remote meter is based on the wired remote meter, added the wireless module, the water meter has a routing function, construction and installation is simple, convenient, the network process automatically completed, solved the complex wiring construction problems. Wireless valve remote control water meter is based on the wireless remote meter, added the valve control function, solved the problems that user maliciously arrears of water charges, charges difficult, achieved a remote real-time monitoring and remote switching valves and prepaid functions. Valve Controlled Wireless Remote Reading Smart Water Meter

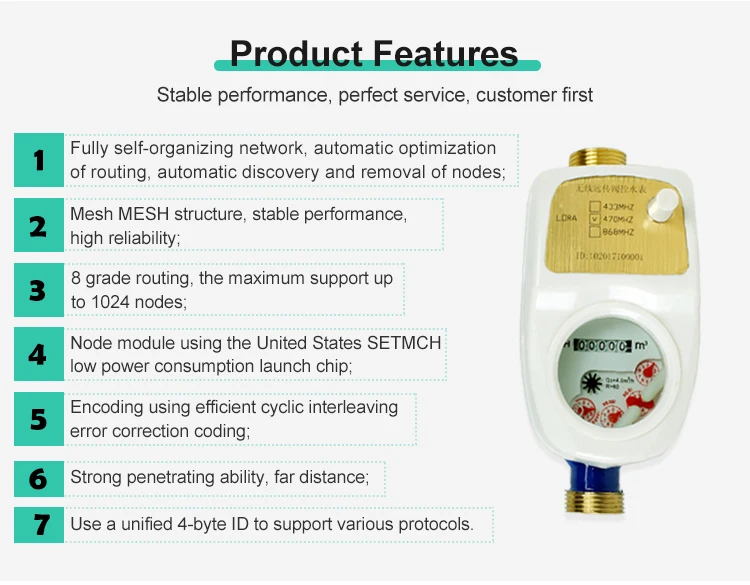

Wireless remote reading lora water meter features:
Wireless lora water meter:
1. Fully self-organizing network, automatic optimization of routing, automatic discovery and removal of nodes;
2. Mesh MESH structure, stable performance, high reliability;
3.8 grade routing, the maximum support up to 1024 nodes;
4. Node module using the United States SETMECH low power consumption launch chip;
5. Encoding using efficient cyclic interleaving error correction coding;
6. Strong penetrating ability, far distance;
7. Use a unified 4-byte ID to support various protocols.



Working conditions:

 Flow range  Q1~Q3 (Q4 short time work not change error)
 Ambient temperature  5℃~55℃
 Ambient moisture  (0~93)%RH
 Water temperature  cold water meter 1℃~40℃, hot watr meter 0.1℃~90℃
 Water pressure  0.03MPa~1MPa (short time work 1.6MPa not leak, no damage)
 Pressure loss  ≤0.063MPa
 Straight pipe length  fore water meter is 10 times of DN, behind water meter is 5 times of DN
 Flow direction  should be the same as the arrow on the body directs



Work power supply:
The operating voltage of alternating current or direct current shall be in the range of -15% to 10% of the standard voltage and the frequency of AC frequency should be ± 2% of the standard frequency.



Main technical parameters:

Model-DN Flow range Q3 Q4 Q2 Q1 Min. reading Max. reading
Q3/Q1 Q2/Q1 m3/h m3
LXSY-15 80 1.6 2.5 3.125 0.05 0.03125 0.0001 999999
LXSY-20 80 1.6 4.0 5.0 0.08 0.05 0.0001 999999
LXSY-25 80 1.6 6.3 7.875 0.126 0.07875 0.0001 999999

Valve Controlled Wireless Remote Reading Smart Water Meter





Packaging & Shipping







Company Information

About Shengda Water Meter

1.2 factories-+200 workers, +100 products          2.400 customers

3.23 years production experience                         4.+50000 square meters' area

5.Our stainless steel equipments are from DN6mm~DN3000mm,

6.Our customer service staff is from multilanguage talented persons, more intimately serve oversea's clients

7.Our brand "Shengda water meter & China instrument"

WE ARE THE ONLY ENTERPRISE IN CHINA INTEGTATED WITH WATER METER AND FLOW METER

We have cooperated with many famous companies in the world, if you give us a chance to serve you, we trust we'll be your best supplier in China.

WELCOME TO CONTACT US!





        Every visiting customer has a very good evaluation of our factory's strength and products. After understanding our corporate culture and services, they have a deeper trust in our factory and expressed long-term cooperation between us.



        We are responsible and kind hearted enterprise, we never employ child to work.
        We organize an LOVE ACTIVITY in June of each year.
        We always go to the orphanage and nursing homes to help the children and elderly people. We also care the disable persons, we employ them for their better life.

FAQ

FAQ: Valve Controlled Wireless Remote Reading Smart Water Meter



1.Are you a trade company or a manufacturer?
Kaifeng Shengda Meter Co., Ltd has been a professional manufacturer for over 20 years to undertake design and processing of all types of flow meter to provide production service and technical support for customers.



2.What to do if I have any other specifications for the current?
If you have any different requirements,just contact us and we will meet you.



3.If I need a sample for pretest, do you sale sample for this inquiry?
Yes, we can sale sample for pretest. If you need this service, please contact us and we will give you a quotation.



4.Can you produce the products according to my own drawings?
Yes, we can do OEM according to your requirement.



Please contact us for the WHOLE CATALOGUE, our technical engineers are waiting for solving your problems now!! Action now!!
