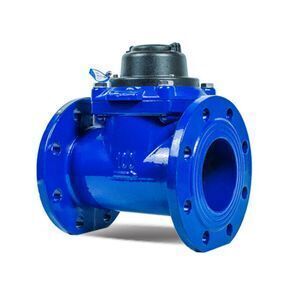

LXLC detachable mechanical flow meter water removable woltman water meter
-
Supplier: KAIFENG SHENGDA WATER METER CO., LTD -
Region: Henan, China -
Contact: Ms Miranda Tian -
Price: $55.00 /piece -
Min. Order: 1 piece
| measuring core: | detachale; | Package Preview: | ; |
| Warranty: | 1 year; | Supply Ability: | 1000 Piece/Pieces per Month LXLC detachable and mechanical flow meter water; |
| keyword: | mechanical flow meter water; | temperature: | 0.1~30℃,0.1~90℃; |

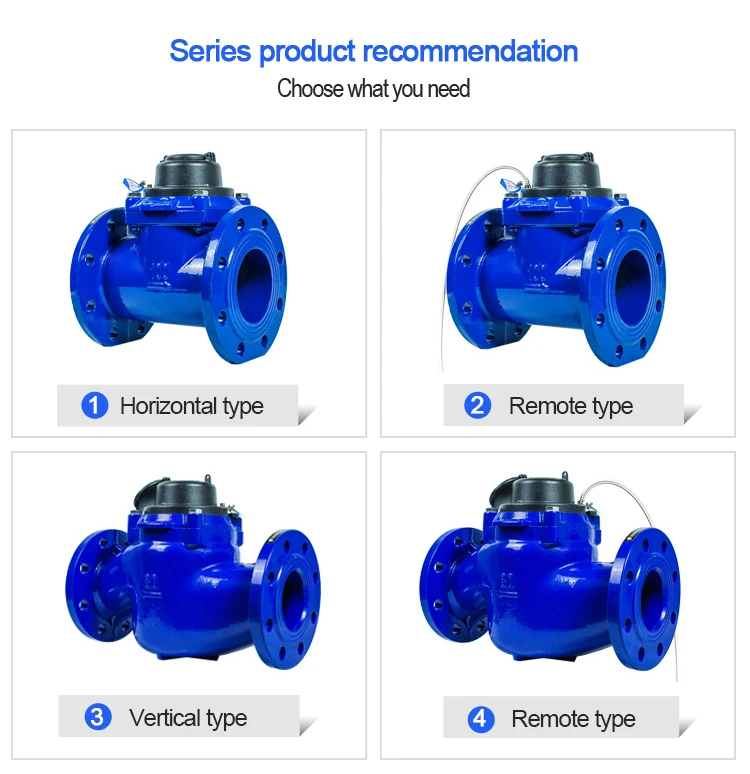

| type: | Horizontal woltman type water meter; | Model Number: | LXLC-50; |
| Packaging Detail: | carton or plywood box for LXLC detachable mechanical flow meter water removable woltman water meter; | connection: | flanged; |
| Name: | LXLC detachable and mechanical flow meter water; | Place of Origin: | Henan China; |
| Brand Name: | Shengda; | Customized support: | OEM; |
| Type: | Multi-jet meters; | Color: | bule or customize; |
| Certification: | CE, ISO, MID, etc.; | accurate: | class B; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal, wechat, cash, etc.; | installation: | horizontal; |
| medium conductivity: | more than 5μs/cm; | Port: | QingDao, shanghai, shenzhen, etc.; |
LXLC detachable mechanical flow meter water removable woltman water meter
LXLC detachable mechanical flow meter water removable woltman water meter
Feasure:
1. High abrasion proof bearing system,make sure standly work and dependly,increase mix flow of products.
2. Use stainless steel fastener,use epoxy powder coating and inside,hight limit antirust,increase the life of product.
3. Need additional water filter.
Specialty:

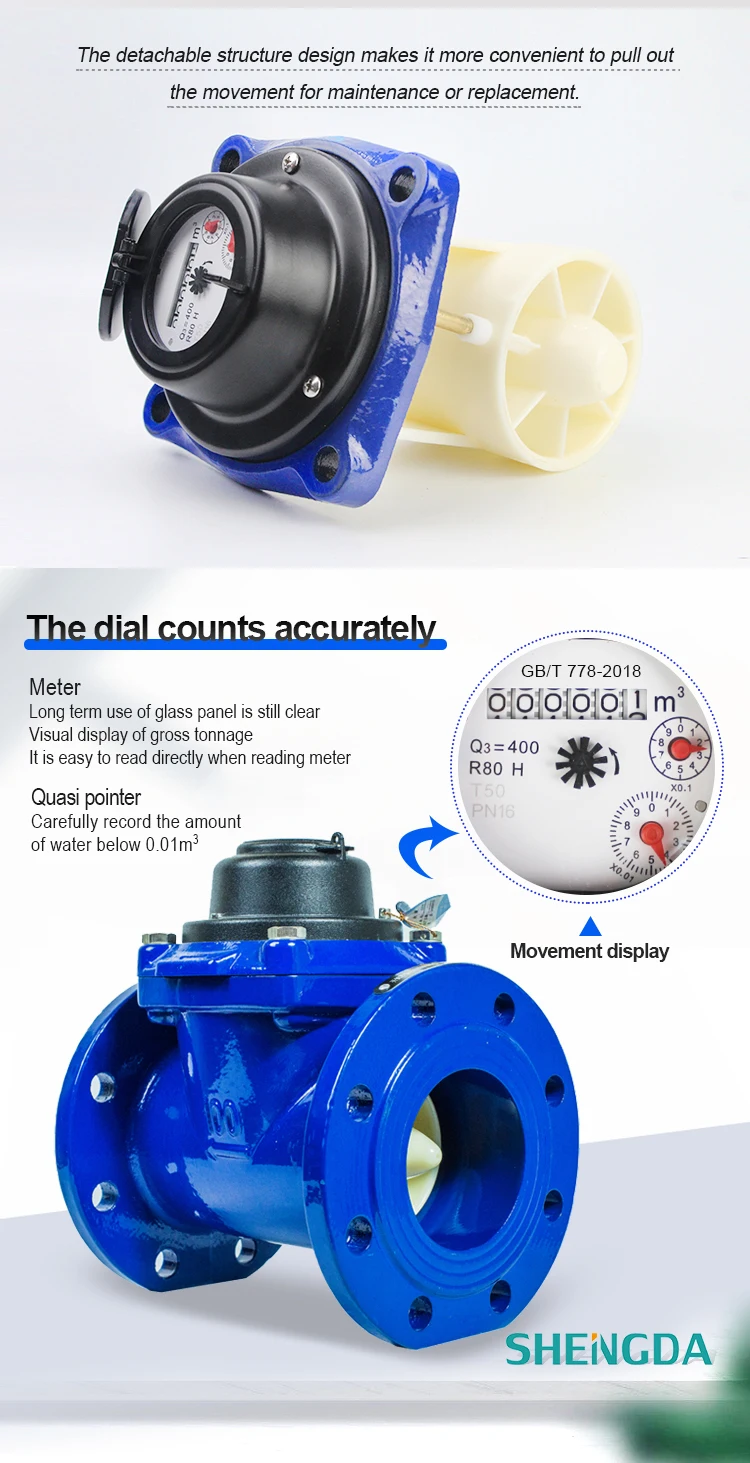

1. Dry magnetic transmission stucture,make sure the counters are clean,clear showing.
2. Detachable measuring core,convenient to maintance.

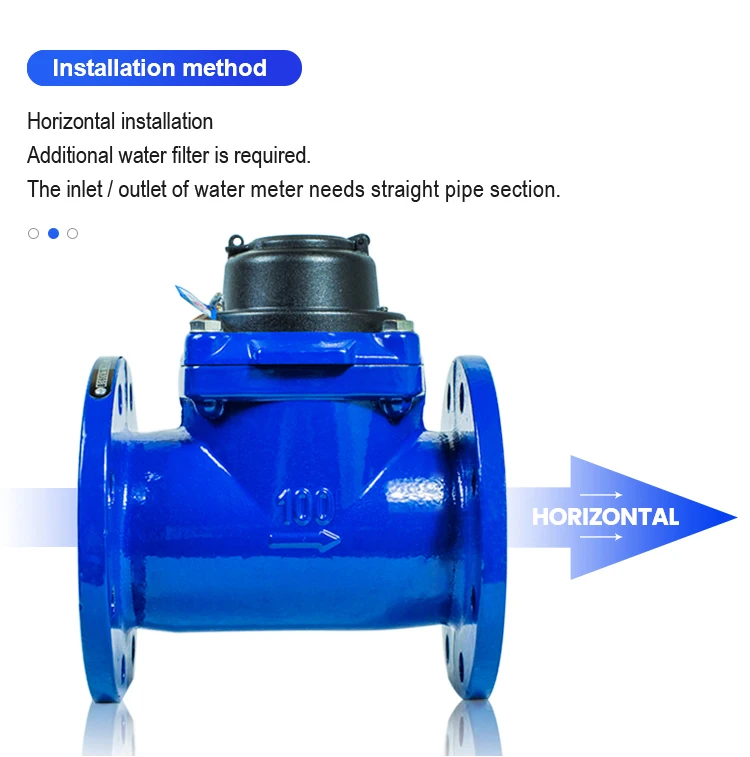

Use condition:
1. Cold water: T30, hot water: T30/90
2. Water pressure grade: MAP10
3. Need straight length at water inlet and outlet.
4. suitable for stable flow.
Main technical paramters: LXLC detachable mechanical flow meter water removable woltman water meter
| Model no. | Norminal DN mm | Flowrate | Q4 | Q3 | Q2 | Q1 | Min.reading | Max.reading | |
| Q3/Q1 | Q2/Q1 | m3/h | m3 | ||||||
| LXLC-50 | 2" | R50/R80 | 1.6 | 31.25 | 25 | 0.8 | 0.5 | 0.0005 | 999,999 |
| LXLC-65 | 2 ½" | 50 | 40 | 1.28 | 0.8 | 0.0005 | 999,999 | ||
| LXLC-80 | 3" | 78.75 | 63 | 2 | 1.26 | 0.002 | 999,999 | ||
| LXLC-100 | 4" | 125 | 100 | 3.2 | 2 | 0.002 | 999,999 | ||
| LXLC-125 | 5" | 200 | 160 | 5.12 | 3.2 | 0.002 | 999,999 | ||
| LXLC-150 | 6" | 312.5 | 250 | 8 | 5 | 0.002 | 999,999 | ||
| LXLC-200 | 8" | 500 | 400 | 12.8 | 8 | 0.002 | 999,999 | ||
| LXLC-250 | 10" | 787.5 | 630 | 20.16 | 12.6 | 0.02 | 9,999,999 | ||
| LXLC-300 | 12” | 1250 | 1000 | 32 | 20 | 0.02 | 9,999,999 | ||
| LXLC-350 | 14“ | 1750 | 1400 | 44.8 | 28 | 0.02 | 999,999,999 | ||
| LXLC-400 | 16” | 2000 | 1600 | 51.2 | 32 | 0.02 | 999,999,999 | ||
| LXLC-450 | 18“ | 2000 | 1600 | 51.2 | 32 | 0.02 | 999,999,999 | ||
| LXLC-500 | 20” | 3125 | 2500 | 80 | 50 | 0.02 | 999,999,999 | ||
| LXLC-600 | 24“ | 5000 | 4000 | 128 | 80 | 0.02 | 999,999,999 | ||
LXLC detachable mechanical flow meter water removable woltman water meter
LXLC detachable mechanical flow meter water removable woltman water meter
FAQ: LXLC detachable mechanical flow meter water removable woltman water meter
1.Are you a trade company or a manufacturer?
Kaifeng Shengda Meter Co., Ltd has been a professional manufacturer for over 20 years to undertake design and processing of all types of flow meter to provide production service and technical support for customers.
2.What to do if I have any other specifications for the current?
If you have any different requirements,just contact us and we will meet you.
3.If I need a sample for pretest, do you sale sample for this inquiry?
Yes, we can sale sample for pretest. If you need this service, please contact us and we will give you a quotation.
4.Can you produce the products according to my own drawings?
Yes, we can do OEM according to your requirement.
