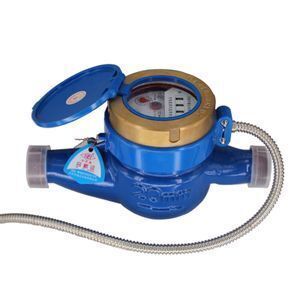

Factory supply 15mm RS485 modbus pulse output water meter
- 24.60 >=2 pieces
| Warranty: | 1 year; | Certificate: | ISO9001/ISO14001/OHSAS18001; |
| Single gross weight: | 1.4 KG; | Selling Units: | Single item; |
| Packaging Detail: | Factory supply 15mm RS485 modbus pulse output water meter is packed by carton box 10pcs/carton; | Model Number: | LXSY-15E; |
| Packing: | Cartons Box; | Product name: | Factory supply RS485 modbus pulse output water meter; |
| Certification: | CE, ISO, MID, etc.; | Material: | Cast Iron; |
| Temperature: | Cold Water:0.1-30 /hot Water:0.1-90; | Single package size: | 16.5X10X10.5 cm; |
| Installation: | Horizonal; | Standard: | ISO 4064 ClassB; |
| Keyword: | Water Meter Iso 4064; | Size: | DN15mm~200mm; |
| Customized support: | OEM; | Type: | Multi-jet meters; |
| Package Preview: | ; | Place of Origin: | Henan China; |
| Feature: | Long Working Life; | Brand Name: | Shengda; |
Factory supply RS485 modbus pulse output water meter
RS485-MODBUS Wired Remote Water Meter Product Use:
This product is mainly used for water metering in residential areas, commercial buildings, office buildings, industries, etc. with remote meter reading requirements and remote power supply capability.
Main technical parameters:
| DN |
Flow range Q3/Q1 |
Q4 | Q3 | Q2 | Q1 | Start flow | Min reading | Max reading |
| M3/h | L/h | M3 | ||||||
| 15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 6 | 0.0001 | 99999 |
| 160 | 25 | 15.625 | 5 | |||||
| 20 | 80 | 5 | 4 | 80 | 50 | 10 | 0.0001 | 99999 |
| 160 | 40 | 25 | 6 | |||||
| 25 | 80 | 7.875 | 6.3 | 126 | 78.75 | 12 | 0.0001 | 99999 |
| 160 | 63 | 39.375 | 8 | |||||
| 32 | 80 | 12.5 | 10 | 200 | 125 | 14 | 0.0001 | 99999 |
| 160 | 100 | 62.5 | 10 | |||||
| 40 | 80 | 20 | 16 | 320 | 200 | 40 | 0.0001 | 99999 |
| 160 | 160 | 100 | 35 | |||||
RS485-MODBUS water meter wiring method:
Red - Power supply
Black - Ground
White (yellow) - RS485+
Blue (green) - RS485-
Main performance parameters of RS485 water meter:
External input voltage: 12V;
Battery voltage: 3.6V;
Working current: 3mA;
Quiescent current: 10μ A;
Switching filter time: 500ms;
Communication method: RS485;
Communication protocol: MODBUS (RTU mode);
Baud rate: 9600bps;
Verification: no verification;
Data bits: 8 digits;
Stop bit: 1 bit.

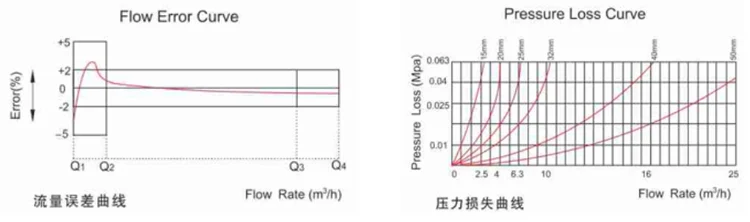

Water meter curve:

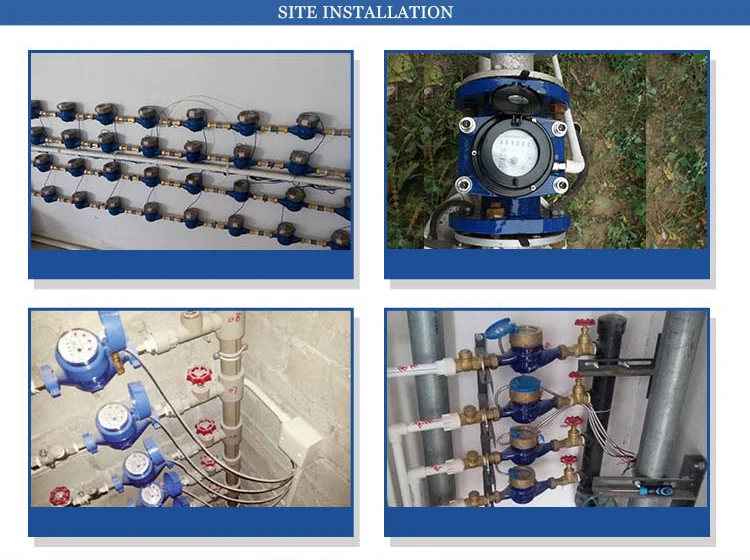

Application cases:
Packaging & Shipping:
Certificates:

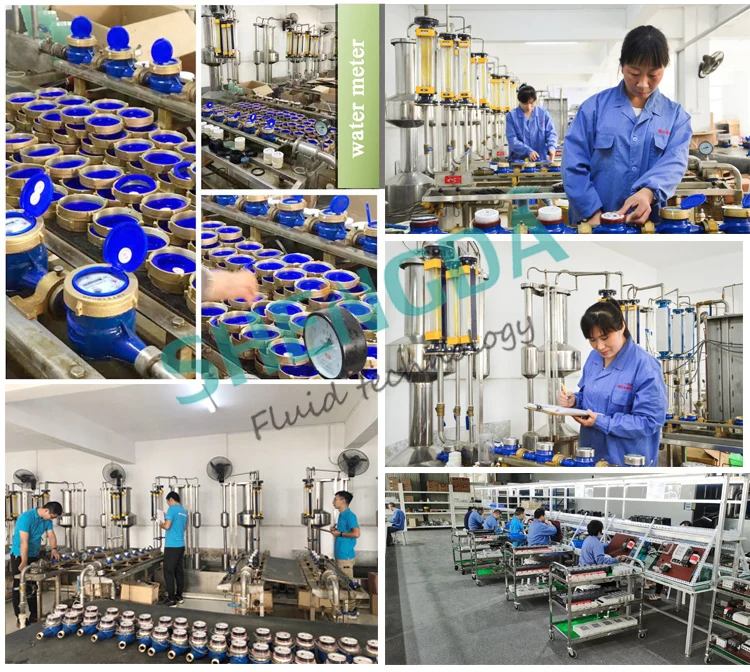

Water meter workshop:
Company Information:
Contact us to get more details:
| Tel: | +86 371 23366506 |
| Mobile: | +86 18603780816/18637817105 |
| Email: | admin@kfzhyb. com |
