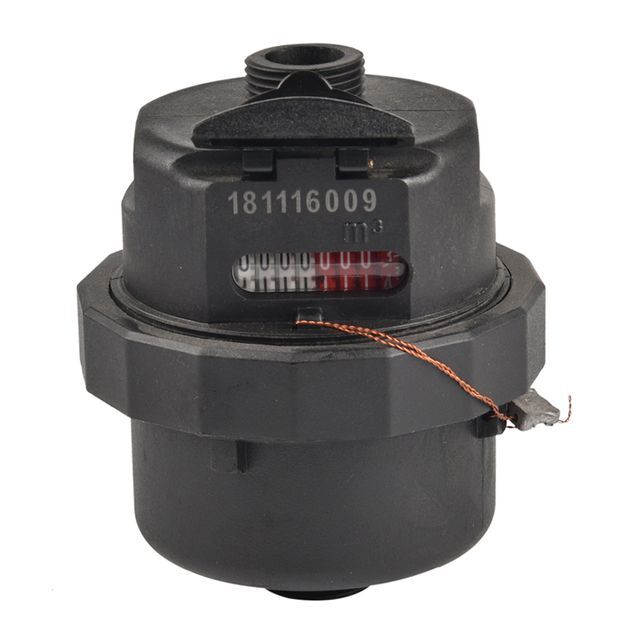

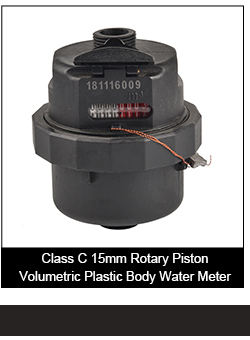

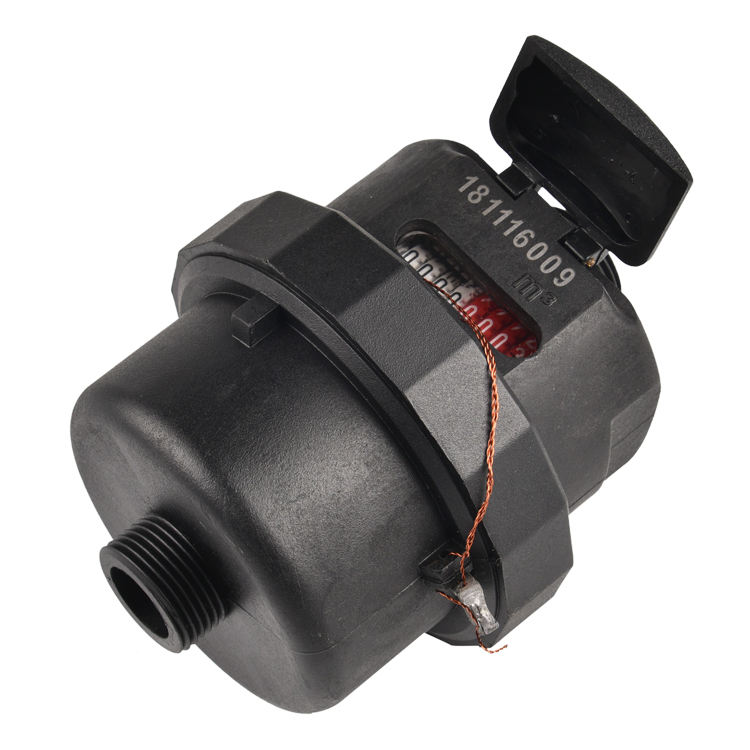

Class C 15mm rotary piston positive displacement water meter multi-nozzle

application:
- Measure the total amount of cold drinking water passing through the pipe.

feature:
--Positive flowmeter, piston rotation principle, in line with ISO4064 Class C (R160) standard;
--High sensitivity, accurate measurement even at low flow rate of 4L/h;
-- Optimum accuracy and performance at all times and in any location;
--Liquid-sealed register (LXH), vacuum-sealed (LXHG) for easy long-term clear reading.

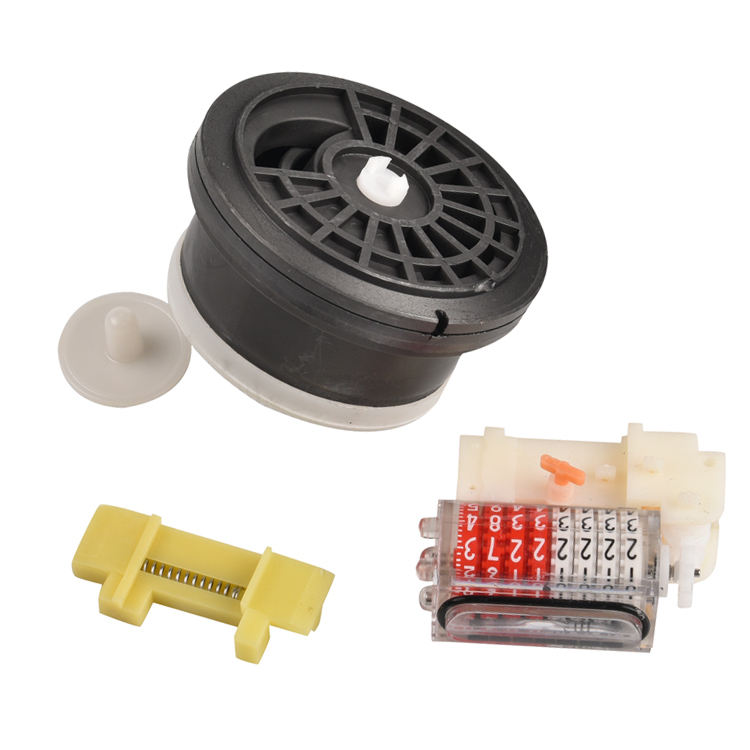

--The piston is made of high-quality materials to ensure stable and durable performance;
--High-quality material is corrosion-resistant
--Plastic connector nut
--Data output options: LXHG 10 L/Pulse, 100 L/Pulse or 1000 L/Pulse; LXH is 1 L/pulse.

Working conditions:
Water temperature: cold water meter 0.1°C~50°C.
Water pressure: ≤1.0Mpa
Comply with the standard: ISO4064 (GB/T778.1-1996) ISO4064 (GB/T778.1-2007)

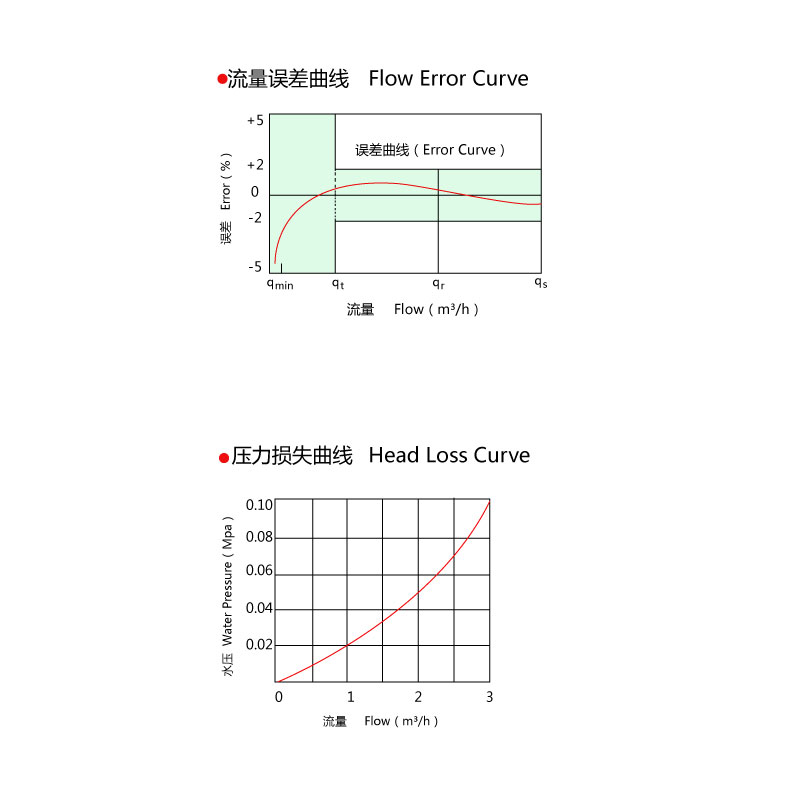

Maximum allowable error:
(1) The lower region from Qmin(Q1) to but not including Qt(Q2) is ±5%.
(2) The upper area Qt(Q2) to Qs(Q4) is ±2%;

Main technical specifications
According to ISO4064 (GB/T778.1-1996) standard

Comply with ISO4064 (GB/T778.1-2007) standard

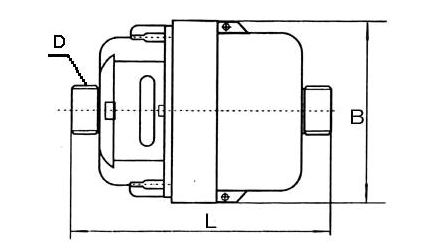

Dimensions and Weight
