High carbon steel wire drawing machine for sale

Supplier: Anping County Second Barbed Wire Factory
Region: Hebei, China
Contact: Ms qian li
Price: $5800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Inlet Diameter:	6.5mm;
Weight:	2.6 Ton;	Outlet Diameter:	3.8mm;
Weight:	2.6T;	Dimension:	4800mmx1400mmx1500mm;
Supply Ability:	25 Set/Sets per Month High carbon steel wire drawing machine for sale;	Product Name:	High carbon steel wire drawing machine for sale;
Output wire diameter:	1.8mm;	Dimension(LWH):	4850mmx1400mmx2150mm;
Power(W):	60KW;	Brand Name:	OLT;
Input wire diameter:	3.8mm;	Certification:	ISO9001;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Video technical support;	Packaging Detail:	High carbon steel wire drawing machine for sale package with plastic film outside for main machine,wooden box or carton box for main accessories and tools,or as customer demand.;
Motor:	55KW;	Warranty:	1 Year;
Speed:	400m/min;	Place of Origin:	Hebei China (Mainland);
Condition:	New;	Production capacity:	480KG/h;
Type:	560;	Voltage:	380V;
Port:	TIANJIN XINGANG;

Product Description

High carbon steel wire drawing machine for sale

High carbon steel wire drawing machine for sale

Wire drawing machine adopts PLC controller, it is easy to operate, one people can operate one production line.
Wire drawing machine include water seal cooling system, so the temperature of the machine will not to high, it is safe to the worker.
Wire drawing machine adopts frequency adjustable motor, the speed of the motor can be adjustable.

Detailed Images

The equipment is suitable for processing of 8mm-6mm wire rod and various kinds of metal wire, especially suitable for processing low carbon iron wire, galvanized iron wire, copper wire, aluminum wire, stainless steel wire, rubber hose steel wire, spring wire, welding wire, etc. Use customer bold type reducer, thickening box body, increase the bearing.

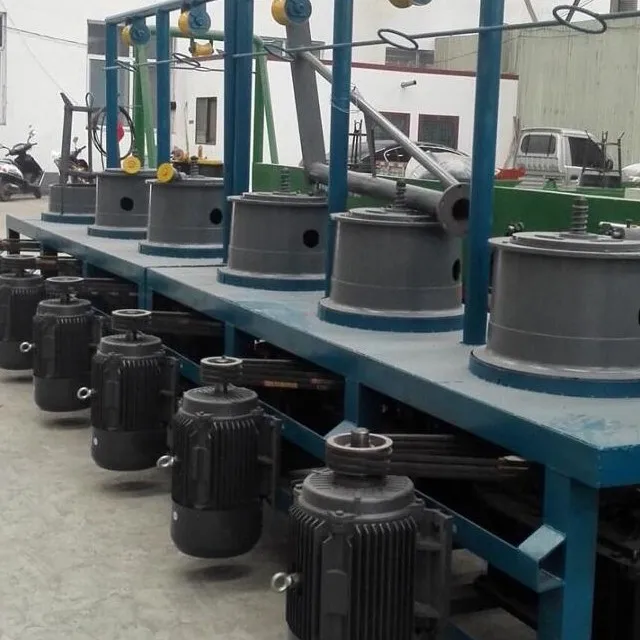

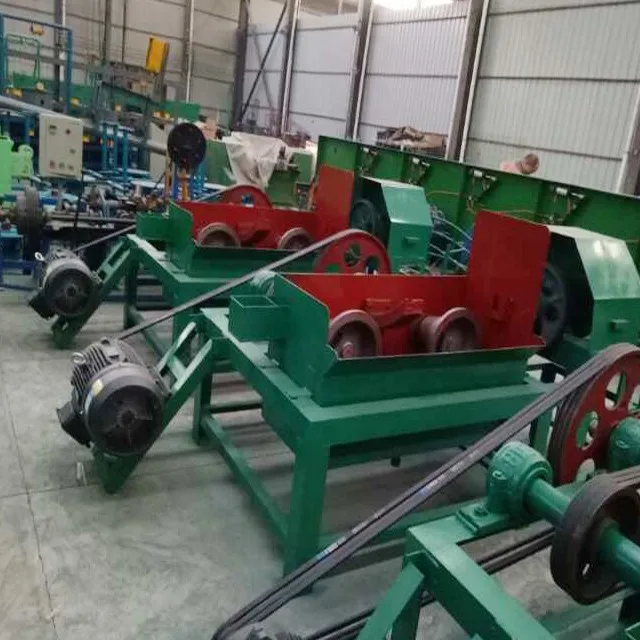

Pulling Pulley Type Drawing Machine
Type	Max.Inlet Diameter(mm)	Min.Outlet Diameter(mm)	Drawing Passage	Motor Power(kw)	Production Speed(m/s)	Production Capacity(T/24h)
OLT-4	6.5	3.8	4	15*4+1.5	100-120	12-15(3.8mm)
OLT-5S	4.0	2.0	5	7.5*5+1.5	150-200	5-6(2.0mm)

Straight line wire drawing machine can be used for the production of high, medium, low carbon and stainless steel coils, from 2 to 16 passes, with reel diameters from 300mm to 1200mm (currently mainly 300mm to 600mm). Main feature: Servo direct drive: reduce maintenance costs, reduce power consumption, spare parts, low noise

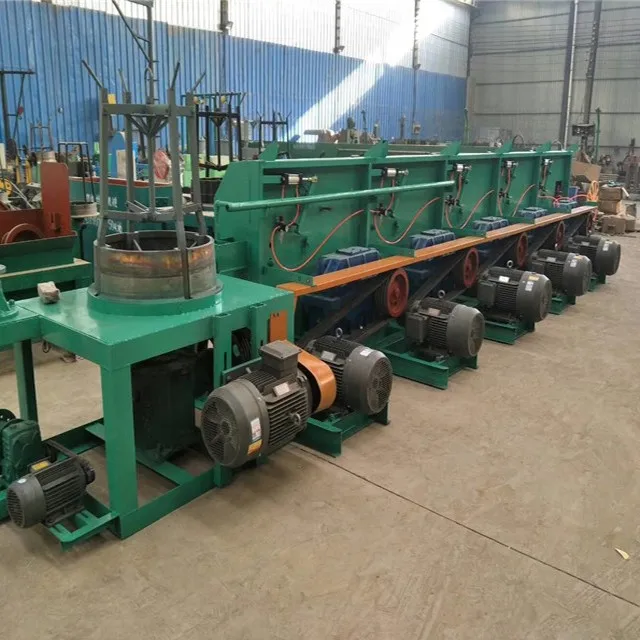

Straight Line Wire Drawing Machine
Type	ZJ560-12+SP2+LM+XB	ZJ560-9+SP2+LM+XB
Max.inlet wire diameter	Φ6.5mm	Φ6.5mm
Mold quantity	12	9
Drawing roller diameter	560mm	560mm
Max Speed	12m/s(AC frequency control)	9m/s(AC frequency control)
Min.outlet wire diameter	Φ1.2mm	Φ2mm
Max de-coiler weight	2.5T	2.5T
Max roller weight	1T	1T
Re-coiler inner diameter	Φ560mm	Φ560mm
Each roller motor	18.5KW	18.5KW
Voltage	380V 50Hz 240KVA	380V 50Hz 185KVA
Total motor	240kw/h	185kw/h

The equipment is suitable for processing thin specifications of the various kinds of metal wire, wire processed by the device has the surface brightness,non-stick surface lubricant,the characteristics of oily small ,especially suitable for wire welding. The finished silk conductive performance is good welding firmly. Used for galvanized ,picking easily when copper plating,zinc amount evenly on the easy to control,good finish.

Water Tank Wire Drawing Machine Paratemter
Type	Max.Inlet Diameter(mm)	Min.Outlet Diameter(mm)	Drawing Passage	Motor Power(kw)	Production Speed(m/s)	Production Capacity(T/24h)
SX-1	4.0-3.5	1.8-1.4	8-10	37+1.5	150-200	5-8
SX-2	2.0	0.5-1.0	10-12	15+2.2	280-350	1-1.5

High carbon steel wire drawing machine for sale

Wire drawing machine package with plastic film outside for main machine,wooden box or carton box for main accessories and tools,or as customer demand.
