Good quality Water Tank /Wet wire Drawing Machine with factory price

Supplier: Anping County Second Barbed Wire Factory
Region: Hebei, China
Contact: Ms qian li
Price: $6100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machine Quality:	Stablility;	Condition:	New;
Warranty:	1 Year;	Name:	Water Tank /Wet wire Drawing Machine;
Package Preview:	;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Credit card, Paypal;
Color:	Customized;	Port:	Tianjin Xingang;
Power(W):	60KW;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Spare parts:	Drawing Die;	After-sales Service Provided:	Online support,Field maintenance and repair service,Video technical support;
Certification:	ISO9001;	Video outgoing-inspection:	Provided;

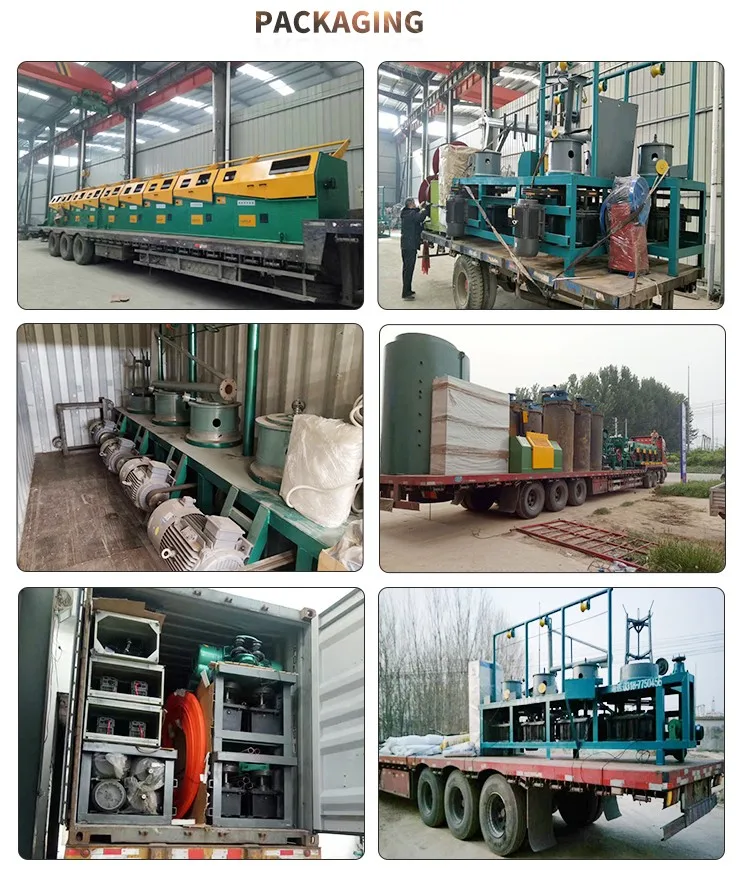

Packaging Detail:	Nude package for full container loading,wooden box for less container loading:;	Machinery Test Report:	Provided;
Weight:	1.2-2.3Ton;	Supply Ability:	20 Set/Sets per Month or more;
Brand Name:	OLT;	Core Components:	Bearing,Engine,Motor;
Place of Origin:	Hebei China;	Outlet Diameter:	0.8;
Showroom Location:	None;	Marketing Type:	New Product 2020;
Wire material:	Low Carbon Wire;	Inlet Diameter:	3.8mm,2.5;
Local Service Location:	None;	Warranty of core components:	1 Year;
Usage:	making the iron wire;	Key Selling Points:	High Productivity;
Quality:	ISO9001;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining,iron wire factory;

Product Description

Every year you can see our company at the trade fair.

We are manufacturer from Shijiazhuang of Hebei province near to Beijing .And our latest airport is Shijiazhuang Airport, welcome to visit us.

Factory price high low carbon steel straight line copper steel wire drawing machine

High Quality Cheap Price Full Automatic Wire Drawing Machine for Sale From China

Wire drawing machine adopts PLC controller, it is easy to operate, one people can operate one production line.
Wire drawing machine include water seal cooling system, so the temperature of the machine will not to high, it is safe to the worker.
Wire drawing machine adopts frequency adjustable motor, the speed of the motor can be adjustable.

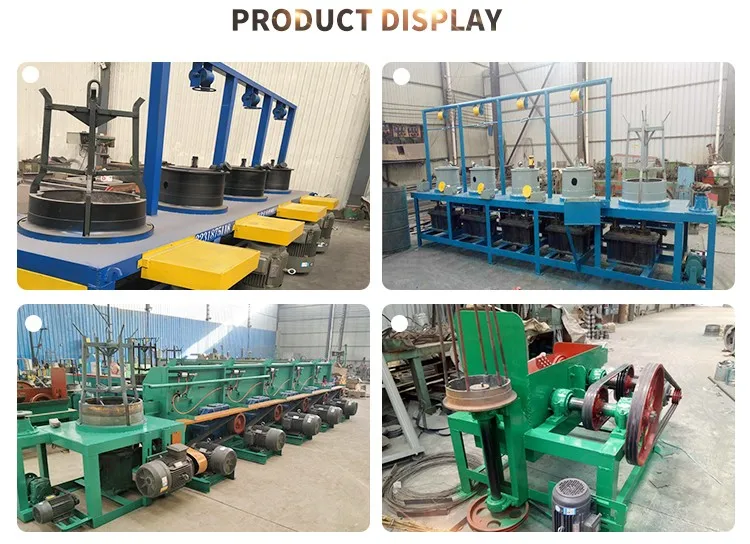

Detailed Images

The equipment is suitable for processing of 8mm-6mm wire rod and various kinds of metal wire, especially suitable for processing low carbon iron wire, galvanized iron wire, copper wire, aluminum wire, stainless steel wire, rubber hose steel wire, spring wire, welding wire, etc. Use customer bold type reducer, thickening box body, increase the bearing.

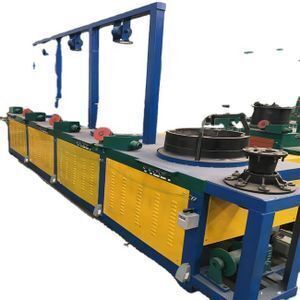

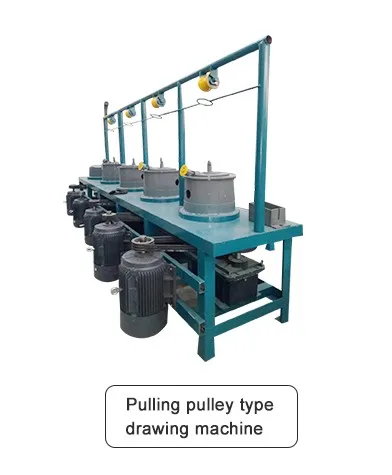

Pulling Pulley Type Drawing Machine
Type	Max.Inlet Diameter(mm)	Min.Outlet Diameter(mm)	Drawing Passage	Motor Power(kw)	Production Speed(m/s)	Production Capacity(T/24h)
OLT-4	6.5	3.8	4	15*4+1.5	100-120	12-15(3.8mm)
OLT-5S	4.0	2.0	5	7.5*5+1.5	150-200	5-6(2.0mm)

Straight line wire drawing machine can be used for the production of high, medium, low carbon and stainless steel coils, from 2 to 16 passes, with reel diameters from 300mm to 1200mm (currently mainly 300mm to 600mm). Main feature: Servo direct drive: reduce maintenance costs, reduce power consumption, spare parts, low noise

Straight Line Wire Drawing Machine
Type	ZJ560-12+SP2+LM+XB	ZJ560-9+SP2+LM+XB
Max.inlet wire diameter	Φ6.5mm	Φ6.5mm
Mold quantity	12	9
Drawing roller diameter	560mm	560mm
Max Speed	12m/s(AC frequency control)	9m/s(AC frequency control)
Min.outlet wire diameter	Φ1.2mm	Φ2mm
Max de-coiler weight	2.5T	2.5T
Max roller weight	1T	1T
Re-coiler inner diameter	Φ560mm	Φ560mm
Each roller motor	18.5KW	18.5KW
Voltage	380V 50Hz 240KVA	380V 50Hz 185KVA
Total motor	240kw/h	185kw/h

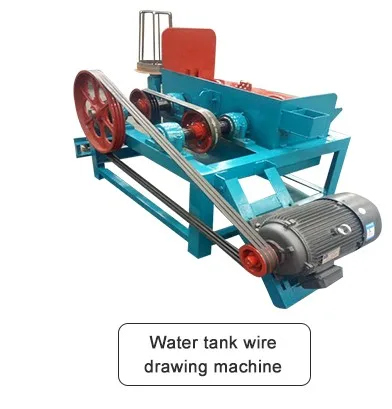

The equipment is suitable for processing thin specifications of the various kinds of metal wire, wire processed by the device has the surface brightness,non-stick surface lubricant,the characteristics of oily small ,especially suitable for wire welding. The finished silk conductive performance is good welding firmly. Used for galvanized ,picking easily when copper plating,zinc amount evenly on the easy to control,good finish.

Water Tank Wire Drawing Machine Paratemter
Type	Max.Inlet Diameter(mm)	Min.Outlet Diameter(mm)	Drawing Passage	Motor Power(kw)	Production Speed(m/s)	Production Capacity(T/24h)
SX-1	4.0-3.5	1.8-1.4	8-10	37+1.5	150-200	5-8
SX-2	2.0	0.5-1.0	10-12	15+2.2	280-350	1-1.5
